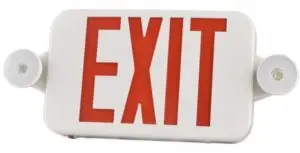

Slim Emergency LED Exit Signs Combo ESC02 Series

From $250

Product Overview

The ESC02 Series Slim Emergency Exit Sign Combo is a versatile and efficient emergency lighting solution designed for commercial and industrial environments. This all-in-one unit combines a high-visibility LED exit sign with powerful emergency lighting, providing clear directional guidance and essential illumination during power outages or emergencies. Engineered for reliability, energy efficiency, and ease of installation, the ESC02 emergency LED exit sign is an ideal choice for facility managers and business owners looking to enhance safety while minimizing operational costs.



Key Features

– Dual-function design: Exit sign and emergency lighting in one unit

– Ultra-bright white LED lamp heads (2 x 1W per head, 180 lumen output)

– Energy-efficient Red or Green LED exit sign illumination

– Universal mounting options with EZ-snap canopy for top or end mount

– Injection-molded thermoplastic ABS and PC housing with UL 94v-0 flame rating

– Available in White or Black finish

– Optional SALIDA faceplate for bilingual applications

– Remote load capability up to 2W



Certifications and Compliance

– UL924 certified

– UL listed for damp locations (0° – 40°C)

– Meets relevant emergency lighting standards



Technical Specifications

– Input Voltage: 120V-277VAC universal

– Battery: 3.6V 1000mAh Ni-Mh (standard models)

           3.6V 2000mAh Ni-Mh (models with remote heads)

– Emergency Operation: Minimum 90-minute illumination

– Charging Time: Fully recharges in 24 hours

– Housing Material: Thermoplastic ABS and PC

– Available Colors: White (standard), Black (optional)

– Letter Colors: Red (standard), Green (optional)

Applications

– Office buildings

– Retail spaces

– Educational institutions

– Healthcare facilities

– Hospitality venues

– Industrial warehouses

– Public buildings



Customization Options

– Choice of letter color: Red or Green

– Faceplate options: “EXIT” or “SALIDA”

– Housing finish: White or Black

– Remote load capability for additional emergency lighting coverage



Warranty

– Five-year warranty on all electronics and housing

– Three-year warranty on batteries



Ordering Information

Order Format: ESC02-[Letter Color][Letter Type]-[Voltage]-[Finish Color]-[Options]

Example: ESC02-G1-WH (Green letters, “EXIT”, 120-277V, White finish)

– Letter Color: G (Green) or R (Red)

– Letter Type: 1 (EXIT) or 2 (SALIDA)

– Voltage: Blank (120-277V)

– Finish Color: WH (White) or BL (Black)

– Options: RC (With Remote Load)



Installation and Maintenance

– Easy installation with universal J-Box mounting pattern

– Low maintenance requirements due to long-lasting LED technology

– Built-in test switch and charge indicator for easy maintenance checks



Why Choose the ESC02 Series?
  1. Compliance: UL listed and meets safety standards for peace of mind
  2. Efficiency: LED technology for lower energy consumption and reduced operational costs
  3. Versatility: Suitable for various mounting options and commercial applications
  4. Reliability: Durable construction and long-lasting performance in emergency situations
  5. All-in-One Solution: Combines exit sign and emergency lighting, simplifying installation and maintenance



Enhance your facility’s safety infrastructure with the ESC02 Series Slim Emergency Exit Sign Combo, offering a perfect blend of functionality, compliance, and modern design for your commercial space.
