What Is LED Linear High Bay Lighting?
LED linear high bay lighting refers to elongated, high-output luminaires engineered for illuminating large, high-ceiling spaces typically found in warehouses, manufacturing facilities, distribution centers, and industrial plants. Combining the durability and precision of traditional high bay fixtures with a linear form factor, these luminaires provide evenly distributed light over long work planes and aisles. The continuous shape and controlled optics of linear high bays create a uniform lighting environment that reduces shadows and enhances visibility across expansive areas.
Continuous overhead distribution strategies such as these are fundamental to many industrial lighting systems.
LED Linear High Bay Fixtures
In facilities that combine long, narrow aisles with expansive open zones, LED linear high bay lighting is often coordinated with wide-distribution area lighting and task-specific solutions to create a layered illumination strategy that supports both safety and operational efficiency.
For ceiling heights between 10 and 20 feet, review our LED Low Bay Lighting solutions designed for mid-height industrial spaces.
X-ATLHB
Brand: LightingX
Wattage Selectable and CCT Selectable, Sensor Ready, Marine-Grade Powder Coating
Frosted Fire-Rated Polycarbonate Lens,
304 Stainless Steel Hardwares, up to 68,000 LM @ 400W.; Prices start at $200.
LHB
Brand: Nebulite
2FT: 80/100/140W (Selectable)
2FT: 165/220W (Selectable)
4FT: 165, 225W (Selectable);
4FT: 325W; Prices start at $200.

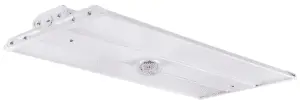

LHBV2
Brand: Ledsion
linear high bay; 2 CCT 4k/5K;
3Watts 110/165/220W; Built-in Sensor receptacle port; Motion Sensor Detection; Distance 40ft to 50ft; Up to 30,800 lumens;
Prices start at $200.

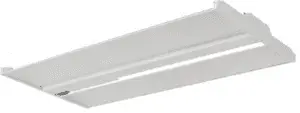

Skyline
Brand: ATG
2ft, 4ft; up to 42,000 lumens;
DLC Listed; 10 year warranty;
90/110/135/162/223-321W;
Prices start at $200.

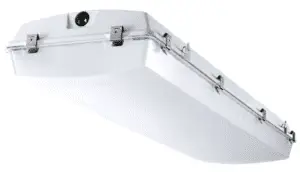

ILW
Brand: Atlas
NSF Industrial LED Linear
Wet Location; Tri-Proof;
NEMA4X, IP65, IP66 & IP67,
IP69K,(2ft only), NSF, 1500 PSI Hose Down, UL, cUL, DLC; 2ft, 4ft; Can be used Outdoors; USA made; 76/98/130/190W
Prices start at $400.

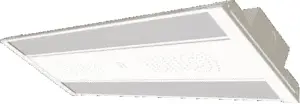

SD
Brand: James
2ft, 4ft; up to 42,240 lumens; DLC, Glass Free; Dimmable;
60/80/100/120/160/240/320W; Prices start at $200.
2LHB
Brand: Green Inova
UL/cUL and DLC Premium; up to 36,000 lumens; 80/100/150/200/310W;
Prices start at $200.
When Should Linear High Bay Lighting Be Used?
Linear high bay luminaires are specified when:
✔ Ceiling heights are above 15 feet
✔ Aisle widths are narrow or consistent
✔ Uniform illumination along length is required
✔ Task visibility and safety are priorities
✔ High lumen output is necessary without visual discomfort
Typical spaces include:
• Cold storage racking aisles
• Manufacturing assembly lines
• Large fulfillment center corridors
• Multi-bay industrial floors
• Retail warehouse zones with high shelving
When consistent illumination across long spaces is critical, linear high bays outperform traditional round high bays by maintaining uniformity and minimizing overlap shadows.
See which high bay fixture style works best for warehouse aisles, open floor plans, and manufacturing facilities.
Core Specifications & Performance Characteristics
Key performance attributes of LED linear high bay lighting include:
✔ Lumen output: typically 10,000–30,000+ lumens per fixture
✔ Efficacy: 130–170+ LPW
✔ Optical distribution: narrow, medium, or wide beam
✔ CCT: 4000K–5000K (common industrial ranges)
✔ CRI: 70–80+ for task clarity
✔ Driver performance: dimming and control compatibility
✔ Mounting options: chain, pendant, or surface mount
The elongated form factor and segmented LED arrays help create a continuous lighting effect ideal for long aisles and high-density shelving systems.
Industrial & Commercial Applications
LED linear high bay lighting is ideal for:
• Distribution centers and logistics facilities
• Automotive assembly and staging zones
• Large production halls with multi-aisle layouts
• Cold storage facilities requiring uniform task lighting
• Large retail warehouse interiors
The layout of these spaces — often with tall shelving, continuous corridors, or large open floors — benefits from linear optics that reduce pooled light effects and create a smooth illumination gradient
Understand how ceiling height and aisle layout influence Linear High Bay fixture selection and spacing.
Planning & Selection Considerations
When specifying linear high bay lighting:
✔ Evaluate mounting height vs beam spread to minimize dark zones
✔ Determine aisle width to match optical distribution
✔ Coordinate spacing between fixtures for even coverage
✔ Consider controls such as sensors or scheduling for energy optimization
✔ Balance lumen output with visual comfort to reduce glare
Lighting design software or photometric modeling is often used to plan coverage patterns and ensure consistent light levels meet workspace requirements.
Before selecting high bay fixtures for a warehouse or manufacturing facility, review the LED Linear High Bay Lighting Guide to compare fixture layouts, mounting heights, and lighting design considerations.
Comparison Table — Linear High Bay vs Round High Bay vs Linear Strip
| Attribute / Use | Linear High Bay | Round High Bay | Linear Strip Lights |
|---|---|---|---|
| Coverage Pattern | Elongated, aisle-optimized | Wide / central | Linear, corridor |
| Typical Mounting Height | 15–40 ft | 15–40 ft | 8–25 ft |
| Best Use Case | Long aisles & uniform planes | Large open area | Low/medium interior |
| Lumen Range | 10,000–30,000+ lm | 12,000–30,000+ lm | 2,000–10,000+ lm |
| Distribution Focus | Uniform longitudinal | Radial / broad | Corridor / near-field |
| Typical Environments | Warehouses, storage aisles | Factories, open floors | Support zones, aisles |
Compare beam distribution, ceiling height recommendations, and fixture spacing in our UFO vs Linear High Bay Lighting guide.
Technical Standards & Compliance Resources
Selecting LED linear high bay lighting requires alignment with applicable electrical and building codes for industrial spaces, including:
✔ UL or ETL listings
✔ Appropriate driver and component ratings
✔ Emergency egress coordination
✔ Control system compatibility
For more on how different lighting types fit within industrial lighting hierarchies, see our broader guides on lighting classification and design strategies. Ensuring compliance with performance standards and safety requirements enhances both functionality and long-term reliability.
Inline Buyer Q&A
How do I choose the right LED linear high bay for my facility?
Start with mounting height, ceiling configuration, aisle and rack layout, required light levels, fixture spacing, existing fixture locations, voltage, environmental conditions, and control requirements.
Linear high bays are particularly useful where elongated light distribution can provide uniform coverage across aisles, production areas, assembly spaces, and other rectangular work zones.
Should I use linear or UFO LED high bays?
The better choice depends on the geometry and lighting requirements of the space.
Linear high bays can work especially well over warehouse aisles, production lines, assembly areas, and spaces previously illuminated by fluorescent high bays. UFO high bays are compact fixtures frequently used in open industrial areas where their available optical distributions and mounting configurations suit the layout.
Some facilities benefit from using both fixture types in different areas.
Can LED linear high bays replace fluorescent or metal halide fixtures?
Often, yes. Linear LED high bays are commonly used to retrofit older fluorescent and HID high bay systems.
The replacement should be selected according to existing fixture output, mounting height, spacing, required illumination, optical distribution, voltage, and operating conditions rather than simply matching the wattage of the old fixture.
How many linear high bay fixtures will my facility need?
Fixture quantity depends on floor dimensions, mounting height, rack or equipment layout, fixture lumen output, optical distribution, required light levels, and uniformity objectives.
Existing fixture counts can provide useful information for a retrofit, but they should not automatically determine the new LED layout.
Do I need a photometric layout for linear high bay lighting?
A photometric layout is recommended for larger warehouses, manufacturing facilities, distribution centers, hangars, and other projects where light levels and uniformity are important.
Photometric modeling can evaluate fixture quantity, spacing, mounting height, predicted illumination, and uniformity before installation.
Need Help Selecting LED Linear High Bay Lighting?
The right linear high bay system depends on more than wattage. Mounting height, fixture spacing, aisle configuration, equipment and rack locations, optical distribution, required light levels, controls, and environmental conditions all affect lighting performance.
Whether you’re upgrading a warehouse, distribution center, manufacturing facility, assembly area, aircraft hangar, or other high-ceiling commercial or industrial space, our lighting specialists can help evaluate fixture output, layout, controls, and photometric requirements.
👉 Call 1-844-533-7767 to discuss your LED linear high bay lighting project.
Frequently Asked Questions
What is LED linear high bay lighting?
LED linear high bay lighting uses elongated LED luminaires designed to provide broad, uniform illumination across commercial and industrial spaces with elevated ceilings.
Their rectangular form factor and available optical distributions can make them particularly useful for warehouses, manufacturing areas, distribution centers, assembly spaces, and other applications requiring consistent illumination across elongated work areas.
Where are linear high bay lights commonly used?
Common applications include:
- Warehouses and distribution centers
- Manufacturing facilities
- Assembly and production lines
- Aircraft hangars
- Big-box retail facilities
- Storage and rack areas
- Commercial and industrial spaces with elevated ceilings
The appropriate fixture depends on mounting height, layout, required illumination, environmental conditions, and the activities performed within the space.
How do LED linear high bay lights differ from UFO high bay lights?
Linear high bays have an elongated form factor that can be well suited to aisles, production lines, rack areas, and rectangular work zones.
UFO high bays use a compact round form factor and are commonly used across open industrial and commercial spaces.
Neither fixture style is universally better. Fixture output, optics, mounting height, spacing, site geometry, and required light levels should determine which configuration is appropriate.
Are LED linear high bay lights energy efficient?
LED linear high bays can provide substantial energy savings compared with many older fluorescent, metal halide, and other HID systems.
Actual savings depend on existing fixture wattage and quantity, replacement LED wattage, operating hours, required illumination, and lighting controls.
Can linear high bay lights be dimmed or controlled?
Many commercial LED linear high bays are available with 0–10V dimming and may support occupancy sensors, daylight harvesting, scheduling, or networked lighting-control systems.
Control compatibility varies by fixture and driver, so required control capabilities should be identified before equipment is specified.
What color temperature is best for linear high bay applications?
There is no single color temperature required for every linear high bay application.
4000K and 5000K are commonly used in commercial and industrial facilities, but the appropriate choice depends on the work environment, visual tasks, existing lighting, owner preferences, and project requirements.
Can LED linear high bays be used in high-temperature or demanding industrial environments?
Only when the fixture is specifically rated for those operating conditions.
Ambient-temperature limits, moisture and dust exposure, vibration, corrosion, washdown conditions, and other environmental factors should be evaluated before selecting a fixture. Specialized high-temperature or industrial fixtures may be required where standard linear high bays are unsuitable.
