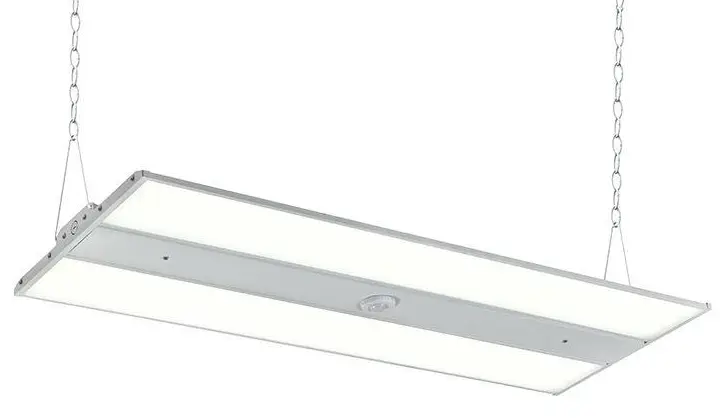

LHB-LED Linear High Bay

From $200

Product Overview

The NB-LHB LED Linear High Bay is a high-performance, energy-efficient lighting solution designed for industrial, commercial, and other high-ceiling applications such as warehouses, gyms, barns, and supermarkets. This linear high bay is an ideal replacement for fluorescent high bays, offering superior illumination for aisles, lanes, and hallways. With a 0-10V dimmer, you can easily adjust the brightness to suit your specific needs and save energy.


Key Features

– Selectable wattages for 2FT and 4FT models

– High efficacy: 130 lm/W

– High CRI: >80

– Available CCT: 3500K, 4000K, 5000K

– Long lifespan: 50,000 hrs (L70)

– IP20 rated

– Power factor: >0.95

– Dimming options: 0-10V & 12V Aux, Bluetooth Mesh Controls

– Daylight sensor and 90-minute emergency backup options


Certifications and Compliance

– DLC listed

– ETL, RoHS, UL, and CE compliant

– Suitable for operating temperatures between -22°F and 122°F

Technical Specifications

– Input voltage: 100-277V

– Input frequency: 50/60 Hz

– LED light source: SMD 3030

– Beam angle: 120°

– Construction: Galvanized steel body with powder coat white finish and diffused polycarbonate formed lens



– Industrial and commercial spaces

– Warehouses

– Gyms

– Barns

– Supermarkets

– Any location with high ceilings requiring efficient, high-quality lighting


Customization Options

– Wattage selection for 2FT and 4FT models

– CCT: 3500K, 4000K, or 5000K

– Mounting options: Surface mounted, suspension chain (included), conduit pendant mount

– Accessories: Wire guards

– Sensor and emergency options: ANT-6 daylight sensor, RC100 programming tool, EM 90-minute battery backup, Bi-level PIR sensor



– 5-year warranty


Ordering Information

To order, specify the following:

– Series: NB-LHB

– Wattage: 80W/2FT, 100W/2FT, 140W/2FT, 165W/2FT, 220W/2FT, 165W/4FT, 225W/4FT, 325W/4FT

– CCT: 35 (3500K), 40 (4000K), 50 (5000K)

– Optics: 120° beam angle

– Voltage: V (100-277V)

– Finish: White (default)


Example: NB-LHB-80W-2FT-30


For 4FT models or any special requirements, please contact our sales team for more information.
