Class 1 Division 1 LED Lighting (C1, D1) is used in hazardous location areas to prevent high voltage, high amperage equipment from producing a source of ignition. A heavy-duty luminaire surrounds the spark-producing components so that if vapors or gas leak in, and are ignited, the explosion is contained. For use in general industrial and general marine applications where vapor proof or waterproof fixtures are mandated. See Where To Use Explosion Proof Lighting LED
Class 1 – Hazardous locations or areas where flammable gases or vapors are/could become present in concentrations suitable to produce explosive and/or ignitable mixtures. Class 1 locations are further divided into 2 divisions:
Class 1 Div 1: There are three different situations that could exist to classify an area as a Class 1 Division 1 location.
- When the atmosphere of an area or location is expected to contain explosive mixtures of gases, vapors, or liquids during normal working operations. (This is the most common C1, Div 1)
- An area where ignitable concentrations frequently exist because of repair or maintenance operations.
- The release of ignitable concentrations of gases or vapors due to equipment breakdown, while at the same time causing electrical equipment failure.
Class 1 Div 1 LED Lighting – HA03 Mounting Options; Ceiling mount, 25° Stanchion mount, Wall bracket, Pendant mount,Trunnion mount; Suitable for Wet and Marine Locations; available in 30/40/50/60/70W; up to 9,800 lumens; Call for today’s special price! |
|

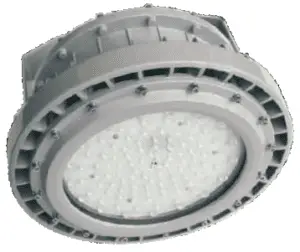

Class 1 Div 1 LED Lighting – C Series High Bay, Floodlight; Optional Dome Reflector, Angle Reflector;Up to 42,000 lumens @ 300W; 100-277/200-480VAC; Surface mounting and pendant installations; 16″ x 12.7″; Certifications; ETL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0; Class 1, Divi 1, Groups C,D; Class 1, Division 2 Groups A,B,C,D; available in 60/80/100/120/150/180/200/240/300W; Call for today’s special price! |
|
Industrial Explosion Proof Lighting – D Series High By, Floodlight; Up to 29,700 lumens @ 220W; 100-277/200-480VAC; Wide and narrow optics for uniform illumination; 15.7″ X 11.3″ X 10″; ETL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0; Class 1 Division 1 Groups C,D; Class 1 Div 2 Groups A,B,C,D; available in 20/40/60/80/100/120/150/200W/220W; Call for today’s special price!
|
|
LED Explosion Proof Lighting – Type E Floodlight; Choose Spherical Glass Diffuser or Flood Light, Optional Wire Guard, Dome Reflector, Angle Reflector; Up to 19,500 lumens @ 150W; 100-277/200-480VAC; 14″ X 12.3″; ETL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0; available in 100/150W; Call for today’s special price! |
|
Class 1 Div 1 LED Lighting – KLE1017 High Bay, Floodlight; Up to 22,000 lumens @ 200W; 100-277V; Wide and narrow optics for uniform illumination; ETL: Mounts; Ceiling, Floor, Pole, Wall; available in 85/100/120/150/185/200W; Call for today’s special price! |
|
Class 1 Div 1 LED Lighting – G Series Wall Mount, Low Bay; Choose Spherical Glass Diffuser or Flood Light, Optional Wire Guard, Dome Reflector, Angle Reflector; Also called LED Explosion Proof Vapor Tight Jelly Jar; Up to 5400 lumens @ 40W; 100-277/200-480VAC; 10 year warranty; 12.2″ X 6.8″; ETL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0; available in 10W/20W/30W40W; Call for today’s special price!
|
|
Hazardous Location Linear Lighting – Type I Paint spray booth, Low Bay; 2ft, 4ft Linear fixtures; UL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0; Class 1 Division 1 Groups C,D;Class 1 Division 2, Groups A,B,C,D; Class 2 Division 1 Groups E,F,G;; up to 12,660 lumens @ 100W; available in 30W/40W/50W/60W/100/120W; Call for today’s special price!
|
|
Class 1 Div 1 – IR4 Paint spray booth approved; LED linear – 2ft, 4ft models; Corrosion resistant, marine grade, copper-free aluminum, heavy gauge extruded reflectors with high gloss reflective finish; Available in 17/ 35/40/54/60W; Made in USA; Call for today’s special price! |
|
|
Explosion Proof Exit Sign – Exit Type J Explosion Proof emergency exit sign with battery back-up; ETL: UL1598 / UL1598A / UL844 / CSA C22.2 No.137 / No. 250.0; Class 1 Division 1 Groups C,D; Class 1 Division 2 Groups A,B,C,D; available in 3W/7W/11W; Call for today’s special price!
|
Portable Explosion Proof Lighting – Drop Light Type L Lightweight and reasonable size; Class 1 Division 1, Swivel hook for hanging and hands-free operation; Portable and be moved easily; Plug into standard outlets; Battery back up for emergency situations; Changeable light source and battery to make replacement super easy; available in 5/7/9/10/15/20/30W; Call for today’s special price! |
|
Explosion proof LED lighting for hazardous areas is a must-have for industries that operate in hazardous locations that deal with flammable gases and ignitable concentrations of gases or vapors. Class 1 Division 1 lighting requirements need to be carefully observed to ensure safety in these hazardous areas.
Hazardous locations are areas where the presence of flammable gases, vapors, or dust particles can cause an explosion or fire. Industries such as oil and gas, chemical, pharmaceutical, and mining are among those that operate in hazardous locations. These industries need to comply with strict safety regulations set by the National Electric Code (NEC) to ensure a safe working environment. One such regulation is the use of explosion proof light fixtures for hazardous areas.
Class 1 Div 1 lighting is designed to prevent the ignition of flammable gases or dust particles in hazardous areas. These lights are built with a rugged construction that can withstand harsh environments and prevent the release of sparks or heat that could ignite flammable substances. LED lights are ideal for hazardous areas because they produce less heat and consume less energy than traditional lighting sources, making them more efficient and cost-effective.
Class 1 Division 1 lighting requirements are a set of regulations that specify the design, installation, and use of lighting in hazardous locations. These requirements are set by the NEC and are designed to prevent explosions or fires caused by electrical equipment. Class 1 Div 1 fixtures are required in areas where hazardous substances are present continuously or intermittently. The lighting fixture must be designed to withstand the conditions in the hazardous area and must be installed in a manner that prevents sparks or heat from escaping.
Flammable gases are one of the most common hazards in hazardous locations. These gases can ignite with just a spark or heat source, causing an explosion or fire. LED explosion proof lighting is designed to prevent the release of sparks or heat that could ignite flammable gases. These lights are built with a rugged construction that can withstand harsh environments and prevent the release of sparks or heat that could ignite flammable substances.
In conclusion, industries that operate in hazardous locations need to comply with strict safety regulations to ensure the safety of their workers and equipment. Explosion proof LED lighting for hazardous areas is a crucial component of these safety measures. Class 1 Division 1 lighting requirements need to be observed to ensure the safe installation and use of lighting in hazardous areas. Flammable gases are one of the most common hazards in hazardous locations.
FAQs About Class 1 Division 1 Lighting FixturesClass 1 Division 1 lighting fixtures are lighting fixtures used in hazardous work environments where the presence of flammable gases and vapors or combustible dusts is possible. These fixtures are certified by the local and national authorities, and they must meet certain standards in order to be classified as Class 1 Division 1 fixtures. FAQs About Class 1 Division 1 Lighting Fixtures Q1: What types of hazardous locations are suitable for Class 1 Division 1 fixtures? • Combustible dusts or fibers that could create a fire or explosion risk; Q2: What are the requirements for Class 1 Division 1 lighting fixtures? • The fixture must be constructed of approved materials that won’t add to the risk of ignition; Q3: What is class 1 division 1 lighting? |
At LED Pros Worldwide we aim to make conditions safer for all involved. We have many industrial lighting fixtures that you can select from that meet or exceed the standards that exist today so that you can outfit your facility with whatever you may need. Look at the selection we have available on our website so you can see what fits your business the best. We provide thorough descriptions and product specifications for you so you can understand what each fixture offers. If you have any questions or you would like a price quote or want to place an order with us, please call us toll-free at (844) 533-7767 and speak with one of our representatives. We will be glad to assist you and offer you any recommendations you may need so you get the safest lighting.
