Product Overview

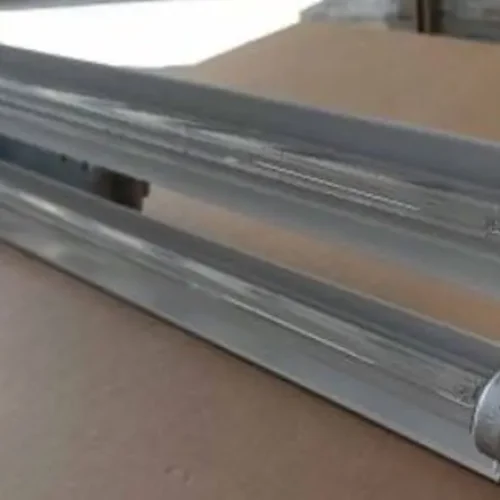

The IR4 Series is a highly durable, explosion-proof linear solution designed for hazardous locations, paint spray booths, and marine environments. Certified for Class 1, Division 1 (Groups C & D) and Class 2, Division 1 & 2 (Groups E, F, G) locations, this series offers a reliable and efficient lighting option for the most demanding industrial applications. The IR4 Series is available in various sizes and lamp configurations to suit your specific needs.
Manufactured in the USA, the IR4 Series is a heavy-duty explosion-proof linear LED luminaire designed for Class I, Division 1 hazardous locations, including paint spray booths, marine environments, and demanding industrial applications.
Key Features
– Corrosion-resistant, marine-grade, copper-free aluminum construction with heavy-gauge extruded reflectors and high-gloss reflective finish
– Stainless steel bolts for enhanced durability
– Explosion-proof, impact and heat-resistant glass tubes to protect lamps
– Versatile mounting arrangements, including standard end mounting and pendant mounting
– Field-replaceable LED circuit boards and drivers with quick disconnects for easy maintenance
– Convenient wiring access through screw-cap covers
– Factory-sealed for added protection
Certifications and Compliance
– UL Listed for Class 1, Division 1, Groups C & D
– UL Listed for Class 2, Division 1 & 2, Groups E, F & G
– Complies with UL 844 for Hazardous Locations
– Complies with UL 924 for Emergency Lighting
– Complies with UL 1598A for Marine Outside Type
– NEMA 4X rated
– IP66 rated
– ABS certified
– Paint spray booth approved.
Technical Specifications
– Light Source: 17W, 35W, 40W, 54W, 60W, or LED (40W LED array, 4000 nominal lumens on 4-foot strip)
– Power Source: 120-277V, 50/60 Hz (UNV)
– Driver Amp Draw: 120 volt – 0.80A, 277 volt – 0.35A
– Ambient Operating Temperature: 40°C maximum
– Weight: 2 foot – 50.0 lbs, 4 foot (2 tube) – 60.0 lbs, 4 foot (4 tube) – 120 lbs
Applications
– Hazardous locations (Class 1, Division 1, Groups C & D; Class 2, Division 1 & 2, Groups E, F, G)
– Paint spray booths
– Marine environments
– Industrial facilities requiring explosion-proof lighting
Customization Options
– Nominal Length: 2 foot (2 tube), 4 foot (2 tube), or 4 foot (4 tube)
– Light Source: 17W, 35W, 40W, 54W, 60W, or LED
Warranty
The IR4 Series comes with a 5-year warranty on LED components.
Ordering Information
To order the IR4 Series, please contact our sales team with your specific requirements, including the desired nominal length and light source.
