Commercial Clam Shell Pole Base Covers

What are clam shell pole base covers?

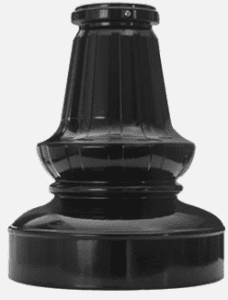

Clam shell pole base covers are sectional covers designed to assemble around the base of an installed light pole.

They conceal the base plate, anchor bolts, nuts, washers, and related mounting hardware while providing a more finished appearance around the pole foundation.

What are clam shell pole base covers used for?

They are commonly used on commercial, municipal, campus, parking-lot, multifamily, and other outdoor light-pole installations where the anchor-bolt assembly would otherwise remain exposed.

They are particularly useful for retrofitting existing poles.

Why are they called clam shell base covers?

The name refers to their sectional construction.

Instead of sliding a one-piece cover over the pole, separate sections fit around the existing base and are joined together.

This allows installation after the pole is already standing.

Can clam shell base covers be installed on existing poles?

Yes, when the cover dimensions and configuration are compatible with the existing installation.

Their sectional construction is specifically useful for retrofit applications because pole removal is generally unnecessary simply to position the cover around the base.

Always verify dimensions and installation requirements for the particular cover.

Do I need to remove the light pole to install a clam shell base cover?

Generally, no.

A primary advantage of the clam shell design is its ability to assemble around an installed pole.

However, adequate clearance and compatible dimensions are still required.

Are clam shell covers only for square light poles?

No.

Base-cover designs can be available for different pole and base configurations.

Selection should be based on the actual pole shape, dimensions, base plate, anchor-bolt assembly, and desired finished appearance.

How do I measure for a replacement pole base cover?

Measure the complete area the cover must enclose.

Important dimensions can include pole width or diameter, base plate width and depth, anchor-bolt projection, nut and washer clearance, and required cover height.

For retrofit projects, photographs taken from several angles can help document the existing installation.

Does pole height determine the size of the base cover?

No.

Two poles of similar height can have different shaft dimensions, base plates, anchor-bolt patterns, foundations, and mounting hardware.

Base-cover sizing should be determined from the dimensions at the pole base.

Can clam shell covers hide exposed anchor bolts?

Yes, when properly sized.

One of their primary functions is to conceal the visible anchor-bolt, nut, washer, and base-plate assembly.

The cover must provide sufficient internal clearance for the existing hardware.

Do pole base covers protect anchor bolts from corrosion?

A cover can reduce direct exposure to some debris and environmental conditions, but it should not be treated as a structural corrosion-protection system.

Anchor-bolt corrosion resistance depends on the hardware, materials, coatings, drainage, installation environment, and maintenance.

The base cover primarily provides enclosure and appearance.

Do pole base covers improve pedestrian safety?

Covering exposed mounting hardware can provide a cleaner finished surface around a pole base and can reduce direct pedestrian contact with protruding hardware.

However, a base cover should not be presented as eliminating trip hazards or making an installation inherently safe.

Pole placement, foundation design, surrounding pavement, cover dimensions, and site conditions also matter.

Do clam shell base covers affect pole stability?

The base cover itself is generally a nonstructural component.

The pole’s structural support comes from the engineered pole, base plate, anchor bolts, foundation, and associated structural components.

A decorative base cover should not be used to support, reinforce, repair, or modify the structural pole connection.

Can a base cover repair damaged anchor bolts or a damaged pole base?

No.

A base cover is not a structural repair.

Damaged, loose, severely corroded, or otherwise questionable anchor bolts, base plates, foundations, or pole components should be evaluated separately before they are concealed.

Are clam shell pole base covers weather resistant?

Base covers intended for outdoor light poles are available in materials and finishes designed for exterior exposure.

Actual resistance to UV, moisture, temperature, impact, corrosion, and other conditions depends on the specific product and material.

Verify the manufacturer’s specifications for the intended environment.

Can pole base covers be used in coastal environments?

Potentially.

Coastal environments can increase exposure to salt and corrosion, so the cover material, fasteners, finish, and underlying pole-base components should be evaluated for those conditions.

A cover alone does not provide corrosion protection for the complete structural assembly.

Are clam shell base covers used on parking lot poles?

Yes.

Parking lots are a common application because many anchor-base light poles have visible base plates and anchor-bolt assemblies.

They can also be used on campuses, commercial properties, municipalities, multifamily developments, pedestrian areas, and other exterior sites.

Can clam shell covers be used on decorative light poles?

Potentially.

The dimensions, shape, architectural style, and attachment method need to be compatible with the decorative pole and surrounding site.

Base covers can provide both functional concealment and an architectural finishing element.

Can I use a clam shell cover from a different manufacturer than the pole?

Potentially.

For retrofit projects, dimensional compatibility is generally more important than matching the original pole manufacturer.

Verify the pole, base plate, anchor bolts, clearances, cover dimensions, and attachment method before ordering.

Are pole base covers required by code?

There is no universal requirement that every commercial light pole have a decorative base cover.

Requirements can vary according to project specifications, local codes, accessibility considerations, property standards, and other jurisdictional requirements.

Verify requirements for the particular project.

Can clam shell covers be painted or matched to the pole?

Available finishes and field-finishing options depend on the cover material and manufacturer.

Where appearance is important, specify the desired finish when selecting the cover rather than assuming every material accepts the same coating system.

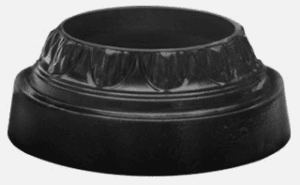

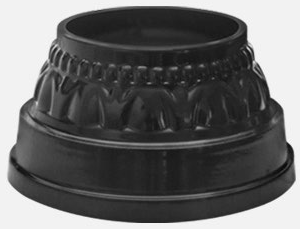

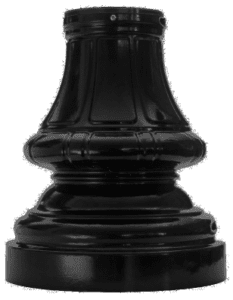

What is the difference between a clam shell and slip-over pole base cover?

A clam shell cover assembles around an existing pole base, making it especially useful for retrofit installations.

A slip-over cover is generally positioned over the pole or base during an installation sequence that allows the cover to be placed before access is restricted.

The better choice depends on whether the pole is already installed and the configuration of the base.
