Selecting the correct pole base cover size is an important step in achieving a clean, finished outdoor lighting installation. Whether upgrading an existing parking lot, improving a campus pathway, enhancing a streetscape, or renovating an HOA community, the cover must fit around the pole, base plate, anchor bolts, and other mounting components.
An incorrectly sized cover can leave mounting hardware exposed, interfere with installation, or appear disproportionate to the pole and foundation. Measuring the complete pole-base assembly before selecting a cover helps identify options that can accommodate the existing or proposed installation.

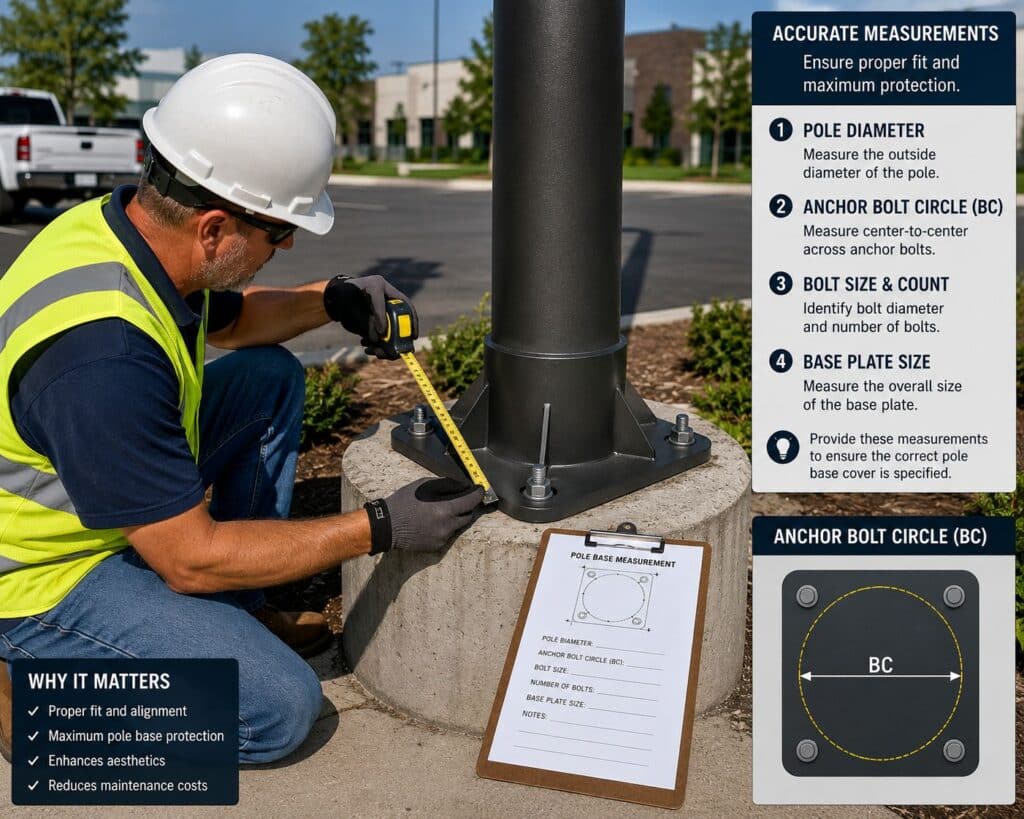

Proper measurements help ensure accurate pole base cover selection and installation.
Measuring an Existing Light Pole for a Base Cover?
For retrofit projects, accurate field measurements and photos can help identify pole base covers that fit around the existing pole, base plate, anchor bolts, and foundation.
Explore our Clam Shell Pole Base Covers, Request a Quote, or call 844-533-7767 with your pole dimensions, base-plate dimensions, anchor-bolt measurements, concrete-base dimensions, desired cover height, quantity, and photos of the existing pole base when available.
Why Proper Sizing Matters
Pole base covers are designed to conceal:
- Anchor bolts
- Base plates
- Foundation hardware
- Wiring access areas
- Structural connections
Selecting the proper dimensions ensures the cover completely conceals exposed hardware while maintaining a clean, finished appearance.
Benefits of proper sizing include:
- Improved aesthetics
- Easier installation
- Better fit and finish
- Professional appearance
Base Plate Dimensions
Measure the widest dimensions of the pole base plate.
For square base plates:
- Measure length
- Measure width
For round base plates:
- Measure diameter
The cover must be large enough to completely conceal the base plate.
Anchor Bolt Measurements
Record the location and projection of the anchor bolts and mounting hardware surrounding the pole.
Depending on the installation, useful measurements may include:
-
Distance between anchor bolts
-
Bolt-circle diameter when applicable
-
Height the bolts, nuts, and washers project above the base plate
-
Widest point of the anchor-bolt assembly
These measurements help determine whether the inside dimensions of the cover provide sufficient clearance around the mounting hardware.
Foundation Size
Verify the dimensions of the concrete foundation surrounding the pole.
Measure the width, length, or diameter of the concrete foundation where it meets the pole base. Also note whether the foundation extends above the surrounding pavement or grade.
The relationship between the foundation, base plate, mounting hardware, and proposed cover should be evaluated together because an oversized or irregular foundation can interfere with cover placement.
Understanding Cover Height
Cover height should be selected according to the dimensions of the pole-base assembly and the desired finished appearance.
The cover should be tall enough to accommodate the base plate, anchor bolts, nuts, washers, conduit, and other components that must remain inside the enclosure. Decorative proportions and the relationship between the cover, pole shaft, and concrete foundation may also influence the desired height.
Do not select cover height from property type alone. Measure the existing or proposed installation and compare those dimensions with the inside dimensions of the available cover.
Clamshell vs Slip-Over Sizing Considerations
Sizing requirements are generally similar between styles, but installation methods differ.
Our Clamshell vs Slip-Over Pole Base Covers guide explains how each design accommodates retrofit and new construction projects.
Clamshell Covers
- Open around existing poles
- Ideal for retrofits
- Accommodate installed poles
- Easy field installation
Slip-Over Covers
- Installed before pole erection
- Common in new construction
- Require planning during installation
Property owners and contractors often begin by reviewing our Clam Shell Pole Base Covers guide to understand the various styles available for retrofit and new construction lighting projects.
Decorative Cover Sizing Considerations
Decorative covers may require additional clearance due to architectural shapes and profiles.
Factors include:
- Fluted designs
- Decorative trim details
- Architectural contours
- Custom finishes
For projects focused on aesthetics, our Decorative Light Pole Base Covers article explores available styles and design options.
Marine-Grade Finishes and Environmental Considerations
Sizing is only one part of selecting the proper cover.
Environmental exposure should also be considered.
Properties near:
- Oceans
- Bays
- Lakes
- Rivers
- Marinas
- Irrigation-heavy landscapes
often benefit from marine-grade powder-coated finishes.
These finishes help protect covers from:
- Corrosion
- Salt exposure
- Moisture
- Fertilizers
- Humidity
For waterfront developments and premium commercial properties, both proper sizing and finish selection contribute to long-term performance.
Common Sizing Mistakes
Avoid these common measurement errors:
Measuring Pole Circumference Instead of Diameter
Most cover manufacturers specify diameter dimensions.
Ignoring Anchor Bolt Clearance
Bolt projections may require additional interior space.
Underestimating Foundation Size
Large foundations can interfere with cover installation.
Selecting Height Based Solely on Appearance
Cover height should adequately conceal hardware while maintaining proportion with the pole.
Field Measurement Checklist for Existing Pole Bases
Before requesting a quote for an existing pole installation, record:
-
Pole shape
-
Pole diameter or outside dimensions
-
Base-plate dimensions
-
Anchor-bolt locations
-
Anchor-bolt projection
-
Nut and washer height
-
Concrete-base width, length, or diameter
-
Concrete-base height above grade
-
Desired cover height
-
Preferred style and finish
-
Quantity
Take several photographs showing the complete pole base, including the pole shaft, base plate, anchor bolts, mounting hardware, and surrounding concrete foundation.
Including a tape measure or ruler in the photographs can also help document dimensions, but written measurements should still be provided.
Inline Buyer Q&A
How do I measure a light pole for a base cover?
Measure the pole shape and dimensions, base plate, anchor-bolt locations and projection, concrete foundation, and required cover height. For an existing pole, provide photographs when available.
Can I install a cover on an existing pole?
Yes. Clamshell covers are well suited to many retrofit applications because the split design can assemble around an existing pole without requiring pole removal solely to install the cover.
What if I do not know the pole manufacturer?
Most covers can be selected using field measurements rather than manufacturer information.
How much larger should the cover be than the base plate?
The cover should provide sufficient clearance to fully conceal the base plate and anchor bolts.
Are decorative covers available in different sizes?
Yes. Decorative covers are manufactured in various diameters, heights, and architectural styles.
What clearance should I allow around anchor bolts and mounting hardware?
The inside dimensions of the base cover must provide enough clearance for the base plate, anchor bolts, nuts, washers, conduit, and any other hardware extending beyond the pole shaft.
Do not size the cover from the pole diameter alone. Measure the widest points of the complete pole-base assembly and allow sufficient clearance for the cover to fit around the hardware without interference.
Send Us Your Pole Base Measurements
Once you have measured the existing or proposed pole base, LED PROS WorldWide can help identify available cover options for the project.
For existing poles, send us your quantity, pole shape and dimensions, base-plate dimensions, anchor-bolt locations and projection, concrete-base dimensions, desired cover height, preferred style and finish, and photographs of the complete pole base.
For new construction, include the pole specifications, base dimensions, quantity, finish requirements, and project drawings or specifications when available.
Explore our Clam Shell Pole Base Covers, Request a Quote, or call 844-533-7767 for pricing and product-selection assistance.
Frequently Asked Questions About Light Pole Base Covers
What measurements are required before ordering?
Pole diameter, base plate dimensions, anchor bolt spacing, and cover height requirements.
Can a cover be too large?
Yes. Oversized covers may appear disproportionate and create installation challenges.
Are custom sizes available?
Many manufacturers offer custom sizing options for unique applications.
How do I determine the required cover height?
Measure the height of the base plate, anchor bolts, nuts, washers, conduit, and other components the cover must accommodate. Then compare those measurements with the inside dimensions of the available cover while also considering the desired finished appearance
Do clamshell covers require pole removal?
No. Clamshell designs are specifically intended for installation around existing poles.
Can covers be used on decorative poles?
Yes. Decorative pole systems frequently utilize architectural base covers.
Are marine-grade finishes available?
Yes. Marine-grade powder-coated finishes are commonly specified for waterfront and coastal projects.
