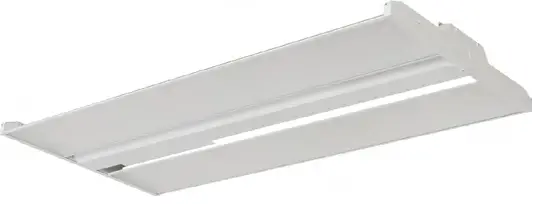

Linear High Bay LED Lights-Skyline

From $200

Product Overview

The HBEL Skyline Linear High Bay is a versatile, high-performance LED luminaire designed for indoor commercial and industrial high bay applications. This linear high bay fixture combines excellent efficiency, durability, and flexibility to meet the demanding lighting requirements of facilities with high to very high ceilings.



Key Features

– High luminous efficacy of ~130 lm/W across all wattages

– Available in 2-foot and 4-foot lengths

– Multiple mounting options: V-hook, surface, pendant, or chain

– Damp location rated

– Operating temperature range: -20°C to 50°C

– 0-10V dimming (standard)

– Aluminum housing with plastic lens (frosted or clear options)

– Optimized light distribution for high illumination and visual detail



Certifications and Compliance

– DLC Premium listed

– UL listed

– CE certified

– California Title 24 compliant

– RoHS compliant



Technical Specifications

– Wattage options: 90W, 110W, 135W, 162W, 223W, 321W

– Input voltage: 120-277V (standard), 347-480V (optional)

– Color temperature options: 4000K, 5000K

– CRI: 80+

– Power factor: >0.9

– THD: <20%

– L70 rated life: 50,000+ hours

– Lens material: Plastic (frosted or clear)

Applications

– Warehouses

– Manufacturing facilities

– Gymnasiums

– Retail spaces

– Exhibition halls

– Other indoor commercial and industrial environments requiring high-bay illumination



Customization Options

– Wattage selection

– Color temperature selection (4000K or 5000K)

– Lens type (frosted or clear)

– Dimming or non-dimming options

– Voltage options (120-277V or 347-480V)

– Optional accessories: photocell, motion sensor, emergency driver



Warranty

10-year limited warranty



Ordering Information

Use the following format to specify your desired configuration:

HBEL-[LENGTH]-[WATTAGE]-[CCT]-[VOLTAGE]-[DIMMING]-[LENS]-[GENERATION]

Example: HBEL-2FT-160-50-F-G2

– Length: 2FT (2 feet) or 4FT (4 feet)

– Wattage: 90, 110, 135, 162, 223, or 321

– CCT: 40 (4000K) or 50 (5000K)

– Voltage: Blank (120-277V) or specify for 347-480V

– Dimming: Blank (0-10V dimming) or ND (non-dimming)

– Lens: Blank (clear) or F (frosted)

– Generation: G2 (Generation 2)



Additional Information

– Mounting options: V-hook and jack chain included; cable kit, pendant mount, and surface mount options available

– Photometric data and coverage charts available for various wattages and mounting heights

– Toxin-free construction
