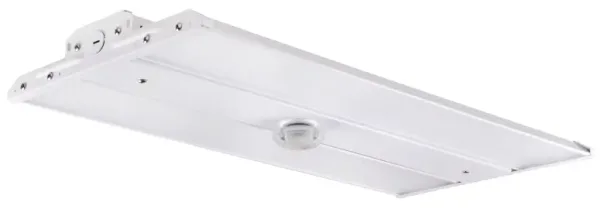

LED Linear High Bay

From $200

Product Overview

The LS-LHBV2 series is a versatile, high-efficiency LED linear highbay light designed for commercial and industrial applications. With its tunable color temperature and adjustable wattage options, this linear high bay fixture offers flexibility and performance for various lighting needs.



Key Features

– Tunable CCT: 4000K/5000K selectable

– Adjustable wattage: 110W/165W/220W options

– High efficiency: 140 lm/W

– Built-in sensor receptacle port for easy plug-and-play

– 106° beam angle for wide light distribution

– Lightweight design with easy access wiring

– Corrosion and rust-proof construction

– 50,000 hours lifetime



Certifications and Compliance

– UL Listed

– cUL Listed

– DLC Certified



Technical Specifications

– Input Voltage: 120-277V AC

– CRI: >80

– Light Distribution: 106° beam angle

– Working Temperature: -20°C to 45°C

– Junction Temperature: <75°C

– Lamp Efficiency: ≥90%

– Housing: Heavy die-cast aluminum alloy with white powder-coated finish

– Lens: Frosted PC optics

– Dimming: 0-10V dimming capability

– Equivalent to: 220-700W MH/HPS (depending on model)

Applications

– Warehouse lighting

– Base room lighting

– Shopping mall lighting

– Facility lighting



Customization Options

– Wattage selection: 110W, 165W, or 220W

– Color temperature selection: 4000K or 5000K

– Optional accessories:

  – Wire guard

  – Motion sensor

  – PIR sensor

  – Emergency battery backup



Warranty

5-year limited warranty



Ordering Information

Model Number Format: LS-LHBV2-[Wattage]-[CCT]

Example: LS-LHBV2-165W-50K

– Wattage options: 110W, 165W, 220W

– CCT options: 40K (4000K), 50K (5000K)



Installation Options

– Suspended mounting (chain/cable)

– 3/4″ NPT mounting

– Surface mounting (bracket included)



Additional Information

– Dimensions: 24.0″ x 14.2″ x 13.5″

– Motion sensor detection distance: 40-50 ft

– Optional emergency battery backup available
