Atlas NSF Industrial LED Linear Wet Location

From $400

Product Overview

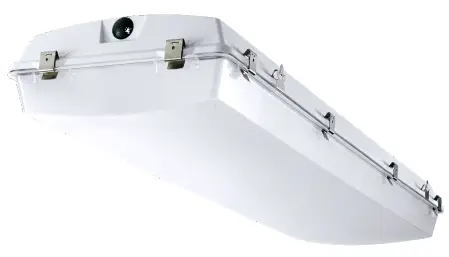

The ILW Wide Body LED Linear Wet Location luminaires are highly efficient, durable fixtures designed for demanding wet location applications. Available in 2ft and 4ft lengths, these luminaires feature a robust 1-piece composite housing, poured gasket for continuous lens sealing, and stainless steel cam latches for superior protection against moisture and dust.



Key Features

– 1-piece composite housing with 1/2″ entry points on both ends

– Injection molded acrylic lens with high impact additive, ribbed and frosted to eliminate glare

– Poured gasket provides continuous seal for the lens

– Stainless steel cam latches compress lens to housing for tight seal

– High efficiency Atlas LEDs with 200,000+ hour lifespan

– Available in 4000K, 4500K and 5000K CCT options

– Knock-out sizes and positions retained from previous models for easy installation



Certifications and Compliance

– UL/cUL certified for Wet Locations

– DesignLights Consortium (DLC) qualified, eligible for utility rebates

– Rated for NEMA 4X, IP65, IP66, IP67

– IP69K rated (2ft models only)

NSF compliant

– 1500 PSI hose down rated

Technical Specifications

– AC Input: 120/208/240/277V, 347/480V

– Constant current, Class 2 120-277 VAC, 47-63Hz

– Min 85% efficiency

– 0W off-state power

– Operating Temp Range: -35°C to 45°C

– Tested to IESNA LM-79 & LM-80 standards



Applications

ILW luminaires are ideal for:

– Cold storage facilities

– Parking garages

– Refrigerated cases

– Stairwells and storage areas

– Fuel pump canopies

– Low-bay commercial & industrial lighting



Customization Options

– Factory installed emergency back-up (add suffix EB)

– 480V input (add suffix 4)

– Stainless steel latches (add suffix L)

– 3ft or 6ft cords (add suffix 3C or 6C)



Warranty

ILW luminaires come with a five-year limited warranty.



Ordering Information

Specify:

– Product Series (ILW)

– Wattage (76LED, 98LED, 130LED or 190LED)

– Fixture Length (2 or 4)

– Body Style (WD for wide)

– Color Temp (Blank=4500K, 4K=4000K, 5K=5000K)

– Additional Options (see customization options)



For example: ILW98LED4WD5K



Additional Information

– Up to 149 lumens per watt

– DLC Premium classification

– Rebates and incentives available in many areas

– Assembled in USA by American workforce using domestic and foreign components

– Meets Buy American requirements within ARRA
