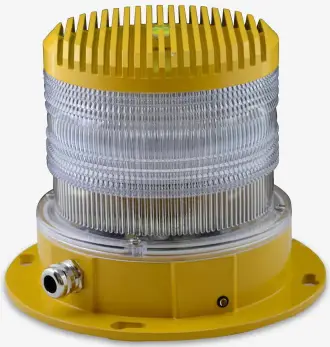

L-864 ZL2000 Series Red beacon type b ad c

From $300

Product Overview

The L-864 ZL2000 Series Red LED Medium Intensity Beacon is a high-performance aircraft warning light designed to increase the visibility of structures during nighttime. This portable and energy-efficient FAA-compliant beacon is ideal for marking various tall structures to ensure aviation safety.



Key Features

– High-quality LED technology with 100,000 hours lifespan

– 360° horizontal light output

– Low power consumption (5W average in flash mode)

– IP67 rated for superior ingress protection

– Lightweight and portable design for easy transportation and installation

– Wide input voltage range (85V~265V AC, 12V~60V DC)

– EMC compliant design

– Resistant to shock, vibration, and corrosion

– UV stabilized finish for enhanced durability



Certifications and Compliance

– ICAO Annex 14, Volume I, 6th Edition, July 2013

– ICAO Aerodromes Design Manual, Chapter 18

– FAA AC150/5345-43G

– FAA Engineering Brief 67 Specifications

– Compliant with ICAO medium intensity type B and C

– Compliant with FAA L-864 type



Technical Specifications

– Operating Voltage: 85V~265V AC, 12V~60V DC

– Power Consumption: Flash mode 5W / Steady mode 40W

– Flash Rate: 20 to 60 flashes per minute

– Color: Red

– Light Intensity: >2000cd at 0°, >950cd at -1°

– Photocell Sensitivity: 100 Lux

– Housing Material: Cast aluminum with PC lens cover

– Dimensions: φ22.7cm × 19cm

– Weight: 2.5KG

– Operating Temperature: -40°C to 60°C

– Wind Speed Resistance: 80m/s

Applications

– High-rise buildings

– Chimneys

– Telecommunication towers

– Transmission power towers

– Airports

– Wind turbines

– Crane machines

– Any tall structure requiring nighttime aviation obstruction marking



Customization Options

– Photocell function for automatic day/night operation

– GPS synchronized flashing

– Failure alarm output

– Color options: red, white, blue, yellow, green

– Flash or steady burning mode

– Solar power supply option available



Warranty

2-year limited warranty

Ordering Information

To order the L-864 ZL2000 Series Red LED Medium Intensity Beacon, please specify:

  1. Desired input voltage (AC or DC)
  2. Flash rate requirement
  3. Any custom features (photocell, GPS sync, alarm output, etc.)
  4. Color preference if different from standard red
  5. Flash or steady burning mode
  6. Solar power option if required



Additional Information

– Centering light output at 0.5° for optimal visibility

– Compatible with various control systems for advanced functionality

– Solar power option available for off-grid applications (details available upon request)
