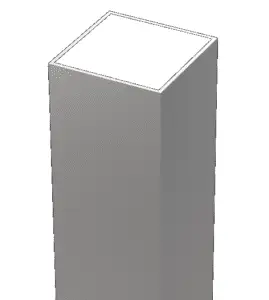

![Commercial Light Poles - SQUARE STRAIGHT ALUMINUM POLES](https://i0.wp.com/industriallightingfixtures.org/wp-content/uploads/2022/02/square-straight-aluminum-pole.webp?fit=269%2C300&ssl=1)
From $600
Product Overview
The CL-SSA Square Straight Aluminum pole series by Crystal Lighting offers a robust and versatile solution for commercial and industrial outdoor lighting applications. Engineered for durability and aesthetics, these commercial light poles provide a sturdy foundation for various lighting fixtures, ensuring long-lasting performance in diverse environments.
Key Features
– Seamless extruded 6063 Aluminum Alloy construction
– Ground Lug welded inside for electrical safety
– Reinforced 3″x5″ hand hole for easy access
– High-strength 4-bolt base flange
– Powder-coated finish for enhanced corrosion resistance
– Removable pole cap and matching base cover
– Cast hand hole cover with internal bridge support
Certifications and Compliance
– ASTM B221 compliant aluminum alloy
– ASTM F1554 Grade 36 compliant anchor bolts
Technical Specifications
– Heights: 8′ to 30′
– Diameters: 4″ SQ, 5″ SQ, 6″ SQ
– Wall Thickness: .125″, .188″, 1/4″
– Base Plate: 3/4″ thick (up to 20′ poles), 1″ thick (21’+ poles)
– Bolt Circle: 8″3/16 – 10″3/16 (10′-20′ poles), 10″ – 14″ (21’+ poles)
– Anchor Bolts: 3/4″ x 24″ or 1″ x 36″
– EPA Ratings: Available for various wind speeds (90-130 MPH)
Applications
– Commercial parking lots
– Industrial complexes
– Educational institutions
– Retail centers
– Sports facilities
– Municipal street lighting
Customization Options
– Multiple mounting configurations: Single, Double (180° or 90°), Triple, Quad
– Finish colors: Bronze, White, Silver, Green, Black, Graphite, Custom
– Marine Grade finish available
– Various tenon options for fixture mounting
– Optional round base cover
– GFI provision or full GFI kit
Warranty
3-year warranty on powder coat finish and pole structure
Ordering Information
Use the following format to specify your CL-SSA pole:
CL-SSA-[Height]-[Diameter]-[Thickness]-[Bolt Circle]-[Anchor Bolt]-[Mounting]-[Finish]-[Options]
Example: CL-SSA-8-4-188-9BP-342-D180-BRZ-T3R
Additional Information
– Proudly manufactured and assembled in the USA
– EPA (Effective Projected Area) charts available for proper pole selection based on fixture load and wind speed requirements
– Sandblasted prior to powder coating for superior finish adhesion
– Powder coat applied to a minimum of 3 millimeters and baked at 400°F
To ensure the perfect lighting solution for your commercial project, consult with Crystal Lighting’s experienced team for expert guidance on pole selection, customization options, and compliance with local building codes and regulations.
