From $55
Product Overview

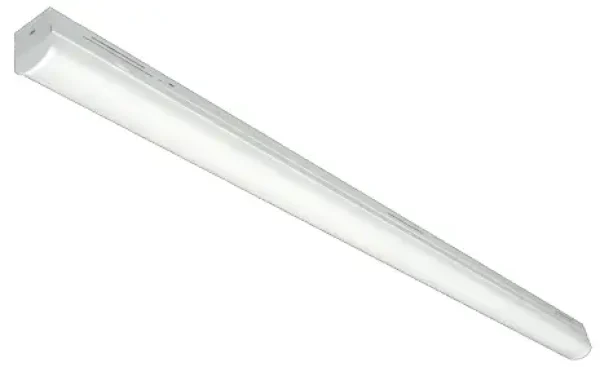

Adriatic LED Strip Fixture is an advanced lighting solution designed for architectural applications with size restrictions. Its innovative integrating module-to-lens design ensures quick and easy installation across commercial, industrial, retail, and residential settings. The Adriatic strip fixture serves as a versatile illumination solution, ideal for general area low bay lighting in coves, shops, showcases, and storage/utility areas.
Key Features
– High efficiency: Up to 130 lumens per watt
– Versatile input voltage: 120-277V
– Wide beam angle: 120°
– Operational in extreme temperatures: -20°C to 50°C (when suspended at least 18″ from ceiling)
– Easy installation: Surface mounting bracket included
– Linkable: Connect up to 8 fixtures
– Dimmable: 0-10V dimming capability
– High-quality LEDs: Bridgelux 2835
– Low flicker: 10% flicker percent
– Sleek design: Steel housing with white finish
Certifications and Compliance
– UL Listed
– IP20 rated
Technical Specifications
| Parameter | 4ft Model (SKU 155602) | 8ft Model (SKU 155603) |
|———–|————————|————————|
| Wattage | 45W | 46W |
| Lumens | Up to 5850LM | Up to 5980LM |
| Color Temperature | 5000K (Cool White) | 5000K (Cool White) |
| CRI | >80 | >80 |
| Power Factor | 0.9 | 0.9 |
| THD | 9.47% | 9.47% |
| LED Quantity | 112 Pcs | 140 Pcs |
| Dimensions | 47.3″ x 1.9″ x 1.9″ | 94.2″ x 1.9″ x 1.9″ |
Applications
– Office spaces
– Retail stores
– Warehouses
– Educational facilities
– Healthcare environments
– Hospitality venues
– Residential areas
Customization Options
While specific customization options are not mentioned in the provided document, customers interested in tailored solutions should contact our sales team to discuss potential modifications to meet their unique requirements.
Warranty
All Adriatic LED Strip Fixtures come with a 5-year warranty, ensuring long-term performance and customer satisfaction.
Ordering Information
– 4ft Model: SKU 155602 (BLT-SN-V-4FT/FH/45/YDM 850 (A3+B7))
– 8ft Model: SKU 155603 (BLT-SN-V-8FT/FE/46/YDM 850 (A3+B7))
Installation
The Adriatic LED Strip Fixture offers two installation methods:
- Chain Suspended Mounting
- Surface Mounting
Detailed installation instructions are provided with each fixture, ensuring proper setup and optimal performance.
Additional Information
– Photometric data and distribution charts available upon request
– Compatible with standard 0-10V dimming controls
– Suitable for dry or damp locations
