From $850
Download Data Sheet here
Product Overview

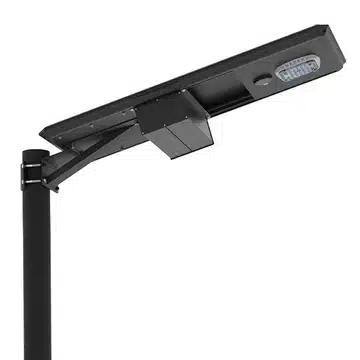

The EVO-120W Integrated Solar Street Light represents the pinnacle of autonomous lighting technology for commercial and municipal applications. This all-in-one solar lighting solution combines cutting-edge photovoltaic technology with advanced LED illumination to deliver reliable, sustainable outdoor lighting without the need for grid connection or underground cabling.
Engineered for demanding commercial environments, the EVO-120W features a robust integrated design that houses a high-efficiency 140W monocrystalline solar panel, premium Lithium Iron Phosphate battery system, and state-of-the-art LED array within a single, weatherproof housing. This innovative approach eliminates complex wiring, reduces installation time by up to 80%, and provides maintenance-free operation for over a decade.
Key Features
Advanced Energy Management
-
MPPT Smart Controller Technology: Maximizes solar energy harvest with up to 98% charging efficiency
-
Intelligent Power Distribution: Three-phase charging system (bulk, constant voltage, floating) ensures optimal battery health
-
Adaptive Brightness Control: Automatic dimming profiles conserve energy while maintaining safety standards
-
Anti-Blackout Protection: Guaranteed all-night illumination even after 4 consecutive rainy days
Superior Illumination Performance
-
Ultra-High Efficacy: Industry-leading 196 lumens per watt output
-
Premium LED Technology: Philips Luxeon HE Plus chips deliver 23,520 lumens of brilliant illumination
-
Optimized Light Distribution: 91.2° beam angle provides uniform coverage without dark spots
-
Dark Sky Compliant: Zero upward light emission (0.71% ULOR) minimizes light pollution
Intelligent Motion Detection
-
360° Microwave Sensor: Advanced Doppler-effect detection covers up to 50 feet radius
-
Weather-Immune Detection: Functions reliably in rain, snow, and extreme temperatures
-
Programmable Response: Customizable brightness levels from 30% standby to 100% active
-
False-Trigger Prevention: Sophisticated algorithms distinguish between vehicles, pedestrians, and environmental movement
Extreme Weather Resilience
-
Extended Temperature Range: Standard operation from 14°F to 158°F (-10°C to 70°C)
-
Arctic Package Available: Optional configuration for -40°F to 158°F operation
-
Hurricane-Rated Construction: Aluminum and stainless steel housing withstands 150+ mph winds
-
IP65 Environmental Protection: Complete protection against dust, rain, and water jets
Certifications and Compliance
International Standards
-
IEC 61215: Crystalline silicon terrestrial photovoltaic modules
-
IEC 61730 Type I & II: Photovoltaic module safety qualification
-
IEC 60904: Photovoltaic devices measurement procedures
-
LM-79-08: Electrical and photometric measurements of SSL products
-
LM-80: LED lumen maintenance testing
Safety & Quality Certifications
-
CE Marked: Meets European Union safety, health, and environmental requirements
-
IK8 Impact Rating: Vandal-resistant construction withstands 5-joule impacts
-
IP65 Ingress Protection: Dust-tight and protected against water jets
-
EMC Compliant: Electromagnetic compatibility for commercial environments
-
TÜV Certified Components: German technical inspection approval
Technical Specifications
Lighting Performance
|
Parameter |
Specification |
|---|---|
|
Nominal Power |
120 Watts |
|
Light Output |
23,520 Lumens |
|
Efficacy |
196 Lm/W |
|
LED Chips |
Philips Luxeon 30-30 |
|
Color Temperature |
2300K to 6500K (TII-S) |
|
Color Rendering Index |
>80 CRI |
|
LED Lifespan |
>100,000 hours (LM80) |
|
Beam Angle (50%) |
91.2° |
Solar System
|
Parameter |
Specification |
|---|---|
|
Solar Panel Power |
140 Watts |
|
Panel Voltage |
18V |
|
Cell Type |
Monocrystalline Grade A |
|
Panel Warranty |
25 years performance |
|
Controller Type |
MPPT with SOLUX BRIDGE |
Battery System
|
Parameter |
Specification |
|---|---|
|
Battery Technology |
Lithium Iron Phosphate (LiFePO4) |
|
Capacity |
922 Wh |
|
Autonomy |
24+ hours at full charge |
|
Backup Duration |
4 rainy days minimum |
|
Charging Time |
5-6 hours |
|
Cycle Life |
>5,000 cycles @ 50% DOD |
|
Expected Lifespan |
>10 years |
Physical Specifications
|
Parameter |
Specification |
|---|---|
|
Product Dimensions |
62.3″ × 17.3″ × 9.7″ |
|
Net Weight |
43.2 lbs |
|
Gross Weight |
53.8 lbs |
|
Pole Compatibility |
3.5″ – 2.9″ round or square |
|
Material |
Die-cast aluminum housing, stainless steel hardware |
|
Mounting Height |
19.6′ – 26.2′ recommended |
Applications
Transportation Infrastructure
-
Highways and Main Roads: Primary arterial lighting for high-traffic corridors
-
Parking Facilities: Commercial lots, park-and-ride stations, airport parking
-
Service Areas: Rest stops, weigh stations, toll plazas
-
Transit Stations: Bus stops, train platforms, transportation hubs
Commercial & Industrial
-
Corporate Campuses: Perimeter security, walkway illumination
-
Distribution Centers: Loading docks, storage yards, access roads
-
Manufacturing Facilities: Employee parking, security checkpoints
-
Retail Centers: Overflow parking, service roads, pedestrian areas
Recreational & Municipal
-
Parks and Recreation: Walking trails, bike paths, sports facilities
-
Campgrounds: Access roads, common areas, amenity lighting
-
Marinas: Dock access, boat launch areas, parking
-
Educational Campuses: Pathways, emergency routes, athletic fields
Remote & Off-Grid Locations
-
Mining Operations: Access roads, equipment yards
-
Agricultural Facilities: Farm roads, equipment storage
-
Border Security: Patrol roads, checkpoints
-
Emergency Infrastructure: Evacuation routes, disaster relief centers
Customization Options
Lighting Configurations
-
Color Temperature Selection: Choose from 2300K warm white to 6500K daylight
-
Programmable Operating Modes: Customize up to 8 different lighting schedules
-
Motion Sensor Settings: Adjust detection range, sensitivity, and response time
-
Dimming Profiles: Configure standby brightness from 0% to 50%
Environmental Adaptations
-
Arctic Package: Extended temperature range to -40°F for extreme cold climates
-
Tropical Configuration: Enhanced moisture protection for high-humidity environments
-
High-Wind Package: Reinforced mounting for hurricane-prone regions
-
Desert Optimization: UV-resistant coatings for intense solar radiation
Remote Management Options
-
Wireless Control System: Optional remote monitoring and diagnostic capabilities
-
IoT Integration: Compatible with smart city management platforms
-
Group Control: Manage multiple fixtures from centralized location
-
Performance Analytics: Real-time data on energy production and consumption
Mounting Solutions
-
Universal Bracket System: Fits 2.9″ to 3.5″ poles (round or square)
-
Wall Mount Adapters: For building-mounted installations
-
Custom Heights: Specialized brackets for non-standard mounting heights
-
Anti-Theft Hardware: Security fasteners and tamper-resistant designs
Warranty
Comprehensive 5-Year Limited Warranty
Beyond Solar stands behind the EVO-120W with industry-leading warranty coverage:
System Components
-
Complete Assembly: 5 years coverage on all integrated components
-
LED Array: 5 years with expected 100,000+ hour lifespan
-
MPPT Controller: 5 years full replacement warranty
-
Lithium Battery: 3 years with pro-rated coverage years 4-5
-
Motion Sensor: 5 years parts and functionality
Solar Panel Performance Guarantee
-
Year 1: 97% minimum power output
-
Year 10: 90% minimum power output
-
Year 25: 80% minimum power output
Warranty Conditions
-
Coverage valid when installed according to manufacturer specifications
-
Suitable for ambient temperatures within specified operating range
-
Professional installation recommended for full warranty validation
-
Extended warranty options available for large commercial projects
Ordering Information
Product Identification
-
Model Number: AVS-EVO-120W
-
SKU: 789771
-
Minimum Order Quantity: Contact for volume pricing
Shipping Information
-
Packaging: Individual cartons (64.9″ × 19.6″ × 10.4″)
-
Pallet Quantities: 12 units per pallet
-
Container Load: 240 units per 40′ container
-
Freight Classification: Class 85
