From $225
Product Overview

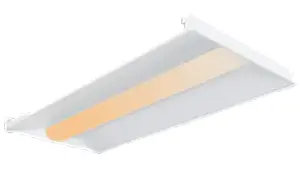

The U-TRF LED Tunable Troffer Light is a versatile and energy-efficient lighting solution designed for modern commercial and institutional spaces. Manufactured by Altech Electronics, this innovative indoor lighting fixture offers adjustable wattage and color temperature options, allowing for customized illumination to suit various environments and tasks. Available in 2×2 and 2×4 sizes, the U-TRF series combines high-performance LED technology with user-friendly tunability, making it an ideal choice for a wide range of indoor applications.
Key Features
– Tunable wattage and color temperature
– High efficiency with up to 127 lumens per watt
– Uniform, glare-free illumination
– Continuous 0-10V dimming capabilities
– Long lifespan of over 75,000 hours
– High-quality sheet iron design for superior heat dissipation
– Easy-to-use dial code switch for on-site adjustments
– Slim profile for seamless integration into various ceiling types
Certifications and Compliance
– DLC (DesignLights Consortium) Listed
– ETL Listed (E510484)
– Suitable for damp locations
Technical Specifications
– Available Sizes: 2×2 feet (U-22TRF) and 2×4 feet (U-24TRF)
– Wattage Options:
– U-22TRF: 20W / 25W / 30W
– U-24TRF: 34W / 38W / 45W
– Input Voltage: AC 120-277V
– Power Factor: >0.98
– Driver Efficiency: >90%
– Luminous Flux:
– U-22TRF: 2500Lm / 3125Lm / 3750Lm
– U-24TRF: 4250Lm / 4758Lm / 5715Lm
– Color Temperature Options: 3500K, 4000K, 5000K
– Color Rendering Index (CRI): Ra>80
– Beam Angle: 119°
– Operating Temperature: -20°C to +50°C (-4°F to 122°F)
– LED Source: SEOUL
– Driver: Simon Power
Applications
– Office spaces
– Retail stores
– Educational facilities
– Healthcare environments
– Conference rooms
– Hallways and corridors
– Multipurpose rooms
– Warehouses
Customization Options
– Adjustable wattage and color temperature via built-in dial code switch
– Continuous 0-10V dimming for precise light level control
– Compatible with various control systems for advanced lighting management
Installation
– Designed for easy embedded installation in standard T-bar suspended ceilings
– Lightweight construction for simple handling and mounting
– No external driver box, allowing for a clean and streamlined appearance
Warranty
5-year limited warranty.
Ordering Information
To order the U-TRF LED Tunable Troffer Light, use the following format:
[Size]TRF[Wattage Range][Color Temperature Range]
Example: 22TRF202530W27-3545K or 24TRF343845W27-3545K
Size options:
– 22 (2×2 feet)
– 24 (2×4 feet)
Wattage Range:
– 202530W (for 2×2 models)
– 343845W (for 2×4 models)
Color Temperature Range:
– 27-3545K (2700K-3500K-4500K)
Packaging Information
– U-22TRF: 617mm x 610mm x 123mm (24.29″ x 24.02″ x 4.84″), 2 pieces per carton
– U-24TRF: 1227mm x 610mm x 123mm (48.31″ x 24.02″ x 4.84″), 2 pieces per carton
The U-TRF LED Tunable Troffer Light offers a combination of energy efficiency, flexibility, and high-quality illumination, making it an excellent choice for various commercial and institutional lighting applications. Its tunable features and easy installation process ensure that it can meet the diverse needs of modern indoor spaces while providing long-lasting, cost-effective performance.
