Product Overview

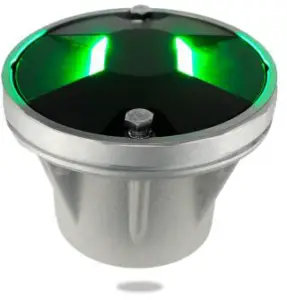

The AH-HP-C Heliport Inset Bidirectional Light is a cutting-edge LED lighting solution engineered specifically for heliports and helipads. Developed by Anhang Technology, this robust and versatile inset light is designed to withstand the rigorous demands of heliport operations while providing superior visual guidance. Its standout features include a high-intensity output of ≥100cd per side and bidirectional illumination for enhanced visibility, ensuring clear visual cues for pilots from multiple angles.
The light’s innovative design combines durability with advanced functionality. The bidirectional illumination capability allows for efficient lighting of runway edges, centerlines, and thresholds with a single unit, reducing installation complexity and costs. With its high-intensity output, the AH-HP-C pierces through challenging visibility conditions, providing crucial guidance during approach, landing, and ground operations.
Engineered to endure the harsh conditions of heliport environments, this LED heliport lighting solution features a pressure-resistant lens capable of withstanding the weight of aircraft and maintenance vehicles. Its die-cast aluminum body, protected by a black hard anodizing layer, offers excellent corrosion resistance and load-bearing capacity. The IP68 waterproof rating ensures reliable performance even in underground installations or areas prone to water accumulation.
Key Features
– CREE Ultra high intensity LED light source
– Bidirectional illumination for enhanced visibility
– Multiple color combinations available (Green/Green, White/Yellow, Green/Red, etc.)
– High-intensity output of ≥100cd per side
– Energy-efficient design with 95% less power consumption than equivalent incandescent lights
– Pressure-resistant lens capable of withstanding vehicle traffic
– Die-cast aluminum body with black hard anodizing for superior corrosion protection
– IP68 waterproof rating for reliable underground operation
– 24-hour continuous operation capability
– Long LED lifespan of over 100,000 hours
Certifications and Compliance
– ICAO Annex 14 Volume II Heliports 5.3
– FAA AC 150/5390-2B Heliport Design Guide
Technical Specifications
– Light Source: CREE Ultra high intensity LED
– Available Colors: Green/Green, White/Yellow, Green/Red, or custom combinations
– Operating Voltage: 110-240VAC, 48VDC, 24VDC, or others as specified
– Power Consumption: 7W
– Dimensions: 194 × 194 × 138 mm (overall size)
– Installation Size: 199 × 199 × 146 mm
– Weight: 4.5 kg
– Operating Temperature Range: -55°C to 70°C
– Humidity Tolerance: 0% to 100%
– Wind Speed Resistance: Up to 80 m/s
Applications
– Heliport/Helipad Runways
– Heliport Taxiways
– Centerline Lighting
– Runway Threshold/End Lighting
– Runway Edge Lighting
Customization Options
– Choice of LED color combinations
– Infrared LED compatibility for Night Vision Goggles (NVG) operations
– Marine treatment for corrosive environments
– VHF pilot-to-ground remote control integration
– Custom power supply options
Warranty
Anhang Technology provides a comprehensive warranty covering manufacturing defects and performance issues for the AH-HP-C Heliport Inset Bidirectional Light. The product has an average life expectancy of 5 years under normal operating conditions.
Ordering Information
When ordering, please specify your desired configuration, including LED color combination, power supply type, and any additional customization requirements.
Installation and Support
Our team of experts is available to provide guidance on proper installation and maintenance of the AH-HP-C Heliport Inset Bidirectional Light. We offer comprehensive technical support to ensure optimal performance and longevity of your lighting system.
Safety Features
The AH-HP-C incorporates several safety-enhancing features:
– Pressure-resistant lens to withstand vehicle and aircraft traffic
– Inset design to minimize obstructions on the heliport surface
– High-visibility illumination for improved pilot awareness
Environmental Considerations
With its energy-efficient LED technology and durable construction, the AH-HP-C Heliport Inset Bidirectional Light offers a sustainable lighting solution that reduces energy consumption and minimizes maintenance requirements, even in harsh environments.
Durability and Longevity
The AH-HP-C is designed to excel in demanding heliport environments:
– Die-cast aluminum body with hard anodizing for superior corrosion resistance
– IP68 waterproof rating ensures reliable operation in wet conditions
– Ability to withstand extreme temperatures and high humidity
By choosing the AH-HP-C Heliport Inset Bidirectional Light, you’re investing in a robust, efficient, and compliant lighting solution that meets the highest industry standards for heliport safety and operations. Its durable design and versatile applications make it an ideal choice for heliports looking to enhance their lighting infrastructure while ensuring long-term reliability and minimal maintenance.
