From $900
Product Overview

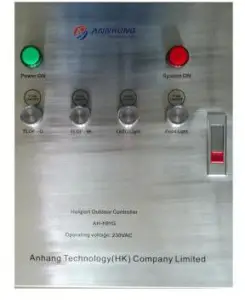

The AH-HP-G Heliport Light Controller is a robust and versatile lighting management system designed specifically for heliport environments. This advanced controller offers centralized control over multiple groups of heliport lights, ensuring optimal visibility and safety for helicopter operations in various weather conditions and times of day.
Key Features
– Durable stainless steel enclosure for extreme weather resistance
– Comprehensive surge protection (15KA/5, max 40KA) for lightning defense
– Main air switch for over-voltage protection
– Individual ON/OFF buttons for each group of lights
– Waterproof flashing light on top of the controller for enhanced visibility
– Flexible power supply options to suit various installation requirements
– Capable of controlling up to 7 groups of lights (expandable)
Certifications and Compliance
– Meets ICAO and FAA regulations
– Compliant with CAP437 (offshore helipads)
Technical Specifications
– Operating Voltage: 12VDC, 48VDC, 110VAC, 240VAC (customizable)
– Control Capacity: Up to 7 groups of lights (expandable)
– Housing Material: Stainless Steel (304 grade)
– Standard Dimensions: 800 × 580 × 330 mm (customizable)
– Standard Installation Size: 710 × 550 × M10 mm (customizable)
– Weight: 20 kg (may vary with customization)
– Operating Temperature: -55°C to 70°C
– Humidity Tolerance: 0-95%
– Wind Speed Resistance: Up to 80 m/s
– Ingress Protection: IP65
– Product Life Expectancy: ≥10 years
Applications
– Commercial heliports
– Hospital helipads
– Offshore oil rig helipads
– Emergency service helipads
– Military helicopter bases
– Corporate and private heliports
Customization Options
– Air-to-Ground Radio Control (VHF) for remote activation
– Light intensity adjustment capability
– Wireless remote control for convenient operation
– Automatic control features for scheduled lighting
– Expanded control capacity for larger installations
– Custom dimensions and configurations to suit specific site requirements
Warranty
The AH-HP-G Heliport Light Controller comes with a comprehensive warranty covering manufacturing defects and performance issues. Given its robust construction and long life expectancy, extended warranty options may be available.
Ordering Information
When ordering, please specify:
- Desired operating voltage
- Number of light groups to be controlled
- Any customization options or accessories required
- Installation environment details (for optimal configuration)
Our experienced team will assist you in designing the perfect heliport lighting control solution tailored to your specific operational needs and site requirements.
