From $500
Product Overview

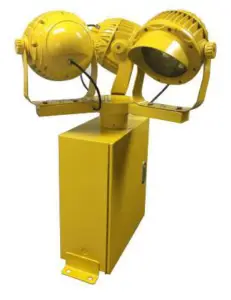

The AH-HP-R3 Airport Rotating Beacon is a state-of-the-art identification and location marker designed for airports, helipads, heliports, and helidecks. Engineered for night operations, this high-performance beacon ensures optimal visibility and safety in various aviation environments. With its robust construction and advanced LED technology, the AH-HP-R3 offers unparalleled durability and efficiency.
Key Features
– Long-lasting LED technology with 100,000-hour typical lamp life
– Tri-color design: white, yellow, and green
– Maintenance-free operation
– Permanently lubricated moving parts for smooth performance
– Impedance-protected motor to prevent burnouts
– 12 RPM rotation speed, providing 36 flashes per minute
– Weatherproof stainless steel cabinet with powder-coated international yellow finish
– IP65 rated for excellent protection against dust and water
Certifications and Compliance
– FAA AC/150-5390-2B compliant
– ICAO Annex 14 Volume I 5.3.2 compliant
– FAA L-864 certified
Technical Specifications
– Light Source: LED
– Colors: White, Green, and Yellow (other options available)
– Operating Voltage: 220/240V AC
– Circuit Protection: Integrated
– Body Material: UV-protected Polycarbonate
– Base Material: Powder-coated stainless steel 304
– Mounting Dimensions: 390×70×θ12 mm
– Overall Dimensions: 535×500×740 mm
– Weight: 25 kg
– Operating Temperature Range: -55°C to 65°C
– Humidity Tolerance: 10% to 90%
– Wind Speed Resistance: Up to 80 m/s
– Waterproof Rating: IP65
– Product Life Expectancy: Average
Applications
– Airports
– Helipads
– Heliports
– Helidecks
Customization Options
– Optional photocell control for automated operation
– Custom color combinations available upon request
Warranty
2-year limited warranty
Ordering Information
When ordering, please specify any customization requirements or optional features you may need.
Installation and Maintenance
The AH-HP-R3 is designed for easy installation and minimal maintenance. It should be located on or adjacent to the heliport, preferably at an elevated position, ensuring it does not dazzle pilots at short range. Our team can provide guidance on optimal placement and installation procedures.
Why Choose the AH-HP-R3?
– Exceptional reliability with long-lasting LED technology
– Compliance with international aviation standards
– Rugged construction for harsh environmental conditions
– Energy-efficient operation
– Low maintenance requirements
– Versatile application in various aviation settings
Enhance the safety and efficiency of your aviation facility with the AH-HP-R3 Airport Rotating Beacon.
