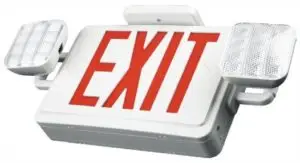

compact size emergency exit sign combo

From $250

Product Overview

The ESC03 Series Compact Size Emergency Exit Sign Combo is an advanced, space-efficient emergency lighting solution designed for commercial and industrial environments. This versatile unit integrates a high-visibility LED exit sign with powerful emergency lighting in a compact form factor. Engineered for optimal performance, energy efficiency, and ease of installation, the ESC03 emergency LED exit sign series offers reliable illumination and clear directional guidance during power outages or emergency situations, making it an excellent choice for safety-conscious facility managers and business owners.



Key Features

– Dual-function design: Exit sign and emergency lighting in one compact unit

– High-performance LED lamp heads (2 x 1.2W, 12 x 0.1W LEDs per head, 200 lumen output)

– Chrome-plated metalized reflector and plastic lens for optimal light distribution

– Energy-efficient Red or Green LED exit sign illumination

– Universal mounting with EZ-snap canopy for top or end installation

– Injection-molded, 5VA flame retardant, high-impact resistant thermoplastic housing

– Available in White or Black finish

– Optional SALIDA faceplate for bilingual applications

– Remote load capability up to 2W



Certifications and Compliance

– UL924 listed

– UL listed for damp locations (0° – 40°C)

– Meets relevant emergency lighting standards



Technical Specifications

– Input Voltage: 120V-277VAC

– Battery: 9.6V 1000mAh Ni-Cad (standard models)

           9.6V 2000mAh Ni-Cad (models with remote heads)

– Emergency Operation: Minimum 90-minute illumination

– Charging Time: Fully recharges in 24 hours

– Housing Material: High-impact thermoplastic with UL 94v-0 flame rating

– Available Colors: White (standard), Black (optional)

– Letter Colors: Red (standard), Green (optional)

Applications

– Office complexes

– Retail environments

– Educational facilities

– Healthcare centers

– Hospitality establishments

– Manufacturing plants

– Government buildings

– Any commercial space requiring emergency exit signage and lighting



Customization Options

– Letter color selection: Red or Green

– Faceplate options: “EXIT” or “SALIDA”

– Housing finish: White or Black

– Remote load capability for extended emergency lighting coverage (RH01 Series compatible)



Warranty

– Five-year warranty on all electronics and housing

– Three-year warranty on batteries



Ordering Information

Order Format: ESC03-[Letter Color][Letter Type]-[Voltage]-[Finish Color]-[Options]

Example: ESC03-G1-WH (Green letters, “EXIT”, 120-277V, White finish)



– Letter Color: G (Green) or R (Red)

– Letter Type: 1 (EXIT) or 2 (SALIDA)

– Voltage: Blank (120-277V)

– Finish Color: WH (White) or BL (Black)

– Options: RC (With Remote Load)



Installation and Maintenance

– Easy installation with universal J-box mounting pattern

– Built-in test switch and charge indicator for simplified maintenance

– Low maintenance requirements due to long-lasting LED technology



Why Choose the ESC03 Series?

  1. Compact Design: Ideal for spaces where a smaller footprint is desired
  2. Optimal Illumination: High-performance reflector and lens system for efficient light distribution
  3. Versatility: Suitable for various mounting options and compatible with remote heads
  4. Durability: High-impact resistant housing ensures longevity in demanding environments
  5. Energy Efficiency: LED technology reduces operational costs and environmental impact



Additional Features

– Adjustable lamp heads for customized light direction

– Charge rate/power “ON” LED indicator light

– Push-to-test switch for easy code compliance testing

– Internal solid-state transfer switch for reliable emergency mode activation

Elevate your facility’s emergency preparedness with the ESC03 Series Compact Size Emergency Exit Sign Combo. This innovative solution offers a perfect balance of functionality, compliance, and space-saving design for your commercial or industrial setting.
