From $195
Product Overview

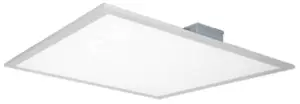

The FPBL Lumen Switchable Flat Panel is a versatile and efficient commercial LED lighting solution designed for modern office spaces and commercial environments. This innovative LED drop ceiling flat panel combines sleek design with adjustable light output, offering a perfect balance of aesthetics and functionality. Ideal for recessed grid mount installations in exposed T-Bar ceilings, the FPBL series provides uniform illumination and energy efficiency, making it an excellent choice for businesses looking to upgrade their lighting systems.
Key Features
– Field-adjustable light output with 3 discrete steps
– Ultra-thin profile at only 1.4 inches depth
– High lumen efficacy up to 130 Lm/W
– Available in 2’x2′ and 2’x4′ sizes
– Superior CRI of 80+ for comfortable and effective illumination
– Multiple color temperature options (3000K to 5000K CCT)
– Uniformly intense light distribution
– No internal cleaning required due to permanently sealed optical module
– Durable construction with aluminum frame and zinc-coated iron back housing
Certifications and Compliance
– DLC Premium listed
– ETL certified
– IP40 rated for dust protection
Technical Specifications
– Input Voltage: 100-277V AC
– Power Factor: ≥0.95
– Total Harmonic Distortion (THD): <20%
– Lifespan: 50,000+ hours (L70)
– Operating Temperature Range: -20°C to 40°C
– Dimming: 0-10V (standard), Non-dimming option available
– Lens: PMMA with PS Diffuser
– Housing: UV resistant, Aluminum Frame, Zinc Coated Iron
Lumen Output (Sample data for 4000K)
– 2’x2′ model:
– 20W: 2560 lumens
– 25W: 3200 lumens
– 30W: 3840 lumens
– 2’x4′ model:
– 30W: 3840 lumens
– 35W: 4480 lumens
– 40W: 5120 lumens
Applications
– Office spaces
– Educational facilities
– Healthcare environments
– Retail stores
– Commercial buildings
– Conference rooms
– Libraries
Customization Options
– Multiple mounting options: Recessed grid mount, surface mounting kit, drywall flange kit, and suspension wires
– Selectable wattage options:
– 2’x2′ models: 20W, 25W, or 30W
– 2’x4′ models: 30W, 35W, or 40W
– Various color temperatures: 3500K, 4000K, 5000K (contact sales for other options)
– Dimming and non-dimming versions available
Warranty
5-year manufacturer’s warranty
Ordering Information
When placing an order, please specify the following:
- Series: FPBL
- Dimensions: 22 (2’x2′) or 24 (2’x4′)
- Wattage: 30W (for 2’x2′) or 40W (for 2’x4′)
- Color Temperature: 35 (3500K), 40 (4000K), or 50 (5000K)
- Voltage: Leave blank for standard 100-277V
- Dimming: Leave blank for 0-10V dimming, or specify ND for non-dimming
- Lens: Standard milky lens
- Finish: Standard matte finish
Example order code: FPBL24-40W-40
Additional Information
– Optional emergency driver (WP-08U-48-EA) available for backup lighting during power outages
– Toxin-free construction for environmentally conscious installations
– Compatible with various smart lighting control systems (sold separately)
Upgrade your commercial space with the FPBL Lumen Switchable Flat Panel – where efficiency meets elegance in commercial lighting solutions.
