From $200
Product Overview

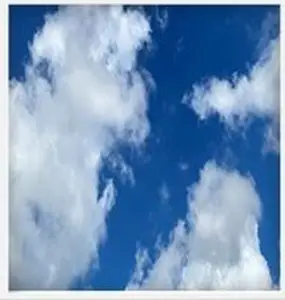

Introducing THE SKY PANEL™ – a revolutionary LED lighting solution that brings the serenity of the open sky into indoor spaces. These innovative 2’x2′ LED ceiling lights offer a stunningly realistic simulation of natural daylight, transforming any interior environment into a more open, inviting, and productive space. Designed for easy installation and superior performance, THE SKY PANEL™ combines cutting-edge LED technology with artistic design to create a soothing ambiance that enhances focus, reduces stress, and improves overall well-being.
Key Features
– Realistic Sky Simulation: Soothing shades of blue and white replicate the outdoor experience
– High Efficiency: Up to 130 lumens per watt for exceptional energy savings
– Glare-Free Illumination: Uniform light distribution for improved focus and reduced eye strain
– Slim Profile: Super slim design for seamless integration into ceilings
– Versatile Dimming: 0-10V dimming capabilities for customizable lighting levels
– Easy Installation: Fits standard 2’x2′ drop ceilings with optional surface mount kit available
– Built-in Safety: Includes standard earthquake clips for added security
– Integrated Driver: Eliminates need for external driver or ballast
– Universal Voltage: Compatible with 120-277Vac power systems
– Eco-Friendly: No UV, IR, or mercury emissions
Certifications and Compliance
– UL Certified
– Complies with UL safety regulations
– Suitable for use in insulated and non-insulated ceilings
Technical Specifications
– Model Number: BLT-BPLED-2X2-39/D10/U/60/HL
– Dimensions: 2′ x 2′ (exact measurements not provided)
– Wattage: 39W
– Lumen Output: Up to 5070 lumens
– Efficacy: Up to 130 lm/W
– Color Temperature: 6000K (daylight)
– CRI: >80
– Input Voltage: 120-277Vac (50/60Hz)
– Dimming: 0-10V dimming standard
– Operating Temperature: -20°C to 40°C (-4°F to 104°F)
– IP Rating: IP20
– Lifespan:
– L70 > 75,000 hours
– L90 > 40,000 hours
– Ceiling Type Compatibility: 9/16″ or 15/16″ Flat T-Grid
– Light Source: Non-replaceable LED
Applications
– Corporate offices and meeting rooms
– Educational institutions
– Healthcare facilities
– Basements and windowless spaces
– Retail environments
– Hospitality settings
– Fitness centers
– Spa and wellness areas
– Residential spaces
Customization Options
– *Mounting Options:
– Recessed T-bar mounting (standard)
– Surface mounting kit (optional)
– Suspension mounting kit (optional)
– Accessories:
– Hanging wire kit for custom installations
– Emergency Backup: Optional emergency driver available (SKU: 153467)
Warranty
5-year manufacturer’s warranty with 24/7 operating hours, ensuring long-term performance and peace of mind.
Ordering Information
– SKU: 153586
– Model Number: BLT-BPLED-2X2-39/D10/U/60/HL
Additional SKUs (specifications not provided):
– SKU: 153457
– SKU: 153484
– SKU: 153467 (Emergency Driver)
Installation and Packaging
– Easy Installation: Designed for simple integration into standard drop ceilings
– Packaging:
– 4 panels per box
– Box dimensions: 25.00″ x 25.59″ x 9.06″
– Gross weight per box: 24.25 lbs
Safety and Compliance
– Installation should be performed by a qualified licensed electrician
– Complies with National Electrical Code and applicable local code requirements
– Suitable for Dry or Damp locations only
Transform your indoor spaces with THE SKY PANEL™ LED Ceiling Panels – where innovation meets illumination, bringing the calming beauty of the sky indoors for enhanced well-being and productivity.
