From $400

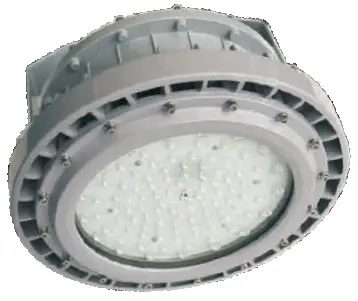

The C Series Explosion Proof High Bay LED Luminaire by Venas Co., Ltd. is designed to deliver high performance in hazardous locations. Suitable for environments with explosive gases, dust, or fibers, this luminaire is perfect for the oil and gas industry, chemical plants, marine operations, metal treatment facilities, and more. Its robust construction and versatile mounting options make it an ideal choice for a wide range of industrial applications.
Key Features
– Power Options: Available in 20W, 60W, 80W, 100W, 150W, 200W, 250W, and 280W configurations.
– High Efficiency: Delivers high lumens per watt, ensuring maximum energy efficiency.
– Wide Range of CCT and Colors: Offers color temperatures from 2200K to 7000K.
– Robust Construction: Made from high-quality aluminum with a stainless steel mounting bracket.
– Durability: Rated IK10 for impact resistance and IP66 for protection against dust and water.
– Operating Temperature: Functions effectively in temperatures ranging from -40°C to +60°C.
– Mounting Options: Ceiling, wall, pole, hook pendant, and other custom mounts available.
– Voltage Compatibility: Supports AC200-480V or DC12-48V input ranges.
Certifications and Compliance
– ATEX Marking: Il2 G Ex db op is IIB T5/T6 Gb, Il2 D Ex op is tb IIIC T80/90C Db IP66.
– IECEx Marking: Ex db op is IIB T5/T6 Gb, Ex op is tb IIIC T80/90C Db IP66.
– UL844 Marking:
– Class I, Division 1, Groups C, D
– Class I, Division 2, Groups A, B, C, D
– Class II, Division 1, Groups E, F, G
– Class II, Division 2, Groups F, G
– Class III
– Marine Marking: UL 1598, UL1598A, ABS.
– Other Ratings: IP66, IK10.
Technical Specifications
| Model | Wattage | Lumens | Color Temperature | Voltage | CRI | Beam Angle | Dimensions (mm) | Net Weight (kg) |
|—————|———|———|——————-|——————|——|—————|———————|—————–|
| EX-20W C2YZDA | 20W | 2800 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 357.8 (Dia) x 473.2 (H) | 14 |
| EX-60W C2YZDA | 60W | 8400 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 357.8 (Dia) x 473.2 (H) | 14 |
| EX-80W C2YZDA | 80W | 11200 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 357.8 (Dia) x 473.2 (H) | 14 |
| EX-100W CYZDA | 100W | 14000 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 406 (Dia) x 544 (H) | 17.4 |
| EX-150W CYZDA | 150W | 21000 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 406 (Dia) x 544 (H) | 17.4 |
| EX-200W C3YZDA| 200W | 28000 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 443 (Dia) x 544 (H) | 21 |
| EX-250W C3YZDA| 250W | 35000 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 443 (Dia) x 544 (H) | 21 |
| EX-280W C3YZDA| 280W | 39200 | 2200K-7000K | AC200-480V | 80 | 40°, 60°, 90°, 120° | 443 (Dia) x 544 (H) | 21 |
Applications
– Oil and Gas Industry: Suitable for all petroleum production, refining, loading, transportation, storage, and retail.
– Chemical Industry: Ideal for paint facilities, chemical production, and storage.
– Marine and Aerospace: Designed for ocean platforms, marine operations, and aerospace production.
– Metal Treatment: Perfect for steel and aluminum factories, metal smelting, foundry, and fabrication.
– Food and Alcohol Industry: Used in flour production, food and distilling production, and the alcohol industry.
– Other Applications: Suitable for any high humidity, high dust, high temperature, and vapor locations.
Ordering Information
– Product Code: C, C2, C3.
– Dimming Options: Dimmable (D) or Non-dimmable (N).
– Color Temperature: 2200K to 7000K (Z).
– Beam Angle: 40°, 60°, 90°, 120° (D).
– Glass Info: Flat glass or spherical glass (A).
Warranty
Up to 5 years limited warranty option.
Emergency Battery Backup: Available up to three hours.
