Product Overview

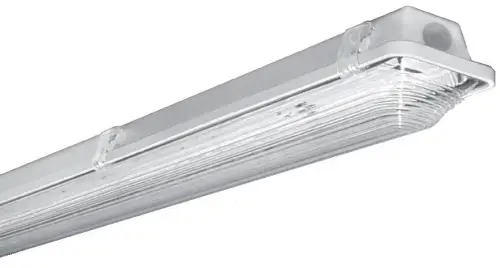

The Daisy-14 Ceiling Mount LED Luminaire by Crystal Lighting Corp. is a high-efficiency, vapor-tight lighting solution designed for challenging commercial and industrial environments. This vapor tight linear fixture combines durability with advanced LED technology to provide reliable, long-lasting illumination in a variety of settings.
Key Features
– Vapor tight, water and dustproof design (IP67 rated enclosure)
– High-efficiency LED strips with Phillips Lumileds LEDs
– Dimmable and programmable Phillips Driver
– Energy savings of over 66% compared to HID light sources
– Improved lumen maintenance
– Wide operating temperature range: -30°C to 60°C
– 0-10V dimming capability
– 80 CRI (standard)
– Operating life: >60,000 hours
– Suitable for wet locations
Certifications and Compliance
– UL Listed for Wet Locations
– Proudly manufactured and assembled in the USA
.
Technical Specifications
| Model | Input Power | Lumen Output | Efficacy (LPW) | Color Temp. | CRI | Rated Life (L70) | Input Voltage | Fluorescent Equivalent |
|——-|————-|—————|—————-|————-|—–|——————|—————|————————|
| DAY14-34CLED | 40W | 4,120 | 103 | 5000K | 70+ | >200,000 hrs | 120-277V | 2-23W T8 |
| DAY14-52CLED | 56W | 5,545 | 106 | 5000K | 70+ | >200,000 hrs | 120-277V | 3-32W T8 |
Construction
– White Polycarbonate Body with Stainless Steel Clips
– Frosted polycarbonate lens
– 1/2″ rubber plugs for conduit, sensors or photocell mounting
– Silicone gasket for leak prevention and weather-tight protection
– Surface mount installation
Dimensions:
– Length (A): 50″
– Width (B): 4″ 1/8
Applications
– Food processing facilities
– Commercial kitchens
– Breweries
– Industrial facilities
– Livestock containment buildings
– Parking garages
– Laundries
– Car washes
– Underpasses
– Tunnels
Customization Options
– Wattage: 34W or 52W
– Color Temperature: 3000K, 4000K, or 5000K
– Voltage: 120-277V (standard), 480V (optional)
– Finish: White (standard)
– Mounting: Ceiling Mount (standard)
– Optional features:
– Motion Sensor (OCC)
– Button Photocell (PC)
– Emergency Battery Pack (EMR)
– Wireless Control (WC)
Warranty
10 Year / 100,000 hour Limited Warranty
Ordering Information
Use the following format to specify your order:
Example: DAY14-34CLED-30K-MV-WHT-CM-PC
DAY14: Daisy-14 model
– Wattage: 34CLED (34W) or 52CLED (52W)
– Color Temperature: 30K (3000K), 40K (4000K), or 50K (5000K)
– Voltage: MV (120-277V)
– Finish: WHT (White)
– Mounting: CM (Ceiling Mount)
– Options: OCC, PC, EMR, WC (if applicable)
