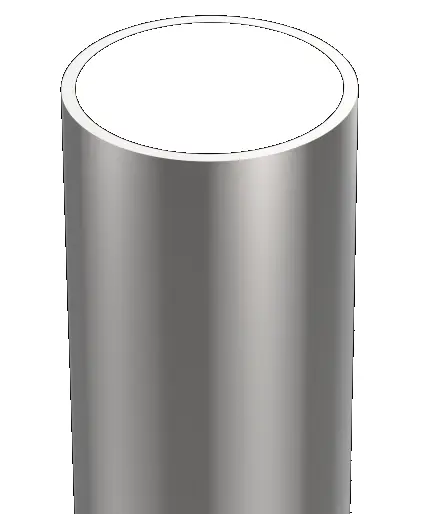

Commercial Light Poles - ROUND STRAIGHT ALUMINUM DIRECT BURIAL POLES

From $600

Product Overview

The CL-RSA Round Straight Aluminum Pole series by Crystal Lighting is a versatile and durable lighting support solution designed for various commercial and municipal applications. These commercial light poles offer excellent strength-to-weight ratio, corrosion resistance, and customizable options to meet diverse lighting needs.



Key Features

– Seamless extruded 6063 Aluminum Alloy construction

– Ground lug welded inside behind hand hole

– 3″x5″ reinforced hand hole frame

– Powder-coated finish for enhanced durability

– Removable pole cap and matching base cover

– Cast hand hole cover with internal bridge support

– Multiple mounting options for versatile lighting configurations

– Made in the USA



Certifications and Compliance

– ASTM B221 compliant aluminum alloy

– ASTM F1554 grade 36 compliant anchor bolts



Technical Specifications

– Heights: 8′ to 30′

– Pole Diameters: 3″, 4″, 5″, 6″ round

– Wall Thickness: .125″, .188″, .250″

– Base Plate: 3/4″ thick (up to 20ft), 1″ thick (21ft and over)

– Bolt Circle: 8″3/16 – 10″3/16 (10′-20′), 10″ – 14″ (20′ and over)

– Anchor Bolts: 3/4″x24″ or 1″x36″

– Maximum EPA: Varies by pole height and wind speed (see EPA chart)

Applications

– Street and roadway lighting

– Parking lot illumination

– Campus and park lighting

– Commercial area lighting

– Municipal lighting projects



Customization Options

– Multiple mounting configurations: Single, Double 180°, Double 90°, Triple 90°, Triple 120°, Quad

– Finish colors: Bronze, White, Silver, Green, Black, Graphite, Custom

– Tenon options: Various sizes in round and square configurations

– Additional features: Marine Grade finish, Round Base Cover, GFI Provision, GFI Kit



Warranty

3-year warranty on powder coat finish



Ordering Information

Use the following format to specify your desired configuration:

CL-RSA-[Height]-[Pole OD]-[Thickness]-[Bolt Circle]-[Anchor Bolt]-[Mounting]-[Finish]-[Options]

Example: CL-RSA-8-4-188-9BP-342-D180-BRZ-T3R



Additional Information

– Poles are sandblasted prior to painting

– Powder coat is applied to a minimum of 3 millimeters and baked at 400°F

– EPA charts available for wind speeds from 90mph to 130mph

– Anchor bolt kit includes 4 L-Shaped Hot Dip Galvanized Bolts with nuts and washers
