From $600
Product Overview

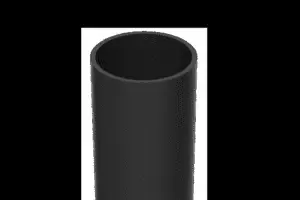

Introducing the CL-RSS Round Straight Steel Pole, a pinnacle of outdoor lighting infrastructure from Crystal Lighting. This meticulously engineered support system redefines durability and adaptability for commercial-grade illumination solutions. Crafted to withstand the rigors of diverse environments, the CL-RSS series embodies a perfect fusion of strength, aesthetics, and functionality.
At the heart of its design is a commitment to superior performance. The CL-RSS utilizes high-grade, cold-rolled carbon steel, ensuring exceptional structural integrity across its entire range. From bustling urban centers to expansive outdoor venues, these poles stand as silent sentinels, providing unwavering support for your lighting fixtures.
Versatility is a hallmark of the CL-RSS series. With heights spanning from a modest 8 feet to an impressive 30 feet, and diameters ranging from 3 to 5 inches, these poles cater to a wide spectrum of lighting design requirements. The customizable nature of the commercial lighting poles allows lighting professionals to tailor each pole to specific project needs, ensuring optimal illumination and visual harmony with its surroundings.
Key Features
– High-strength steel construction
– Cold-rolled, weldable-grade carbon steel tubing
– Multiple height options ranging from 8′ to 30′
– Various diameter options: 3″, 4″, and 5″ OD
– Choice of 11 gauge or 7 gauge thickness
– Hot-rolled carbon steel base plate
– Powder-coated finish for enhanced durability
– Includes ground lug, removable pole cap, and aluminum base cover
– Cast hand hole cover with internal bridge support
Certifications and Compliance
– ASTM A500 Grade B compliant pole shaft
– ASTM-A36 or equivalent compliant base plate
– ASTM F1554 grade 36 compliant anchor bolts
Technical Specifications
– Pole Shaft: Minimum yield strength of 45,000 PSI
– Base Plate: 36,000 PSI yield strength
– Thickness: 3/4″ for poles up to 20ft, 1″ for poles 21ft to 30ft
– Powder Coating: Minimum 3 millimeters thickness
– Anchor Bolts: L-Shaped, Hot Dip Galvanized, 36,000 PSI minimum strength
Applications
– Street and roadway lighting
– Parking lot illumination
– Sports field lighting
– Area and site lighting
– Commercial and industrial complexes
– Educational institutions
– Retail centers
Customization Options
– Multiple height configurations (8′ to 30′)
– Various pole diameters (3″, 4″, 5″ OD)
– Choice of bolt circle sizes
– Multiple mounting options (Single, Double 180°, Double 90°, Triple 90°, Triple 120°, Quad)
– Wide range of finish colors (Bronze, White, Silver, Green, Black, Graphite, Custom)
– Optional marine grade finish
– Various tenon sizes available
– Round base cover option
– GFI provision and kit options
Warranty
CL-RSS poles come with a three-year warranty, ensuring peace of mind and long-term value for your investment.
Ordering Information
Use the following format to specify your custom CL-RSS pole:
Example: CL-RSS-8-4-7G-9BP-342-D180-BRZ-T3R
– CL-RSS: Round Straight Steel Pole
– Height: 8′ to 30′
– Pole O.D: 3″, 4″, or 5″
– Thickness: 11G (.120″) or 7G (.180″)
– Bolt Circle: 9BP (8″3/16 – 10″3/16) or 12BP (10″ – 14″)
– Anchor Bolt: 342 (3/4″x24″) or 136 (1″x36″)
– Mounting: SGL, D180, D90, T90, T120, QD
– Finish: BRZ, WHT, SVR, GRN, BLK, GPH, CST
– Options: MG, T2R, T3R, T312R, T4R, T412R, T312S, T412S, T512S, RBC, GFIP, GFIK
Additional Information
– EPA (Effective Projected Area) charts available for wind load calculations
– Proudly manufactured and assembled in the USA
– Sandblasted prior to painting for superior finish adhesion
– Baked powder coat finish at 400°F for exceptional durability
