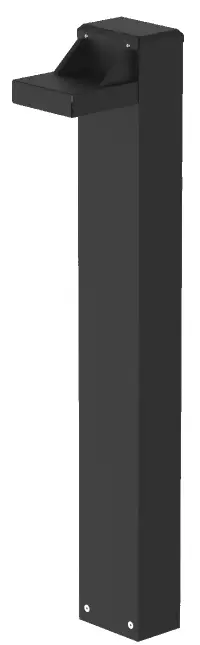

Pathway Lighting Bollards-330FAL-B-Slim architectural bollard

From $600

Product Overview

The CLP-330FAL-B Collection offers a comprehensive architectural LED lighting solution, featuring both sleek bollards and matching area lights designed to create cohesive outdoor illumination schemes. This versatile lighting family combines security with vandal-resistant features, providing uniform illumination for diverse exterior environments. The slim bollards, available in multiple heights, offer precise pathway lighting and landscape accents, while the complementary area lights extend the design language to larger spaces, ensuring consistent aesthetics and performance across the site.

Ideal for enhancing pedestrian walkways, accentuating building exteriors, and illuminating expansive grounds, this collection caters to a wide range of commercial and public spaces. From intimate garden paths to open plazas, The 330FAL Collection allows lighting designers and architects to create seamless, well-lit environments that transition smoothly from ground-level to broader area lighting. This integrated approach to outdoor illumination not only elevates the visual appeal of exterior spaces but also addresses the varied lighting needs of modern urban and commercial landscapes, all while maintaining a unified design aesthetic.



Key Features

– Energy savings of over 66% compared to HID light sources

– Improved lumen maintenance

– High-efficiency LEDs

– Wide operating temperature range: -30°C to 60°C

– Suitable for wet locations

– Extruded aluminum body with powder coat finish

– Clear optical lens for optimal light distribution

– Silicone gasket for weather-tight protection

– Multiple light distribution options: Type 2, 3, 4, and 5



Technical Specifications

– Wattage options: 12W, 16W, 24W, 36W

– Lumen output: 1,812 to 4,608 lumens (model dependent)

– Efficacy: Up to 155 LPW

– Color temperature options: 3000K, 4000K, 5000K

– CRI: 70+

– Rated life (L70): >200,000 hours

– Input voltage: 120-277V (standard), 480V (optional)

– Available heights: 24″, 36″, 42″

– Dimensions: 10″ width, 6″ depth, 3″ base diameter

Applications

– Pedestrian walkways

– Office building exteriors

– Apartment complex grounds

– Hotel landscapes

– Parks and recreational areas

– Commercial landscaping

– Educational campuses



Customization Options

– Height selection: 24″, 36″, 42″

– Wattage options: 12W, 16W, 24W, 36W

– Light distribution: Type 2, Type 3, Type 4, Type 5

– Color temperature: 3000K, 4000K, 5000K

– Finish colors: Black, White, Silver, Bronze, Graphite, Custom

– Optional features:

  – Emergency battery pack

  – Wireless controls

  – Dimming capabilities

  – Occupancy sensors

  – Photocell



Warranty

10-year/100,000-hour limited warranty



Ordering Information

Use the following format to specify your desired configuration:

CLP-330FAL-B-[Length]-[Wattage]-[Light Dist.]-[Color Temp]-[Voltage]-[Finish]-[Mounting]-[Options]

Example: CLP-330FAL-B-36-20W-T3-30K-MV-BLK-BAK12



Additional Information

– Standard mounting includes 3/8″ x 12″ L anchor bolts

– HID equivalents range from 70W to 150W MH/HPS

– Proudly manufactured and assembled in the USA
