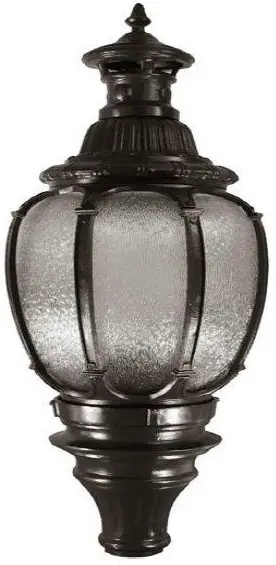

LED Large Acorn Post Top Lighting -07

From $1775

Product Overview

The CLP-ACRN07 LED Post Top fixture is an energy-efficient, long-lasting unique outdoor lighting solution designed for residential commercial and municipal applications. This architectural luminaire combines sophisticated traditional aesthetics with modern LED technology, making it ideal for illuminating upscale outdoor spaces.



Key Features

– Energy savings of over 66% compared to HID light sources

– High-efficiency Philips Lumiled LEDs

– Long operating life of >200,000 hours

– Wide operating temperature range: -30°C to 60°C

– Heavy-duty die-cast aluminum housing with powder coat finish

– Clear prismatic acrylic Type 5 lens (standard)

– Silicone gasket for weather-tight protection

– Suitable for wet locations



Certifications and Compliance

– Buy American Act compliant

– Manufactured and/or assembled in the USA



Technical Specifications

– Input voltage: 120-277V (standard), 480V (optional)

– Input frequency: 50/60Hz

– Color Rendering Index (CRI): 70+

– Color Temperature options: 2700K to 6500K

– Lumen output: 5,022 to 17,591 lumens (depending on model)

– Power consumption: 42W to 129W (depending on model)

– HID equivalents: 175W to 400W

Applications

– Residential exteriors

– Walkways and pathways

– School campuses

– Commercial spaces

– Parking lots

– Recreational parks

– Perimeter lighting



Customization Options

– Lens types: Clear prismatic acrylic (standard), clear prismatic polycarbonate, clear seedy acrylic, opal acrylic, frosted acrylic

– Light distribution: Type III, Type IV, Type V optics

– Finish colors: Bronze, Gray, Black, White, Custom

– Mounting: Standard 3″ round pole top mount, custom pole sizes and shapes available

– Controls: Motion sensor, button photocell, wireless controls

– Dimming capabilities available



Warranty

10-year/50,000-hour limited warranty



Ordering Information

Use the following ordering guide to specify your desired configuration:

CLP-ACRN07-[WATTS]-[COLOR TEMP]-[VOLTAGE]-[FINISH]-[LENS]-[OPTIONS]

Example: CLP-ACRN07-35CLED-50-MV-BZ-OA-TYP5
