Product Overview

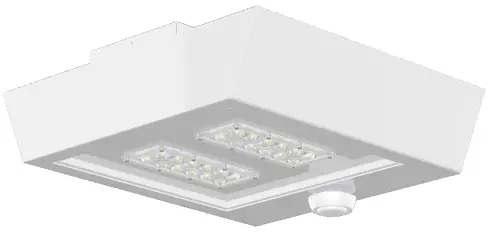

The Century LED Ceiling/Pendant Mount is a versatile, high-performance lighting solution designed for various commercial and industrial applications. This cutting-edge LED canopy light fixture offers superior illumination, energy efficiency, and durability, making it an ideal choice for parking garages, canopies, and other demanding environments.
Key Features
– Optical system optimized for parking garage applications
– Energy savings of over 60% compared to traditional HID light sources
– Utilizes high-efficiency Philips Lumiled LEDs
– Wide operating temperature range: -30°C to 60°C
– 0-10V dimmable driver for flexible light control
– IP65 rated for wet locations
– Multiple mounting options: ceiling mount or pendant mount with various stem lengths
– Customizable light distribution patterns
Technical Specifications
– Wattage Options: 20W, 30W, 40W, 60W, 70W, 80W, 100W
– Lumen Output: 3,650 to 14,640 lumens (model dependent)
– Efficacy: Up to 182 lm/W
– Color Temperature Options: 3000K, 4000K, 5000K
– CRI: 70+
– Input Voltage: 120-277V (standard), 480V (optional)
– Rated Life (L70): >200,000 hours
– Light Distribution Options: Type 2, Type 3, Type 4, Type 5
– Dimensions: 17 3/8″ x 16″ (base), height varies by mounting option
Applications
– Parking garages
– Canopies
– Industrial spaces
– Commercial buildings
– Warehouses
– Manufacturing facilities
Customization Options
– Wattage selection: 20W to 100W
– Color temperature: 3000K, 4000K, 5000K
– Light distribution: Type 2, Type 3, Type 4, Type 5
– Finish colors: Black, White, Silver, Bronze, Graphite, Custom
– Mounting options: Ceiling Mount, Pendant Mount (12″, 24″, 36″)
– Optional features: Motion Sensor, Button Photo Cell, Wireless controls, Emergency Battery Pack
Warranty
10-year / 100,000-hour limited warranty
Ordering Information
Use the following format to specify your desired configuration:
CNT-[Wattage]-[Light Dist.]-[Color Temp]-[Voltage]-[Finish]-[Mounting]-[Options]
Example: CNT-20CLED-T2-40K-MV-BZ-CM-PC
Additional Information
– Housing formed with aluminum material for durability and heat dissipation
– 3mil powder coat finish available in various colors
– Clear optic system for optimal light transmission
– Silicone gasket provides IP65 protection
– Mounting options include direct ceiling mount over a 4″ “J” box or pendant mount
– HID equivalent options ranging from 50W MH to 400W PSMH
