LED Parking Garage Light-Century

From $400

Product Overview

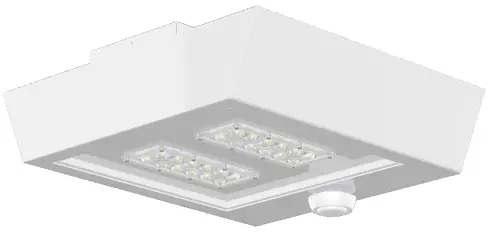

The Century LED Ceiling/Pendant Mount is a versatile, high-performance lighting solution designed for various commercial and industrial applications. This cutting-edge LED canopy light fixture offers superior illumination, energy efficiency, and durability, making it an ideal choice for parking garages, canopies, and other demanding environments.



Key Features

– Optical system optimized for parking garage applications

– Energy savings of over 60% compared to traditional HID light sources

– Utilizes high-efficiency Philips Lumiled LEDs

– Wide operating temperature range: -30°C to 60°C

– 0-10V dimmable driver for flexible light control

– IP65 rated for wet locations

– Multiple mounting options: ceiling mount or pendant mount with various stem lengths

– Customizable light distribution patterns



Technical Specifications

– Wattage Options: 20W, 30W, 40W, 60W, 70W, 80W, 100W

– Lumen Output: 3,650 to 14,640 lumens (model dependent)

– Efficacy: Up to 182 lm/W

– Color Temperature Options: 3000K, 4000K, 5000K

– CRI: 70+

– Input Voltage: 120-277V (standard), 480V (optional)

– Rated Life (L70): >200,000 hours

– Light Distribution Options: Type 2, Type 3, Type 4, Type 5

– Dimensions: 17 3/8″ x 16″ (base), height varies by mounting option

Applications

– Parking garages

– Canopies

– Industrial spaces

– Commercial buildings

– Warehouses

– Manufacturing facilities



Customization Options

– Wattage selection: 20W to 100W

– Color temperature: 3000K, 4000K, 5000K

– Light distribution: Type 2, Type 3, Type 4, Type 5

– Finish colors: Black, White, Silver, Bronze, Graphite, Custom

– Mounting options: Ceiling Mount, Pendant Mount (12″, 24″, 36″)

– Optional features: Motion Sensor, Button Photo Cell, Wireless controls, Emergency Battery Pack



Warranty

10-year / 100,000-hour limited warranty



Ordering Information

Use the following format to specify your desired configuration:

CNT-[Wattage]-[Light Dist.]-[Color Temp]-[Voltage]-[Finish]-[Mounting]-[Options]

Example: CNT-20CLED-T2-40K-MV-BZ-CM-PC



Additional Information

– Housing formed with aluminum material for durability and heat dissipation

– 3mil powder coat finish available in various colors

– Clear optic system for optimal light transmission

– Silicone gasket provides IP65 protection

– Mounting options include direct ceiling mount over a 4″ “J” box or pendant mount

– HID equivalent options ranging from 50W MH to 400W PSMH
