Product Overview

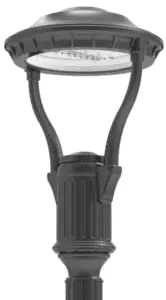

The Eris Architectural LED Luminaire by Crystal Lighting represents the pinnacle of outdoor illumination technology. Designed for versatility and performance, this LED architectural post-top fixture excels in a wide range of commercial and residential applications. The Eris combines sleek design with robust functionality, making it an ideal choice for projects that demand both aesthetic appeal and superior lighting performance.
Engineered to be Dark Sky compliant, the Eris luminaire demonstrates Crystal Lighting’s commitment to responsible outdoor lighting practices. Its adaptable design allows for seamless integration into various environments, from bustling urban centers to serene park settings, all while minimizing light pollution and energy waste.
Key Features
– Superior Energy Efficiency: Over 66% energy savings compared to traditional HID light sources
– Advanced Lumiled LEDs for enhanced lumen maintenance and longevity
– Versatile mounting on standard 3″ O.D. tenon or pole
– Heavy-duty aluminum spun housing with durable 3 mil powder coat finish
– Clear optics system for optimal light distribution
– Weather-tight protection ensured by silicone gasket
– Wide operating temperature range: -30°C to 60°C
– 0-10V Dimming capability for customized lighting control
– 10kV Surge Protector included as standard
Certifications and Compliance
– Dark Sky compliant
– Suitable for wet locations
– Proudly manufactured and assembled in the USA
Technical Specifications
– Wattage Options: 20W, 40W, 50W, 60W, 70W, 80W, 100W, 120W
– Lumen Output Range: 3,650 to 16,012 lumens
– Efficacy: Up to 182 LPW
– Color Temperature Options: 3000K, 4000K, 5000K
– Color Rendering Index (CRI): 70+
– Rated Life (L70): >200,000 hours
– Input Voltage: 120-277V (standard), 480V (optional)
– Light Distribution Options: Type 2, Type 3, Type 4, Type 5
– HID Equivalent: 70W to 400W (depending on LED wattage)
– Dimensions: 16 5/8″ (A) x 30″ (B) x 10″ (C)
– EPA: 1.34
Applications
– Residential exteriors
– Commercial and industrial spaces
– School campuses
– Walkways and pathways
– Perimeter lighting
– Parking lots
– Recreational parks
Customization Options
– Finish Colors: Black, White, Silver, Bronze, Graphite, Custom
– Mounting: 3″ O.D. Tenon or Pole (standard), adapters available for other sizes
– Optional Features:
– Motion Sensor (OCS)
– Button Photocell (PC)
– Wireless controls (WC)
– House Side Shield (HSS)
Warranty
10-year / 100,000-hour warranty
Ordering Information
Use the following format to specify your Eris Architectural LED Luminaire:
ERIS-[Light Distribution]-[Wattage]-[Color Temp]-[Voltage]-[Mounting]-[Finish]-[Options]
Example: ERIS-T3-20CLED-50K-MV-T3R-BZ-HSS
