From $450
Product Overview

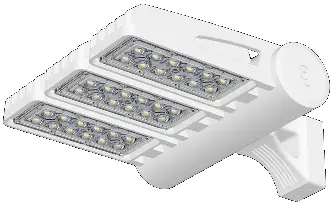

The IO-Series Area LED Luminaire by Crystal Lighting Corp. is a cutting-edge LED area lighting solution designed for commercial and industrial applications. This versatile and energy-efficient fixture combines sleek design with superior performance, making it an ideal choice for various outdoor lighting needs.
The IO-Series offers exceptional versatility with its three distinct size modules: IO-1, IO-2, and IO-3. This range allows for precise scaling of illumination to match your specific project requirements, from smaller areas to expansive spaces. Each module is engineered to deliver optimal performance within its wattage class, ensuring efficient light distribution across various applications.
Complementing this flexibility are the multiple mounting options available, including Arm Mount, Slip Fitter, and Swivel Bracket. These choices enable seamless integration with existing infrastructure or new installations, adapting to different pole types and architectural designs. Whether you’re illuminating a compact parking area or a sprawling industrial complex, the IO-Series provides the adaptability needed to create a tailored lighting solution that meets both functional and aesthetic demands.
Key Features
– High-efficiency Lumiled LEDs for optimal light output
– Low-profile design with external dedicated heat sink for excellent thermal management
– Multiple optical distributions available (Type 2, 3, 4, and 5)
– Energy savings of over 66% compared to traditional HID light sources
– Corrosion-resistant aluminum housing with durable powder coat finish
– Wide operating temperature range: -30°C to 60°C
– IP65 / IP67 rated for superior weather protection
– 0-10V dimming capability
Certifications and Compliance
– IP65 / IP67 rated
– Proudly manufactured and assembled in the USA
Technical Specifications
– Wattage options: 20W to 180W
– Lumen output: 3,120 to 26,250 lumens
– Efficacy: Up to 156 LPW
– Color temperature options: 3000K, 4000K, 5000K
– CRI: 70+
– Rated life: >200,000 hours (L70)
– Input voltage: 120-277V (standard) or 480V (optional)
– HID equivalent: 100W MH to 750W MH
Applications
– Architectural building illumination
– School campuses
– Storage areas
– Parking lots
– Recreational parks
Customization Options
– Three size modules: IO-1, IO-2, and IO-3
– Multiple mounting options: Arm Mount, Slip Fitter, Swivel Bracket
– Color finishes: Black, White, Bronze, Silver, Graphite, Marine Grade
– Optional features: Occupancy Sensor, Button Photo Cell, Wireless Controls, House Side Shield
Warranty
10-year/100,000-hour limited warranty
Ordering Information
Use the following format to specify your IO-Series fixture:
[Series]-[Wattage]-[Light Distribution]-[Color Temperature]-[Voltage]-[Color]-[Mounting]-[Options]
Example: IO1-50CLED-T2-40K-MV-BRZ-AM-OCC
Environmental Impact
By choosing the IO-Series, you’re not only investing in superior lighting but also contributing to a more sustainable future. The significant energy savings and long lifespan of these fixtures help reduce carbon footprint and minimize waste, aligning with green building initiatives and corporate sustainability goals.
