From $300
Product Overview

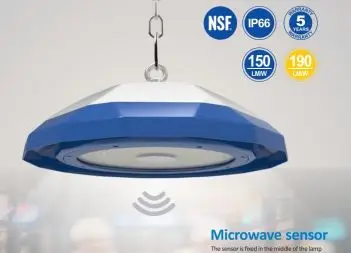

The DIAMOND NSF Food Grade High bay is a high-performance LED lighting solution designed specifically for environments that require stringent hygiene standards. This NSF-certified fixture combines superior illumination with durability and washability, making it ideal for food processing, pharmaceutical, and other sensitive industrial applications.
Key Features
– High efficacy: 150LM/W & 190LM/W options
– IP66 & IP69K rated: Can be washed directly
– Wide operating temperature range: -40°C to 45°C
– 115° beam angle for broad coverage
– Lumileds SMD LED for high-quality light output
– Corrosion-resistant housing
– No harmful substances or chemicals
– Optional microwave sensor for energy savings
Certifications and Compliance
– UL Listed (E357402)
– NSF Certified (Food Grade)
– [Note: Additional certifications may apply. Please confirm with manufacturer.]
Technical Specifications
– Wattage options: 80W, 100W, 150W, 200W
– Input voltage: AC100-277V / AC100-347V / AC277-480V
– Color Temperature: 3000K, 4000K, 5000K, 5700K
– CRI: >80
– Lumen output:
– 150LM/W: 12,000lm to 30,000lm (model dependent)
– 190LM/W: 15,200lm to 38,000lm (model dependent)
– Dimming: 0-10V
– Dimensions: Φ17.08″ x 7.56″
Applications
– Food processing facilities
– Pharmaceutical factories
– Farm / animal buildings
– Car washes
– Fresh food shops
– Supermarkets
Customization Options
– Wattage selection
– Color temperature selection
– Input voltage options
– Housing color: White, red, blue, green, black
– Mounting options: Suspending (O-hook) or Pendant (3/4″ NPT)
– With or without microwave sensor
– Special applications: LED Fresh Food Light with specific color recipes
Warranty
5-year warranty
Ordering Information
Use the following format to specify your desired configuration:
XSY-HBD[Q]-[XXW]-[XXK]-[AA]-[Y]-[Z]-[T]
Example: XSY-HBDQ-100W-40K-AA-SV-D-T
– Q: Region (E: Europe, U: America, Blank: Australia)
– XXW: Wattage (80W, 100W, 150W, 200W)
– XXK: Color Temperature (30K, 40K, 50K, 57K)
– AA: Efficacy (A: 190lm/w, B: 150lm/w)
– Y: Input Voltage (SV: AC100-277V, LV: AC100-347V, HV: AC277-480V)
– Z: Sensor (S: With, D: Without)
– T: Mounting (D: Suspending, G: Pendant)
Additional Information
– Special LED Fresh Food Light options available for specific food display applications
– Easy installation with O-hook or pendant mounting options
– Packaging and shipping information available for bulk orders
