From $200
Product Overview

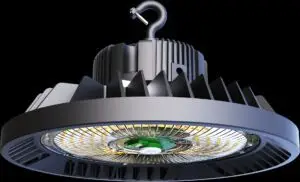

The Aurora Series LED High Bay is an advanced lighting solution designed for commercial and industrial environments. This round LED fixture combines cutting-edge technology with robust construction to deliver exceptional illumination and energy efficiency. Ideal for retrofit projects, the Aurora Series offers a perfect blend of performance, durability, and versatility, making it suitable for a wide range of high-ceiling applications.
Key Features
– High Efficiency: Utilizes premium Philips Lumileds for optimal energy efficiency and light output.
– Durable Construction: Features a die-cast aluminum heat sink and corrosion-resistant polyester powder-coated body.
– Versatile Operation: Functions flawlessly in ambient temperatures up to 50°C (122°F).
– Waterproof Design: IP66-rated for use in damp and wet locations.
– Impact Resistant: IK10-rated for superior protection against physical impacts.
– Flexible Mounting Options: Available with hook/hang ring and U-bracket mounting systems.
– Smart-Ready: Equipped with a ready socket for universal plug-and-play motion sensors.
– Multiple Lens Options: Customizable light distribution to suit various application needs.
– Emergency Options: Available configurations for critical lighting scenarios.
– Sensor Integration: Optional integrated motion and daylight sensors for enhanced energy savings.
Certifications and Compliance
– UL Listed for safety
– DLC Premium 5.1 certified for energy rebate eligibility
– IP66 waterproof rating
– IK10 impact resistance rating
Technical Specifications
– Color Temperature: 4500-5500K (Standard), 2500-6500K (Optional)
– Color Rendering Index (CRI): ≥70
– Lifespan: L70 > 120,000 hours
– Input Voltage: 100-277 VAC, 100-347 VAC, 277-480 VAC options
– Power Factor: 0.95 minimum
– Operating Temperature: -45°C to +50°C (-49°F to 122°F)
– Storage Temperature: -45°C to +80°C (-49°F to 176°F)
– Humidity Range: 15% to 95% RH
– Dimensions: 280 × 280 × 169mm (11 × 11 × 16.7in)
– Weight: Varies by model, ranging from 2.6kg (5.7lbs) to 5.3kg (11.7lbs)
Applications
– Warehouses and Distribution Centers
– Manufacturing Facilities
– Gymnasiums and Sports Arenas
– Retail Spaces
– Exhibition Halls
– Airport Hangars
– Cold Storage Facilities
Customization Options
– Color Temperature: Choose from standard (4500-5500K) or optional (2500-6500K) ranges
– Wattage: Multiple dedicated wattage options available
– Voltage: Select from 100-277 VAC, 100-347 VAC, or 277-480 VAC
– Lens Types: Various lens options for tailored light distribution
– Mounting: Hook/hang ring or U-bracket mounting systems
– Sensors: Optional integrated motion and daylight sensors
Warranty
5-year limited warranty
Ordering Information
To order the Aurora Series LED High Bay, please specify:
- Desired wattage
- Color temperature
- Input voltage range
- Lens type
- Mounting option
- Sensor requirements (if any)
- Emergency lighting option (if required)
Experience the future of commercial lighting with the Aurora Series LED High Bay – where premium performance meets unparalleled versatility.
