From $850

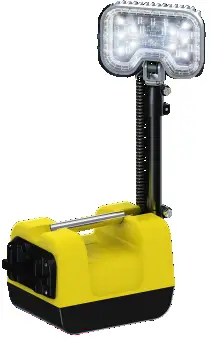

Introducing the Venas EX-MV01, the world’s first Class I Division 1, ATEX Zone 0, and IECEx ia safety certified remote area light. Designed to provide safe and reliable lighting in hazardous areas, this LED lantern is perfect for use in various industrial applications, including oil and gas, chemical plants, and other volatile work environments. The EX-MV01 LED explosion proof lighting offers exceptional performance with up to 1,600 lumens of output and up to 10 hours of run time, making it ideal for full work shifts.
Key Features
– High Output: Provides up to 1,600 lumens (calculated) with a 125° beam angle.
– Long Run Time: Up to 10 hours of continuous operation.
– Light Modes: Dual light modes (High/Low) with a flashing indicator for low battery warning.
– Portable and Lightweight: Weighs only 15.4 lbs (7 kg) and is completely collapsible for easy transport and quick setup.
– Safety Certified: Suitable for use in the most volatile work areas, certified for Class I, Division 1, ATEX Zone 0, and IECEx ia safety standards.
– Deployable Mast: Features a 360-degree rotation and multiple deployment positions.
Materials
– Body: Plastic
– Head: Aluminum Alloy
– Lens: Plastic
Specifications
– Lumens (Strong Light): 1600
– CCT Range: 3000-6500K
– Lumens (Work Light): ≥500
– Lamp Heads: 1
– Lamp Type: LED
– Beam Spread: 125°
– IP Rating: IP20
– Battery Type: Ni-MH
– Battery Capacity: 10.8V, 9Ah
– Rated Power: 5-19.5W
– Run Time: Up to 10 hours
– Charge Volts: DC10.8V~14.4V
– Voltage: 10.8V (Battery); AC100V/277V (Charger)
– Battery Level Indicator: Full-time display with low battery warning (visible flashing)
– Weight: 15.4 lbs (7 kg)
– Dimensions (L×W): 355 mm (14.0 in) × 205 mm (8.1 in)
– Deployable Height 1: Min. 567 mm (22.3 in), Max. 800 mm (31.5 in)
– Deployable Height 2: Min. 636 mm (25.0 in), Max. 910 mm (35.8 in)
Certifications
– UL913 Marking: Class I, Division 1, Groups A, B, C, and D, T4
– ATEX Marking: II 1G Ex ia IIC T4 Ga
– IECEx Marking: Ex ia IIC T4 Ga
Applications
– Oil and Gas Industry: Suitable for all petroleum production, refining, loading, transportation, storage, and retail.
– Chemical Industry: Ideal for paint facilities, chemical production, and storage.
– Marine and Aerospace: Designed for ocean platforms, marine operations, and aerospace production.
– Metal Treatment: Perfect for steel and aluminum factories, metal smelting, foundry, and fabrication.
– Food and Alcohol Industry: Used in flour production, food and distilling production, and the alcohol industry.
– Other Applications: Suitable for any high humidity, high dust, high temperature, and vapor locations.
Accessories
– Charger (USA)
– Charger (EU)
– Replacement Battery
Packaging
Information
– Carton Size (L×W×H): 568 mm (22.4 in) × 351 mm (13.8 in) × 365 mm (14.4 in)
