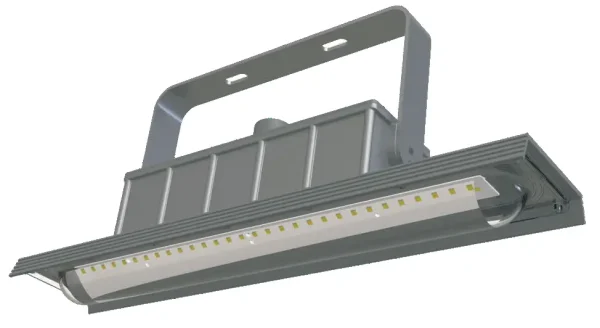

Explosion Proof LED Linear Lighting - H Series

From $400

The H Series Explosion Proof Linear Low Bay LED Luminaire by Venas Co., Ltd. is designed to provide reliable and efficient lighting in hazardous locations. With robust construction, high durability, and energy-efficient LED technology, this luminaire is perfect for environments with explosive gases, dust, or fibers. It is ideal for use in the oil and gas industry, chemical plants, marine operations, and other industrial settings.



Key Features

High Durability and Reliability: Constructed with high-quality die-casting aluminum housing and stainless steel hardware to withstand harsh environments.

Energy Efficient: Delivers high lumens per watt, ensuring maximum energy savings.

Wide Range of CCT and Colors: Offers color temperatures from 2200K to 7000K.

Robust Construction: Heavy-duty and high impact resistance.

Durability: Rated IK10 for impact resistance and IP66 for protection against dust and water.

Operating Temperature: Functions effectively in temperatures ranging from -40°C to +60°C.

Mounting Options: Various installation methods including ceiling, wall, and pole mounting.

Voltage Compatibility: Supports AC100-277V, AC200-480V, or DC12-48V input ranges.

Emergency Backup: Provides up to three hours of emergency lighting.

Long Lifespan: Up to 50,000 hours of operational life.

Dimmable and Battery Backup Options: Available as needed for specific applications.



Materials

Housing: Die-casting Aluminum

Lens: Polycarbonate (PC)

Hardware and Mounting Bracket: Stainless steel

Certifications and Compliance

ATEX Marking: II3 G Ex ec IIC T5/T6 Gc, Il2 D Ex tb IIIC T80/100°C Db IP66

IECEX Marking: Ex ec IIC T5/T6 Gc, Ex tb IIIC T80/100°C Db IP66

UL844 Marking:

  – Class I, Division 2, Groups A, B, C, D

  – Class II, Division 1, Groups E, F, G

  – Class II, Division 2, Groups F, G

  – Class III

Marine Marking: UL1598, UL1598A, ABS.

Other Ratings: IP66 for wet locations.

Technical Specifications

| Product Number  | Wattage | Lumens | Color Temperature | Voltage          | CRI  | Warranty | Dimensions (mm)          | Net Weight (kg) | Gross Weight (kg) |

|—————–|———|——–|——————-|——————|——|———-|————————–|—————–|——————|

| EX-20W H2YZDA   | 20W     | 2800   | 2200K-7000K       | AC100-277V / AC200-480V / DC12-48V | 80   | 5 years  | 600 x 119.5 x 122        | 4               | 9                |

| EX-40W H2YZDA   | 40W     | 5600   | 2200K-7000K       | AC100-277V / AC200-480V / DC12-48V | 80   | 5 years  | 600 x 119.5 x 122        | 4               | 9                |

| EX-40W H4YZDA   | 40W     | 5600   | 2200K-7000K       | AC100-277V / AC200-480V / DC12-48V | 80   | 5 years  | 1200 x 119.5 x 122       | 5.5             | 14.5             |

| EX-60W H4YZDA   | 60W     | 8400   | 2200K-7000K       | AC100-277V / AC200-480V / DC12-48V | 80   | 5 years  | 1200 x 119.5 x 122       | 5.5             | 14.5             |

| EX-80W H4YZDA   | 80W     | 11200  | 2200K-7000K       | AC100-277V / AC200-480V / DC12-48V | 80   | 5 years  | 1200 x 119.5 x 122       | 5.5             | 14.5             |

Applications

Oil and Gas Industry: Suitable for all petroleum production, refining, loading, transportation, storage, and retail.

Chemical Industry: Ideal for paint facilities, chemical production, and storage.

Marine and Aerospace: Designed for ocean platforms, marine operations, and aerospace production.

Metal Treatment: Perfect for steel and aluminum factories, metal smelting, foundry, and fabrication.

Food and Alcohol Industry: Used in flour production, food and distilling production, and the alcohol industry.

Other Applications: Suitable for any high humidity, high dust, high temperature, and vapor locations.



Ordering Information

Product Code: H2, H4.

Dimming Options: Dimmable (D) or Non-dimmable (N).

Color Temperature: 2200K to 7000K (Z).

Beam Angle: 120° (D120).

Cover Info: Flat cover (blank) or spherical cover (A).



Installation Options

Ceiling Mounting

Wall Mounting

Pole Mounting



Accessories

Junction Box: Model Ex-Junction01, made of Aircraft Aluminum A383

Installation Hook: Model EX-Hook, made of Aircraft Aluminum A383

Metal Conduit: Model Ex-Conduit01, made of Stainless Steel and Aluminum

Winding Swing Pipe: Models EX-SPipe and EX-WPipe, made of Iron with Powder Coating

Pendant Direction Adapter: Model Ex-D01, made of Aircraft Aluminum A383

Surface Mounting Arm: Model EX-MArm, made of Aircraft Aluminum A383

– *Pole Supports: 25° and 90°, models EX-25PSupport and EX-90PSupport, made of Aircraft Aluminum A383

Arms to Junction Box: 25° and 90°, models EX-25JSupport and EX-90JSupport, made of Aircraft Aluminum A383
