LED Tri-Proof, resistant to water, dust, dampness, and pressure

From $200

Product Overview

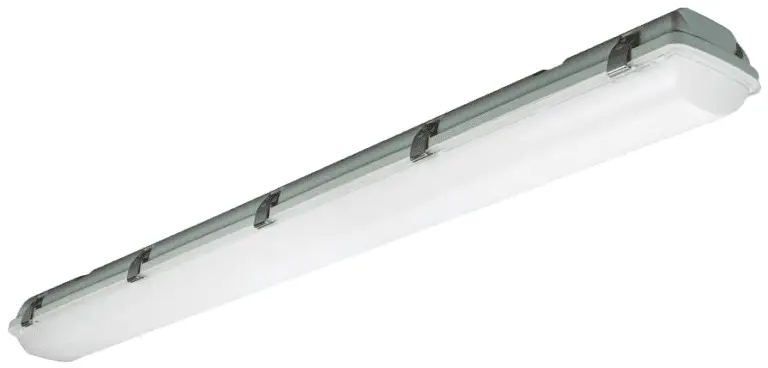

The Falcon LED Tri-Proof Light is Beyond LED’s latest and most advanced lighting solution. This versatile fixture combines multiple fixtures into one with its adjustable wattage and color temperature options. Engineered to resist water, dust, dampness, and pressure, the Falcon is ideal for challenging environments that demand reliable, high-quality illumination.


Key Features

– Adjustable wattage (38W/46W/54W) and CCT (3500K/4000K/5000K)

– High efficacy up to 130 lumens per watt

– IP65 rated for water and dust resistance

– Wide operating temperature range: -40°C to 50°C

– 0-10V dimming capability

– 12V Auxiliary output for compatibility with control systems

– Easy installation with surface mount or suspension options

– Extruded aluminum housing with corrosion-resistant polycarbonate cover


Certifications and Compliance

– UL Listed

– Suitable for wet locations

– IP65 rated


Technical Specifications

– Model: BLT-DP-B-4FT/54/46/38/YDM/CCT(A3+B7)

– Input Voltage: 120-277V

– Frequency: 50/60Hz

– Lumens: Up to 7020lm

– CRI: >80

– Beam Angle: 110°

– Power Factor: >0.9

– THD: <20%

– Flicker Percent: <10%

– LED Brand: Bridgelux

– LED Quantity: 392 Pcs

– Driver Brand: Simon

– Dimensions: 49.8″ x 5.0″ x 3.6″


– Industrial facilities

– Warehouses

– Parking garages

– Food processing areas

– Outdoor covered areas

– Any location requiring moisture and dust resistance


Customization Options

– Adjustable wattage: 38W, 46W, or 54W

– Adjustable color temperature: 3500K, 4000K, or 5000K

– Lens customization available (contact manufacturer for details)

– Optional plug-and-play sensor for additional control



5-year standard warranty


Ordering Information

SKU: 156657

Model: BLT-DP-B-4FT/54/46/38/YDM/CCT(A3+B7)


Additional Information

– Includes surface mount kit, V-hooks, and waterproof joint

– DIP switches for easy wattage and CCT adjustment

– Photometric data and detailed installation instructions available

– Packaging: Individual inner box and 4-piece outer box options
