From $185
Product Overview

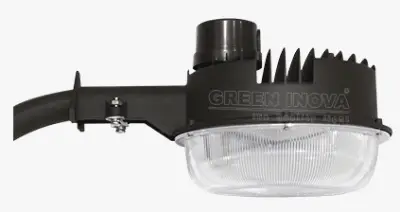

The Green Inova 4BL Series LED Barn Light is a high-performance, energy-efficient lighting solution designed for commercial and industrial outdoor applications. This versatile outdoor security lighting combines cutting-edge LED technology with robust construction to deliver superior illumination and long-lasting durability. With its compact design and excellent uniform light distribution, the 4BL Series is ideal for replacing traditional metal halide and high-pressure sodium fixtures while providing significant energy savings.
Key Features
– High-efficiency Nichia LED chips with L90>50,000 hours lifespan
– Die-cast aluminum gasketed enclosure for weatherproof operation
– Integrated thermal management system for optimal heat dissipation
– Easy installation with wall or arm mounting options
– Protective powder coating for lasting appearance
– Available with twist-lock photocell sensor for automatic operation
– Energy savings of 60-80% compared to traditional lighting
– Low profile design with prismatic lens for uniform light distribution
– UL-listed driver for reliable performance
Certifications and Compliance
– DLC (DesignLights Consortium) Listed (Model: 4BL45L50B1)
– UL/cUL Listed (E352762)
– CE and RoHS compliant (available upon request)
– LM79 / LM80 / IES reports available
Technical Specifications
– Model: 4BL45L50B1 (45W version)
– Luminous Flux: 5,281.3 lumens
– Efficacy: 119.08 lm/W
– Input Voltage: AC 100-277V, 50~60Hz
– Color Temperature Options: 4100K, 4500K, 5000K
– Color Rendering Index (CRI): ≥75
– Beam Angle: 120°
– Power Factor: >0.98
– Total Harmonic Distortion (THD): <10%
– IP Rating: IP65
– Operating Temperature Range: -35°C to 55°C (-31°F to 131°F)
– Dimensions: 340 x 182 mm (13.4″ x 7.2″)
Applications
– Commercial and industrial yards
– Driveways and parking areas
– Agricultural barns and outbuildings
– Docks and marine facilities
– Warehouses and storage facilities
– Security lighting for buildings
– Recreational areas and parks
– Retail and business exteriors
Customization Options
– Wattage: 45W (other options may be available upon request)
– Color Temperature: 4100K, 4500K, 5000K
– Finish Colors: Bronze, White, Black
– Driver Options: UL driver or Meanwell driver
– Voltage: 100-277V or 347-480V
– Sensor: Available with or without photocell sensor
Warranty
– 5-year limited warranty
Ordering Information
Use the following format to create your order:
4BL[Wattage][Voltage][CCT][Finish][Driver][Sensor]
Example: 4BL45L50B1P for a 45W, 100-277V, 5000K, Bronze finish, UL driver with photocell sensor
Installation and Maintenance
– Simple installation with direct wall mounting or arm mounting options
– Minimal maintenance required due to long 50,000-hour lifespan
– IP65 rating ensures protection against dust and water ingress
– Durable construction reduces need for frequent replacements
Energy Savings and Sustainability
By choosing the Green Inova 4BL Series LED Barn Light, you’re investing in energy-efficient lighting that offers:
– Replacement for up to 175W metal halide or high-pressure sodium fixtures
– Significant reduction in energy consumption and operating costs
– Long lifespan reducing waste and replacement frequency
– Mercury-free LED technology for environmentally friendly lighting
For more information, detailed specifications, or to discuss your specific outdoor lighting needs. Our team is ready to help you enhance your exterior spaces with our efficient and reliable LED lighting solutions.
