Product Overview

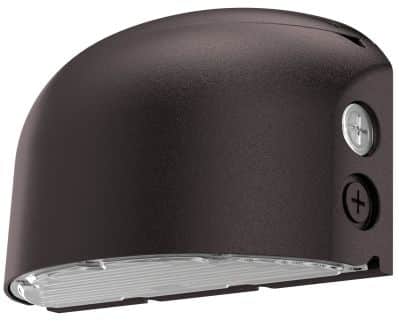

The 06-WPHM Half Moon Full Cutoff Wall Pack is a premium commercial LED wall pack engineered for performance, durability, and flexibility. Designed with a sleek half-moon profile, this fixture combines architectural appeal with powerful illumination. Featuring lumen and Kelvin selectable options, the WPHM series allows end-users to adjust brightness and color temperature on-site for maximum versatility. Built with die-cast aluminum housing, IP65 weather protection, and long-life LEDs rated up to 160,000 hours (L70), this wall pack is an ideal solution for building perimeters, security lighting, and commercial property illumination.
Key Features
-
Field-Selectable Output: Choose between multiple lumen packages and three CCT options (3000K, 4000K, 5000K) in one fixture.
-
Energy Efficient Performance: High efficacy up to 152 lm/W ensures reduced operating costs without compromising brightness.
-
Integrated Photocell: Factory standard photocell with enable/disable switch for dusk-to-dawn operation.
-
Advanced Durability: Premium powder-coat finish, impact-resistant lens, and IP65 wet-location rating.
-
Full Cutoff Optics: Minimized light trespass with precise, uniform illumination.
-
Dimming Control: 0-10V dimming driver standard; compatible with major control systems.
-
Surge Protection: 4kV/6kV transient surge suppression for reliability in demanding environments.
Certifications and Compliance
-
cULus Listed for wet locations.
-
FCC Part 15 Class A compliant.
-
IP65 Rated for dust and water ingress protection.
-
IK08 Rated for impact resistance.
Technical Specifications
Electrical:
-
Voltage: 120–277V AC (50/60Hz) universal input
-
Power Factor: >0.90
-
THD: <20%
-
Operating Temp: -40°F to 122°F
Optical:
-
CCT: 3000K, 4000K, 5000K selectable
-
CRI: >80
-
Lens: Polycarbonate, precision-engineered optics
Models & Performance:
-
06-WPHM-875L-3CCT: 5,483–8,352 lumens | 40–68W
-
06-WPHM-13108L-3CCT: 8,165–13,690 lumens | 60–100W
Lumen Maintenance:
-
L70 > 160,000 hours
-
L90 > 48,000 hours
Dimensions & Weight:
-
875L Model: 10.46″ × 6.76″ × 4.51″ | 3.8 lbs
-
13108L Model: 13.98″ × 8.72″ × 6.04″ | 6.4 lbs
Applications
-
Building exteriors and perimeter security lighting
-
Warehouses, factories, and industrial facilities
-
Commercial storefronts and retail centers
-
Schools, campuses, and public institutions
-
Parking structures and walkways
Customization Options
-
Lumen output (Low, Medium, High selectable)
-
CCT (3000K, 4000K, 5000K)
-
Photocell control (enable/disable)
-
Dimming compatibility with leading dimmers (Leviton, Lutron, Best Lighting)
Warranty
-
5-Year Limited Warranty covering LEDs, driver, and housing against manufacturing defects.
Ordering Information
Series: 06-WPHM
-
875L-3CCT → Selectable 5,000 / 7,000 / 8,000 lm | 3000K / 4000K / 5000K
-
13108L-3CCT → Selectable 8,000 / 10,000 / 13,000 lm | 3000K / 4000K / 5000K
Example Ordering Code:
06-WPHM-875L-3CCT
