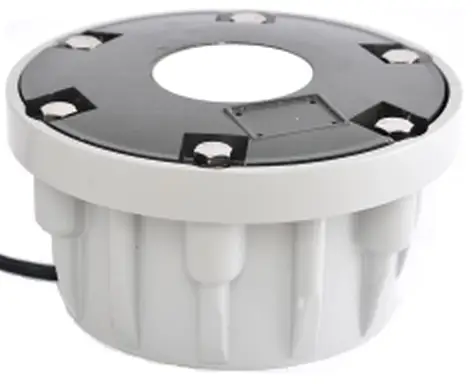

LED 8’’ Flush Heliport FATO & Aiming Point Light;

From $400

Product Overview

The HL-50 is a high-performance, flush-mounted LED light designed for heliport perimeter illumination. This versatile fixture provides reliable, omnidirectional lighting for night operations, enhancing safety and visibility at various helipad locations. With its durable construction and advanced optical design, the HL-50 exceeds industry standards and offers long-lasting performance in demanding environments.



Key Features

– Flush mount design with only 15mm above grade after installation

– Omnidirectional light output

– Universal voltage compatibility (90V~265V AC, 50Hz or 60Hz)

– Heat and corrosion-resistant lens for superior outdoor performance

– Unique optical lens design exceeding ICAO requirements

– Easy installation with waterproof cable glands on mounting can

– Die-cast aluminum body with stainless steel hardware

– IP68 rated for water and dust protection

– 100,000-hour LED lifespan



Certifications and Compliance

– ICAO Annex 14, Volume II, 4th Edition, July 2013

– FAA AC150/5390-2C

– Exceeds FAA Engineering Brief 87 Specifications



Technical Specifications

– Power consumption: <20W

– Input voltage: 90V to 265V AC, or 10V to 30V DC

– Light color: Green (standard), other colors available

– Light intensity: >3cd to >30cd (depending on elevation angle)

– Operating temperature: -30°C to 70°C

– Wind resistance: Up to 80m/s

– Dimensions: φ22cm x 13cm height (with mounting can)

– Weight: 5.5KG

Applications

– Rooftop helipads

– Ground-level heliports

– Ship-based helipads

– Helidecks

– TLOF/FATO edge area illumination

– Flight path alignment lights

– Landing direction lights

– Taxiway edge lights (blue)



Customization Options

– Color options: Green, Blue, Red, Yellow, Infrared

– Variable brightness control (3 levels)

– Switchable dual colors (e.g., Red/Green for landing signals)

– NVG compatibility (combining normal color LED with infrared LEDs)

– AC or DC power input



Warranty

2-year limited warranty



Ordering Information

Use the following format to specify your desired configuration:

HL-50-[Color]-[Voltage]-[Options]

Example: HL-50-G-AC-VB

– Color: G (Green), B (Blue), R (Red), Y (Yellow), IR (Infrared)

– Voltage: AC (100/250V) or DC (10/30V)

– Options:

  – Standard (includes mounting can)

  – VB (Variable brightness)

  – SC (Switchable dual color)

  – NVG (NVG Compatibility).



Additional Information

– Powder coating finish for enhanced durability

– High borosilicate glass lens for heat and corrosion resistance

– Dimming function available with customized controller

– VHF control option with customized controller
