LED explosion-proof exit signs are life-safety emergency luminaires engineered for classified hazardous environments where flammable gases, vapors, or combustible dust may be present. These certified fixtures provide clearly illuminated egress markings while containing internal electrical components to prevent ignition of surrounding atmospheres.
Designed for industrial facilities operating under Class I Division 1 or Division 2 requirements, explosion-proof exit signs combine sealed enclosures, corrosion-resistant construction, and integrated battery backup systems to maintain visibility during power failure. In hazardous process areas, compliant egress lighting is not optional — it is a regulatory and operational necessity.
Life-safety indicators such as these operate within the broader hazardous location LED lighting ecosystem governing hazardous locations.
Explosion-Proof Exit Signs

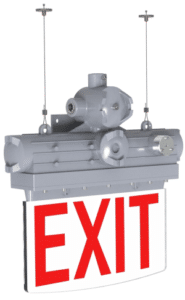

C1D1 Explosion Proof LED Exit Sign
EX-5W; Exit Sign+Emergency Back Up
Battery; 100-277V; EM BU up to 180 min; Double-sided; Class 1,Division 1, Groups B,C,D; UL1598/UL1598A/UL844/UL924; Prices start at $925

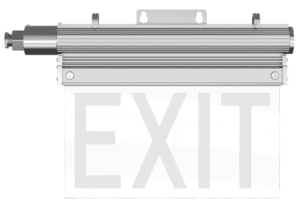

C1D2 Explosion Proof LED Exit Sign
EX-5W Exit Sign; 100-277V; Class 1,Division 2, Groups A,B,C,D; UL 924, ABS; Prices start at $535

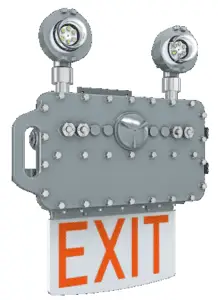

EX-8W J series; Exit Sign+Emergency Back Up
Battery + Spot Lights; 100-277V; EM BU up to 180 min; Class 1,Division 1, Groups C,D; Class 1,Division 2, Groups A,B,C,D; UL1598/UL1598A/UL844/UL924; Prices start at $1795
Exit Light J Series Exit Sign+Emergency Back Up Battery
3W JCIDI; 3W 3 hours;; UL1598/UL1598A/UL844/UL924
AC100-277V/DC12-48V; Prices start at $
What Is an LED Explosion-Proof Exit Sign?
LED explosion-proof exit signs are life-safety emergency luminaires engineered for hazardous environments where flammable gases, vapors, or combustible dusts may be present. These fixtures combine certified explosion-proof enclosures with clearly illuminated exit legends to ensure safe evacuation while preventing ignition of surrounding atmospheres.
Unlike standard commercial exit signs, explosion-proof models are built with sealed housings, reinforced lenses, and hazardous location ratings suitable for Class I Division 1 and Division 2 areas. They are designed to operate continuously and provide emergency illumination during power failure through integrated battery backup systems.
Explosion-proof exit signage functions within the broader explosion-proof LED lighting system governing classified industrial spaces.
For a complete technical overview of hazardous location classifications, certification standards, and fixture selection methodology, refer to our Explosion-Proof Lighting Standards & Selection Guide.
Where Explosion-Proof Exit Signs Are Required
Explosion-proof exit signs are required wherever emergency egress must be clearly marked inside classified hazardous locations.
Common installation areas include:
-
Refinery processing units
-
Chemical manufacturing facilities
-
Fuel handling stations
-
Grain handling and dust-prone facilities
-
Paint spray booths
-
Enclosed compressor stations
-
Hazardous equipment rooms
-
Storage tank access corridors
These fixtures ensure compliant evacuation pathways even during power loss or emergency shutdown events.
Core Specifications & Performance Considerations
When specifying explosion-proof exit signs, key considerations include:
-
Hazardous location rating (Class I Div 1 / Div 2 or Zone equivalent)
-
UL844, ATEX, or IECEx certification
-
IP-rated sealed enclosure
-
Corrosion-resistant housing
-
High-visibility LED legend illumination
-
Minimum 90-minute battery backup runtime
-
Compliance with NEC, NFPA 101, and OSHA egress standards
Selection is driven by both hazardous classification and life-safety code requirements.
Selecting the correct exit signage for a hazardous location requires more than choosing an illuminated EXIT sign. Review our Explosion-Proof Exit Signs Guide for guidance on hazardous-area applications, safety considerations, classifications, and emergency egress planning.
Industrial Applications & Environmental Context
Explosion-proof exit signs are deployed in environments where standard egress signage would present ignition risk.
Industries include:
-
Oil & gas
-
Petrochemical processing
-
Pharmaceutical production
-
Mining operations
-
Food processing in classified zones
-
Heavy industrial manufacturing
In these settings, exit signage must provide visibility, durability, and certified containment of internal electrical components.
Inline Buyer Q&A
How do I select an explosion-proof exit sign for a hazardous location?
Start with the facility’s hazardous-area classification, required certifications, mounting location, voltage, emergency-runtime requirements, and environmental conditions. The exit sign must be specifically rated for the classified location where it will be installed.
Do I need a Class I Division 1 or Class I Division 2 exit sign?
That depends on the hazardous-area classification established for the installation location. Class I Division 1 and Class I Division 2 represent different levels of potential exposure to flammable gases or vapors, so the fixture certification must match the designated area.
Should I specify an explosion-proof exit sign with emergency battery backup?
For emergency egress applications, battery backup is an important specification consideration. Confirm required emergency runtime and applicable life-safety requirements when selecting the fixture.
What else should I consider besides the hazardous-location rating?
Consider visibility, mounting configuration, operating temperature, ingress protection, corrosion resistance, voltage, emergency operation, and the certifications required for the facility.
Specify the Right Explosion-Proof Exit Sign
Hazardous-location exit signage must satisfy both emergency-egress requirements and the electrical classification of the installation area. Selecting the correct certification, hazardous-location rating, emergency backup, mounting configuration, and environmental protection is critical.
Our lighting specialists can help identify an appropriate solution for refineries, chemical plants, processing facilities, manufacturing operations, and other classified environments.
👉 Specify Your Hazardous Location Lighting Requirements or call 1-844-533-7767 to discuss your project.
Frequently Asked Questions
Do explosion-proof exit signs require battery backup?
Yes. Most life-safety codes require a minimum 90-minute battery backup to ensure illumination during power outages.
Are explosion-proof exit signs required in all hazardous areas?
They are required where exit pathways pass through classified hazardous locations and where egress signage must remain illuminated under emergency conditions.
What classifications do explosion-proof exit signs support?
Fixtures are available for Class I Division 1, Class I Division 2, and equivalent Zone classifications depending on certification.
How are explosion-proof exit signs different from standard exit signs?
Standard exit signs are not sealed or rated for hazardous environments and may ignite flammable atmospheres. Explosion-proof versions contain internal ignition sources and are certified for classified areas.
