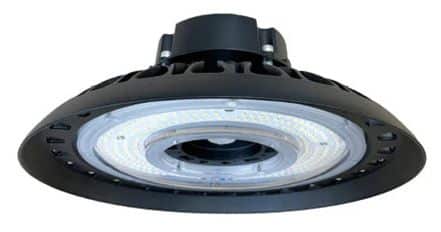

LED High Bay Waterproof UFO Fixture, U-HBHO/UHB, Industrial Lighting for Hangars, Manufacturing and Cold Storage Warehouses

Product Overview

Transform your commercial and industrial spaces with the LED Tunable UFO High Bay, an advanced lighting solution engineered for maximum versatility and energy efficiency. This innovative fixture combines field-adjustable wattage settings (100W-320W) with selectable color temperature options (4000K/5000K/5700K), delivering customized illumination that precisely matches your application requirements while achieving industry-leading 170 lumens per watt efficacy.

Built for demanding environments, the fixture features robust IP67-rated construction with marine-grade powder coating and die-cast aluminum housing, ensuring reliable performance in wet locations and challenging industrial conditions. The integrated sensor-ready receptacle enables seamless plug-and-play connectivity with advanced motion sensors and dimming controls, maximizing energy savings while future-proofing your lighting infrastructure investment.

Engineered with cutting-edge LED technology and innovative thermal management featuring a center vent design for passive airflow, this high bay delivers consistent performance throughout its 85,000-hour rated life. With lumen outputs ranging from 25,000 to 54,000 lumens across three configurable models, the LED Tunable UFO High Bay adapts to diverse commercial applications while maintaining exceptional reliability and performance.

Key Features

• Field-Selectable Wattage Configuration – Adjust power output on-site to match exact requirements without changing fixtures
• Triple CCT Tunable Technology – Select optimal color temperature for specific tasks and visual comfort
• Integrated Sensor-Ready Architecture – Built-in receptacle supports instant connectivity with motion sensors and controls
• Superior Thermal Management – Center vent design with high-efficiency heat sink ensures optimal LED performance
• Premium Optical Performance – Frosted fire-rated polycarbonate lens delivers uniform distribution with 80 CRI
• Advanced 0-10V Dimming – Dim-to-off capability provides precise control and automation integration
• Robust Environmental Protection – IP67 ingress protection and IK08 impact resistance for demanding environments
• Universal Voltage Compatibility – Standard 120-277V with optional 277-480V for industrial applications

Certifications and Compliance

• DLC Premium 5.1 Listed – Qualifies for maximum utility rebates and incentive programs
• UL Listed – Meets stringent North American safety standards for commercial installations
• FCC Part 15 Compliant – Certified electromagnetic compatibility prevents equipment interference
• RoHS Compliant – Environmentally responsible manufacturing without hazardous substances
• CE Marked – Conforms to European health, safety, and environmental standards
• Wet Location Rated – Approved for direct water exposure in indoor and covered outdoor applications

Technical Specifications

Applications

• Manufacturing & Industrial Facilities – Production floors, assembly lines, quality control areas requiring superior illumination
• Warehouses & Distribution Centers – High-ceiling storage facilities, loading docks, and logistics operations
• Retail & Commercial Spaces – Big-box stores, showrooms, retail warehouses requiring adjustable ambiance
• Recreation & Athletic Facilities – Gymnasiums, indoor sports complexes, fitness centers with varying activity requirements
• Cold Storage & Food Processing – Temperature-controlled environments, refrigerated warehouses, processing facilities
• Exhibition Halls & Event Centers – Convention centers, trade show venues requiring flexible lighting configurations

Customization Options

Sensor & Control Integration:

• U-S-PSDMS-T 3rd Gen Plug & Play Dimming Motion Sensor – Advanced PIR technology with adjustable settings
• U-S-BLMS-T Bluetooth-Enabled Motion Sensor – Wireless configuration via smartphone app
• U-S-RC Remote Control – Convenient adjustment without ladder access

Emergency Backup Solutions:

• U-EI-HB-25-C 25W Emergency Inverter – 90-minute backup for code compliance
• U-EI-HB-40-C 40W Emergency Inverter – Extended backup for critical areas

Optical & Mounting Options:

• U-TUHB-CPL Clear Polycarbonate Lens – Maximum light output for high-ceiling applications
• U-MH-PM-HB 3/4″ Pendant Mount Adapter – Professional rigid conduit mounting
• Custom 3000K color temperature available by special order

Warranty

Every LED Tunable UFO High Bay is protected by our comprehensive 5-year limited warranty, demonstrating our commitment to quality and long-term reliability. This industry-leading coverage protects against defects in materials and workmanship under normal operating conditions, ensuring your lighting investment is fully protected.

Warranty coverage includes the LED light engine, driver components, housing construction, and all internal electronics. The warranty period begins from the date of shipment, with streamlined claim processing through our dedicated customer support team. Professional installation by qualified electricians is recommended to maintain warranty validity and ensure optimal performance.

Ordering Information

Model Selection:

• X-TUHB-150W – 100/120/150W Tunable, up to 25,000 lumens, 11.5″ diameter
• X-TUHB-240W – 150/200/240W Tunable, up to 40,000 lumens, 13.5″ diameter
• X-TUHB-320W – 200/240/320W Tunable, up to 54,000 lumens, 15.5″ diameter
