Product Overview

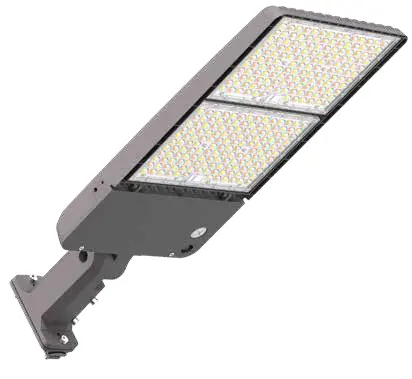

The LUMA MAX Area Light represents a breakthrough in commercial outdoor lighting technology, engineered specifically for demanding commercial and industrial environments. This high-performance LED fixture combines exceptional energy efficiency with robust construction, delivering superior illumination while significantly reducing operational costs compared to traditional lighting systems.
Built with precision die-cast aluminum housing and advanced LED technology, the LUMA MAX provides reliable, long-lasting performance in challenging outdoor conditions. The fixture’s innovative design incorporates selectable wattage and color temperature options, allowing facility managers and lighting professionals to customize illumination precisely to their specific requirements.
Key Features
Energy Efficiency Excellence
Industry-leading efficacy up to 160 lumens per watt
Maximum light output of 80,424 lumens
Significant energy savings compared to HID and fluorescent alternatives
0-10V dimming capability for additional energy optimization
Versatile Performance Configuration
Five selectable wattage options: 300W, 350W, 400W, 450W, and 500W
Three adjustable color temperatures: 3000K (warm white), 4000K (neutral white), 5000K (cool white)
Field-adjustable settings via integrated selector switches
Type III light distribution pattern for optimal coverage
Advanced Protection and Reliability
IP65 rated weatherproof enclosure
Built-in 10KV surge protection
Operating temperature range: -40°C to 50°C
Flicker-free operation with power factor >0.90
Total harmonic distortion ≤20%
Installation and Control Features
Universal mounting bracket for square and round poles
Optional screw-in photocell for automatic dusk-to-dawn operation
Zhaga-compliant sensor compatibility
Quick-connect wiring system
Certifications and Compliance
The LUMA MAX Area Light meets rigorous industry standards and regulatory requirements:
UL Listed – Ensures safety compliance for commercial installations
DLC Listed – Qualifies for utility rebates and energy efficiency programs
Model Number: SB10-24-500L-S2D5C3T3
Compliant with National Electrical Code (NEC) requirements
Suitable for wet location installations per IP65 rating
Technical Specifications
Electrical Characteristics
Input Voltage: 120-277VAC, 50/60Hz universal operation
Power Consumption: Selectable 300W/350W/400W/450W/500W
Driver: Sosen SS-240NH-E260BHBP with flicker-free operation
Dimming: 0-10V compatible for lighting control systems
Surge Protection: L/N 6KV, L/N-P 6KV built-in protection
Optical Performance
Maximum Lumens: 80,424 at 500W setting
Efficacy: Up to 160 LM/W
Color Rendering Index (CRI): >80 Ra
Color Temperature Options: 3000K/4000K/5000K field selectable
Light Distribution: Type III for roadway and area applications
Physical Construction
LED Technology: 1200 pieces Lumileds SMD2835 LEDs
Housing Material: Die-cast aluminum with bronze finish
Lens Material: T3 polycarbonate for maximum light transmission
Dimensions: 28.1″ L × 13.6″ W × 2.6″ H
Weight: 20.3 lbs (net), 23.0 lbs (gross with packaging)
Environmental Specifications
Operating Temperature: -40°C to 50°C (-40°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity Range: 10%RH to 90%RH (operating)
IP Rating: IP65 for dust and water protection
Applications
The LUMA MAX Area Light is engineered for a comprehensive range of commercial and industrial outdoor lighting applications:
Commercial Properties
Shopping center parking lots and walkways
Office building perimeters and employee parking areas
Retail store exterior lighting and security illumination
Restaurant and hospitality venue outdoor spaces
Industrial and Municipal Settings
Manufacturing facility yards and loading docks
Warehouse and distribution center exterior areas
Municipal parking lots and public spaces
Transportation hubs and transit facilities
Specialized Environments
Security-sensitive areas requiring consistent illumination
24/7 operations requiring reliable lighting performance
Energy-conscious facilities targeting LEED certification
Retrofit projects replacing outdated HID fixtures
Customization Options
Field-Adjustable Settings The LUMA MAX offers unprecedented flexibility through its field-selectable options:
Wattage Selection: Choose optimal power consumption based on specific lighting requirements
Color Temperature: Select appropriate white light characteristics for application and preference
Photocell Integration: Optional automatic on/off functionality based on ambient light levels
Sensor Compatibility: Zhaga-compliant mounting for occupancy and daylight sensors
Installation Configurations
Universal bracket system accommodates both square and round poles
Insert mounting option for internal pole installation
Multiple pole diameter compatibility
Adjustable mounting angles for optimal light placement
Warranty
Comprehensive 5-Year Warranty Coverage Beyond LED Technology stands behind the LUMA MAX with an industry-leading 5-year limited warranty, providing:
Complete fixture replacement coverage for manufacturing defects
LED component performance guarantee
Driver and electronic component protection
Professional installation support and technical assistance
The warranty reflects our confidence in the fixture’s robust construction, premium components, and rigorous quality control processes.
Ordering Information
Primary SKU: 157031
Model Designation: SB10-24-500L-S2D5C3T3
Package Details
Shipping Dimensions: 35.27″ × 17.71″ × 5.11″
Packaging: 1 piece per box
Shipping Weight: 23.0 lbs
What’s Included
LUMA MAX Area Light fixture
Universal mounting bracket with hardware
Installation and wiring instructions
Selector switch cover plug
5-year warranty documentation
Optional Accessories
Screw-in photocell for automatic operation
Zhaga-compatible sensors for advanced control
Specialized mounting adapters for unique installations
For technical support, installation guidance, or volume pricing information, contact our commercial lighting specialists. The LUMA MAX Area Light represents the optimal balance of performance, efficiency, and reliability for today’s demanding commercial lighting applications.
