Product Overview

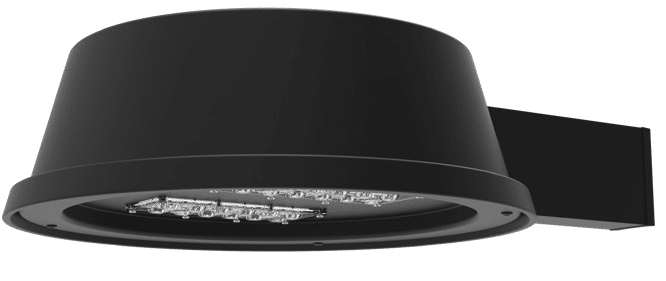

The Portland Architectural LED Luminaire represents the perfect fusion of sophisticated design and high-performance illumination for commercial and municipal applications. Proudly designed, manufactured, and assembled in the USA, this versatile fixture delivers exceptional energy efficiency with lumen outputs ranging from 3,650 to over 16,000 lumens while consuming a fraction of the energy required by traditional HID lighting systems.
Engineered to complement diverse architectural environments, the Portland series features a sleek, contemporary silhouette with a heavy-gauge spun aluminum housing and cast aluminum fitter assembly. The fixture’s robust construction and IP66/IP67 environmental ratings ensure reliable performance in demanding outdoor conditions, making it ideal for walkways, parking facilities, campus environments, and commercial exteriors where both aesthetics and durability are essential.
With efficacy ratings reaching up to 182 lumens per watt and an extraordinary rated life exceeding 200,000 hours at L70, the Portland luminaire delivers substantial long-term operational savings while minimizing maintenance requirements. The fixture’s advanced thermal management system and premium LED components work in concert to maintain consistent light output throughout its extended service life.
Key Features
Optical Performance
- Multiple distribution patterns available: Type II, Type III, Type IV, and Type V optics for precise light placement
- Clear optics system rated IP67 for superior optical clarity and weather protection
- Industry-leading efficacy up to 182 LPW for maximum energy savings
- Color rendering index of 70+ for accurate color perception
- Selectable color temperatures: 3000K (warm white), 4000K (neutral white), or 5000K (daylight)
Electrical & Controls
- Universal voltage operation: 120-277VAC standard, 480VAC high-voltage option available
- 0-10V dimming capability included as standard for seamless integration with building management systems
- 10kV surge protection standard to safeguard against electrical transients
- Optional wattage adjuster for field-configurable power settings
- Wireless control compatibility for smart city and networked lighting applications
- ANSI C136.41 compliant 7-pin receptacle option for photocell and network control integration
Construction Quality
- Heavy-gauge spun aluminum housing for superior structural integrity and corrosion resistance
- Cast aluminum 356 alloy arm and fitter assembly for exceptional durability
- Premium 3-mil powder coat finish for long-lasting aesthetic appeal
- Silicone gasket sealing system providing IP66 rated environmental protection
- Engineered thermal dissipation system for optimal LED performance and longevity
- Extended operating temperature range: -22°F to 140°F (-30°C to 60°C)
Certifications and Compliance
The Portland LED Luminaire meets rigorous industry standards and regulatory requirements:
|
Certification |
Description |
|
UL Listed |
File Number E364158 – Suitable for wet locations |
|
BABA Compliant |
Build America, Buy America Act compliant for federally funded projects |
|
BAA Compliant |
Buy American Act compliant for government procurement |
|
IP66 / IP67 |
Ingress protection against dust and water intrusion |
|
Made in USA |
Designed, manufactured, and assembled in the United States |
Technical Specifications
Performance Data
|
Model |
Input W |
Lumens |
LPW |
CRI |
L70 Life |
HID Equiv. |
|
PRLD-20CLED |
25W |
3,650 |
182 |
70+ |
>200,000 hrs |
70W MH |
|
PRLD-40CLED |
45W |
6,492 |
162 |
70+ |
>200,000 hrs |
150W HPS |
|
PRLD-50CLED |
55W |
7,780 |
155 |
70+ |
>200,000 hrs |
150W MH |
|
PRLD-60CLED |
65W |
8,539 |
142 |
70+ |
>200,000 hrs |
175W PSMH |
|
PRLD-70CLED |
75W |
9,986 |
142 |
70+ |
>200,000 hrs |
250W MH |
|
PRLD-80CLED |
85W |
12,984 |
155 |
70+ |
>200,000 hrs |
250W HPS |
|
PRLD-120CLED |
125W |
16,012 |
145 |
70+ |
>200,000 hrs |
400W PS |
Physical Dimensions
|
Configuration |
A (Width) |
B (Depth) |
C (Height) |
EPA |
Weight |
|
Post Top (PRLN-PT) |
18″ |
26-3/8″ |
— |
1.15 |
20 lbs |
|
Extruded Arm (PRLN-EAM) |
18″ |
6″ |
26-1/2″ |
0.95 |
12 lbs |
|
Wall Mount (PRLN-WM) |
18″ |
6″ |
27-3/8″ |
0.95 |
12 lbs |
|
Catenary (PRLN-CNTRY) |
18″ |
8-1/8″ |
— |
0.64 |
10 lbs |
|
Pendant Mount (PRLN-PM) |
18″ |
6″ |
— |
0.79 |
10 lbs |
Applications
The Portland LED Architectural Luminaire is engineered for versatile deployment across numerous commercial, municipal, and institutional environments:
- Residential Communities: HOA common areas, apartment complexes, condominium entrances, and gated community perimeters
- Pedestrian Walkways: Sidewalks, nature trails, bike paths, promenades, and boardwalks
- Educational Campuses: Universities, colleges, K-12 schools, and athletic facilities
- Commercial Properties: Office parks, retail centers, shopping plazas, and mixed-use developments
- Industrial Facilities: Manufacturing plants, warehouse districts, distribution centers, and logistics hubs
- Parking Facilities: Surface lots, parking structures, transit stations, and park-and-ride locations
- Recreational Spaces: Public parks, sports complexes, golf courses, community centers, and amphitheaters
- Municipal Infrastructure: Downtown streetscapes, public squares, transit corridors, and civic buildings
- Healthcare Facilities: Hospital grounds, medical office complexes, and assisted living communities
Customization Options
Mounting Configurations
- Post Top (T3R): Standard 3″ O.D. tenon mount for traditional pole installations
- Extruded Arm Mount: Available in 6″, 8″, and 10″ arm lengths for 4″, 5″, or 6″ round/square poles
- Wall Mount (WM): Direct surface mounting for building facades and vertical structures
- Catenary (CNTRY): Cable-suspended installation for overhead pathway lighting
- Pendant Mount: Available with 12″, 24″, or 36″ stem lengths for ceiling-hung applications
Multi-Head Configurations: Single (SGL), Double 180° (D180), Double 90°, Triple 90° (T90), Triple 120° (T120), and Quad (QD) arrangements available.
Finish Options
- Black (BLK) – Classic architectural finish
- White (WHT) – Clean, contemporary appearance
- Silver (SLR) – Modern metallic aesthetic
- Bronze (BRZ) – Traditional warm tone
- Graphite (GPH) – Sophisticated dark gray
- Custom (CST) – RAL color matching available upon request
Control Options
- Motion Sensor (OCC): FSP-211 PIR sensor with high/low dimming, coverage up to 100′ diameter at 40′ mounting height
- Button Photocell (B-PC): Dusk-to-dawn automatic switching
- 7-Pin Receptacle (7pin&Shrng): ANSI C136.41 compliant receptacle with shorting cap for future control integration
- 7-Pin Photocell (7pinPC): Twist-lock photocell for networked lighting control systems
- Wireless Controls (WC): Smart city and IoT-ready wireless control compatibility
- Wattage Adjuster (WA): Field-selectable power settings for flexible energy management
- House Side Shield (HSS): Internal shield to eliminate backlight and reduce light trespass
Warranty
Crystal Lighting Corp. stands behind the Portland LED Luminaire with comprehensive warranty coverage:
- LED modules and drivers warranted against defects in materials and workmanship
- Powder coat finish covered against premature degradation under normal use conditions
- Motion sensor accessories (FSP-211) include separate 5-year manufacturer warranty
Ordering Information
Configure your Portland luminaire using the modular part number system:
Example: PRLD-20CLED-T5-50K-MV-BRZ-T3R-OCC
- Product Family: PRLD (Portland)
- Wattage: 20CLED, 40CLED, 50CLED, 60CLED, 70CLED, 80CLED, or 120CLED
- Distribution: T2 (Type II), T3 (Type III), T4 (Type IV), or T5 (Type V)
- Color Temperature: 30K (3000K), 40K (4000K), or 50K (5000K)
- Voltage: MV (120-277V) or HV (480V)
- Finish: BLK, WHT, SLR, BRZ, GPH, or CST
- Mounting: T3R, 6EAM, 8EAM, 10EAM, WM, CNTRY, 12″PM, 24″PM, or 36″PM
- Options: OCC, B-PC, WC, HSS, WA, 7pin&Shrng, 7pinPC, BAA, BABA
