What Are LED Vapor Tight & Jelly Jar Fixtures?
LED vapor tight and jelly jar luminaires are rugged sealed lighting solutions designed to provide consistent illumination in environments where moisture, dust, corrosive atmospheres, or airborne contaminants are present. These fixtures combine durable housing, gasketing, and optical protection to guard against water ingress, particulates, and mechanical impact. While the terms “vapor-tight” and “jelly jar” are often used interchangeably, jelly jars typically include protective guards or cages and round lens profiles, whereas vapor-tight fixtures may encompass strip or linear sealed forms. Both types are well suited for industrial and commercial installations that demand durability and reliability in challenging conditions.
Harsh and moisture-exposed locations like these are core elements of resilient industrial lighting systems.
LED Vapor Tight & Jelly Jar Fixtures
In facilities with both open work zones and exposed corridors, vapor-tight or jelly jar lighting is often combined with low bay and area lighting strategies to ensure seamless and durable illumination across spaces with varying environmental demands.

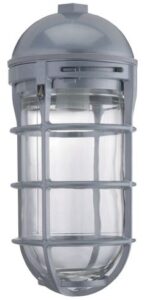

LED Vapor Proof Jelly Jars Wall Mount
Brand: IR Lighting
wall mount LED vapor proof fixture, 10 3/4″ x 5 3/8″, 1150 lumens @ 26W; Prices start at $300
LED Jelly Jars
Brand: Ledsion
ceiling, wall mount High-quality tempered glass; 160° beam angle; Silver powder-coated finish; Tempered Glass lens; Steel wrap cover; IP65; UL cUL, DLC; available in 21W; Prices start at $200.
When Should Vapor Tight & Jelly Jar Lighting Be Used?
Vapor tight and jelly jar LED lighting is specified in environments where interior or exterior spaces are exposed to high humidity, dust accumulation, washdown activities, or airborne chemicals. Typical use cases include:
• Industrial processing zones with particulate discharge
• Mechanical rooms and equipment bays
• Parking garages and service corridors
• Exterior canopies and perimeter walkways
• Cold storage and refrigerated zones
• Washdown or damp environments in food/beverage sites
In these settings, traditional fixtures with open optical assemblies may degrade quickly or pose safety concerns. The sealed construction of vapor-tight and jelly jar luminaires ensures long-term performance and minimal maintenance in both wet and dry conditions.
For extended runs in damp or washdown environments, consider our LED Vapor Tight Linear Lighting systems designed for uniform, sealed illumination.
Core Specifications & Performance Characteristics
When evaluating LED vapor-tight or jelly jar lighting, key performance attributes include:
✔ Ingress protection (IP) ratings: typically IP65, IP66, or higher
✔ Impact resistance (IK ratings): guards against knocks & physical contact
✔ Lumen output: suited to mid-level coverage (often 2,000 to 12,000+ lumens)
✔ Optical control: diffused lens profiles for even distribution
✔ Housing materials: corrosion-resistant metals or thermoplastics
✔ LED reliability: drivers and LEDs rated for extended duty cycles
These features combine to provide dependable illumination in both indoor and outdoor wet-location applications, reducing maintenance cycles and improving overall lighting quality compared to legacy HID or fluorescent options.
Industrial & Commercial Applications
LED vapor-tight and jelly jar fixtures are widely used in commercial and industrial zones where environmental exposure is a concern. Common installations include:
• Manufacturing facilities with airborne dust or particulate
• Exterior canopies at fuel stations and loading docks
• Service corridors and stairwells
• Cold storage aisles and refrigeration perimeters
• Parking structures with moisture exposure
• Equipment rooms and tunnels
Their sealed design makes them ideal for areas that require robust protection against moisture and contaminants, while delivering uniform illumination that supports safe operation and wayfinding.
Planning & Selection Considerations
Selecting the right vapor-tight or jelly jar lighting involves assessing:
✔ Mounting height and spacing for uniform coverage
✔ Required ingress protection depending on moisture and particle exposure
✔ Corrosion resistance for chemical or salt environments
✔ Diffusion and glare control for pedestrian comfort
✔ Compatibility with control systems (dimming, occupancy sensing)
In environments with frequent washdown or temperature fluctuation, choosing fixtures with higher IP and IK ratings enhances long-term reliability and reduces total cost of ownership.
Food processing and regulated clean environments may require NSF-Certified LED Lighting to meet hygiene and material safety standards.
Comparison Table — Vapor-Tight/Jelly Jar vs Low Bay vs Linear Strip
| Attribute / Use | Vapor-Tight / Jelly Jar | Low Bay Lighting | Linear Strip Lights |
|---|---|---|---|
| Typical Environments | Damp, dusty, wet locations | Interior low ceilings | Corridors & aisles |
| Mounting Height | 8–25 ft | 8–20 ft | 8–25 ft |
| Ingress Protection | High (IP65, IP66+) | Moderate | Moderate |
| Optical Focus | Diffuse / near-field | Mid-range distribution | Continuous distribution |
| Best Use Cases | Moisture & dust exposure | Open low interior spaces | Linear work zones |
| Construction Emphasis | Sealing & durability | Efficiency & visibility | Uniform coverage |
Technical Standards & Compliance Resources
Selecting LED vapor-tight and jelly jar lighting requires awareness of applicable electrical, safety, and environmental standards. Important considerations include:
✔ UL/ETL listings for wet/damp locations
✔ Ingress protection ratings (IP) for dust and moisture
✔ Impact resistance (IK) for hostile environments
✔ Code compliance for commercial and industrial installations
Ensuring that vapor-tight fixtures meet the right listing and rating criteria supports both safety and long-term performance. For more detailed context on matching lighting formats to space requirements and environmental conditions, see our broader resources on lighting classification and site design.
LED Vapor Tight Jelly Jar Planning & Selection
How do I choose the right LED vapor tight jelly jar light?
Start with the installation location, required light output, mounting configuration, voltage, available fixture space, and environmental conditions.
Then evaluate the fixture’s IP or wet-location rating, housing and lens construction, operating temperature range, mounting options, lumen output, color temperature, and any exposure to moisture, dust, cleaning procedures, or corrosive conditions.
When should I use a jelly jar fixture instead of a larger vapor-tight linear fixture?
Jelly jar fixtures are well suited to compact spaces and localized illumination where a larger linear fixture is unnecessary or difficult to install.
They are commonly used in stairwells, utility rooms, mechanical spaces, maintenance corridors, equipment areas, and other locations requiring durable illumination from a relatively compact fixture.
For larger work areas, production spaces, corridors, or locations requiring broader continuous illumination, vapor-tight linear fixtures may provide better coverage.
What IP rating should I look for in a vapor-tight jelly jar light?
The appropriate IP rating depends on the amount of dust, moisture, water, and cleaning exposure present in the installation.
Rather than selecting a fixture simply because it is described as vapor tight, verify that its specific environmental ratings are appropriate for the conditions where it will be installed.
What is the difference between a vapor-tight jelly jar and an explosion-proof jelly jar?
Vapor-tight fixtures are designed to resist moisture, dust, and other environmental contaminants. Explosion-proof fixtures are specifically certified for classified hazardous locations where flammable gases, vapors, combustible dusts, or other hazardous materials may be present.
A vapor-tight rating does not make a fixture explosion-proof. Hazardous locations require fixtures carrying the appropriate certification for the specific classification.
What information should I provide when requesting LED vapor tight jelly jar lights?
Provide the application, fixture quantity, voltage, mounting method, required light output, ambient temperature, and details about exposure to moisture, dust, washdown, chemicals, or other environmental conditions.
Photographs of existing fixtures and installation locations can also help determine the appropriate fixture configuration and environmental protection.
Built for Tough Environments. Designed for Long-Term Performance
LED vapor tight jelly jar lights provide compact, durable illumination for stairwells, utility rooms, mechanical spaces, maintenance corridors, exterior locations, and other environments exposed to moisture, dust, and contaminants.
Selecting the right fixture requires matching its environmental protection, light output, mounting configuration, and operating characteristics to the conditions of the installation.
👉 Call 1-844-533-7767 for help selecting LED vapor tight jelly jar lights for your commercial or industrial application.
FAQs for LED Vapor Tight Jelly Jar Lights
What are LED vapor tight jelly jar lights used for?
LED vapor tight jelly jar lights are compact industrial fixtures designed for damp, dusty, or washdown environments. They are commonly installed in stairwells, utility rooms, maintenance corridors, and mechanical spaces requiring durable, moisture-resistant lighting.
What does vapor tight mean?
Vapor-tight fixtures are available with different environmental ratings depending on their construction. Verify the fixture’s specific IP, wet-location, or other applicable ratings against the conditions of the installation.
Can LED jelly jar lights be used outdoors?
Yes. Many vapor tight jelly jar fixtures are suitable for outdoor use when properly rated for wet locations and environmental exposure. Always confirm IP rating and certification before installation.
Are LED vapor tight jelly jars energy efficient?
Yes. LED jelly jar fixtures consume significantly less energy than incandescent or CFL alternatives while delivering improved lumen output and longer service life.
How long do LED vapor tight fixtures last?
Industrial-grade LED vapor tight jelly jar lights typically offer 50,000+ hour lifespans, reducing maintenance and replacement frequency.
Where are jelly jar lights typically installed?
Common applications include:
-
Stairwells
-
Parking garages
-
Mechanical rooms
-
Utility corridors
-
Maintenance closets
-
Exterior building perimeters
