From $19
Product Overview

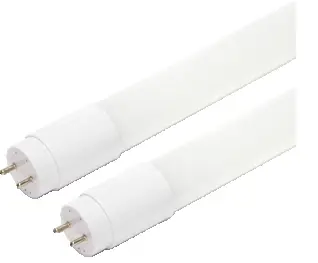

Introducing the LEDSION T8 Hybrid NANO TUBE, a state-of-the-art LED lighting solution designed for commercial and institutional environments. This innovative LED tube combines cutting-edge nano technology with versatile operational capabilities, offering superior efficiency and durability. Available in 12W and 15W models, these LED T8 tubes are engineered to replace traditional 30-60W fluorescent tubes, providing significant energy savings without compromising on light quality or performance.
Key Features
– Hybrid Functionality: Operates with or without ballast for maximum installation flexibility
– Nano Polycarbonate Construction: Offers superior thermal conductivity and durability
– High Efficiency: Achieves an impressive 150 lumens per watt
– Wide Compatibility: Works with most North American instant start electronic ballasts
– Broad Beam Angle: 300-degree light distribution for comprehensive coverage
– Thermal Stability: Maintains shape and performance even under prolonged high-temperature operation
– Impact Resistant: Thermoplastic nano polycarbonate design protects against accidental breakage
– Color Stability: Prevents discoloration over time, maintaining consistent light quality
– Long Lifespan: Projected lumen maintenance of 91% at 25,000 hours and 80% at 50,000 hours
Certifications and Compliance
– UL Listed: Meets stringent safety standards for electrical devices
– cUL Certified: Complies with Canadian safety requirements
– DLC Listed: Qualifies for energy efficiency incentives and rebates
Technical Specifications
– Models:
– LST812WABV1-YYK (12W)
– LST815WABV1-YYK (15W)
– Lumen Output:
– 12W: 1800 lumens
– 15W: 2250 lumens
– Efficiency: 150 lumens per watt
– Color Rendering Index (CRI): >80 Ra
– Color Temperature Options: 4000K, 4500K, 5000K
– Input Voltage: 100-277V (UL Driver)
– Beam Angle: 300 degrees
– Operating Temperature: -20°C to +40°C
– Maximum Junction Temperature: <75°C
– Lamp Efficiency: ≥90%
– Waterproof Rating: IP20
– Base Type: G13
– LED Type: SMD 2835
Dimensions:
– Length (A): 1213±1.0 mm
– Tube Length (B): 1198±1.0 mm
Applications
Ideal for a wide range of indoor commercial and institutional settings, including:
– Office buildings and corporate environments
– Manufacturing facilities and warehouses
– Healthcare institutions and hospitals
– Educational facilities and schools
– Retail spaces and shopping centers
– Government buildings and public institutions
– Any indoor area requiring efficient, high-quality lighting
Customization Options
– Wattage Selection: Choose between 12W and 15W models to suit your specific energy and lighting requirements
– Color Temperature: Select from 4000K, 4500K, or 5000K to create the desired ambiance
– Connector Color: White end cap available (specify with ‘T’ in order code)
– Dimming: Non-dimming version available (specify with ‘N’ in order code)
Warranty
Comes with a 3-year warranty.
Ordering Information
When placing an order, use the following format:
LST8[Wattage]WABV1-[Color Temperature]K-[Dimming]-[Connector]
Example: LST812WABV1-40K-N-T
Where:
– Wattage: 12W or 15W
– Color Temperature: 40K (4000K), 45K (4500K), or 50K (5000K)
– Dimming: N (not dimming)
– Connector: T (white end cap)
Installation Notes
– Compatible with most North American instant start electronic ballasts
– Can be installed with or without ballast for maximum flexibility
– Professional installation recommended
– Follow local electrical codes and regulations during installation
Additional Information
– Aluminum PCB for improved heat dissipation
– Nano PC cover for enhanced durability and light transmission
– Projected lumen maintenance based on 10,000 hours of LED testing (per IESNA LM-80-08 and TM-21-11)
By choosing the LEDSION T8 Hybrid NANO TUBE, you’re investing in a cutting-edge lighting solution that offers unparalleled efficiency, durability, and flexibility. Whether you’re upgrading existing fixtures or outfitting a new space, this innovative LED tube is engineered to meet and exceed your commercial lighting expectations while providing significant energy savings and long-term performance.
