From $160
Product Overview

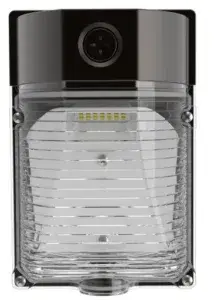

The ML-WPA-26W-50K-P LED Mini Wall Pack is a compact, high-performance exterior lighting solution designed for commercial and industrial environments. This sleek fixture combines advanced LED technology with a space-saving design, offering powerful illumination without compromising aesthetics. Engineered for durability and efficiency, this mini wall pack is an excellent choice for upgrading traditional lighting systems in various outdoor settings.
Key Features
– Slim rectangular profile for minimal visual impact
– High-efficiency Lumileds 2835 LED chips
– Adjustable color temperature options
– Robust die-cast aluminum housing with bronze powder coat finish
– Wide 120° beam angle for comprehensive coverage
– Integrated photocell for automatic dusk-to-dawn operation
– 0-10V dimming functionality for customized light levels
– Simplified wall mounting with rear plate design
– Wet location rated for outdoor use
Certifications and Compliance
– UL Listed
– cUL Certified
– DLC Qualified
– Adheres to relevant safety and performance standards
Technical Specifications
– Power Consumption: 26W
– Luminous Flux: 3,588 lumens
– Efficacy: 138 lumens per watt
– Color Rendering Index (CRI): >80
– Selectable Color Temperature: 3000K, 4000K, or 5000K
– Operating Voltage: 120-277V AC
– Power Factor: >0.9
– Light Distribution: 120° beam angle
– Operational Temperature Range: -20°C to 45°C
– Expected Lifespan: 50,000 hours
– Replaces 50-90W metal halide or high-pressure sodium fixtures
Applications
– Warehouse exteriors
– Manufacturing facilities
– Parking area illumination
– Sports venue perimeters
– Retail center walkways
– Distribution center security lighting
– Automotive dealership lots
– Building entrance and exit points
Customization Options
– Color Temperature: Choose from 3000K (warm white), 4000K (neutral white), or 5000K (cool white)
– Photocell: Built-in option for automatic light control
– Dimming: Compatible with 0-10V dimming systems
Warranty
Comprehensive 5-year limited warranty on all components
Ordering Information
Use this format to specify your LED Mini Wall Pack:
ML-WPA-26W-[Color Temperature]-[Options]
Example: ML-WPA-26W-50K-P
– 26W: Fixed wattage
– 50K: 5000K color temperature
– P: Includes photocell
Installation Guidelines
– Designed for straightforward wall mounting
– Professional installation recommended
– Ensure proper electrical grounding
– Use waterproof sealant around mounting points
– Consult provided installation manual for step-by-step instructions
Dimensions: 8.22″ x 5.55″ x 3.15″
For additional information, technical support, or to place an order, please contact our commercial lighting team.
