From $200
Product Overview

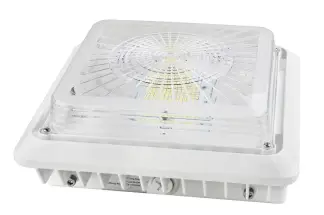

The LEDSION V2 Under Canopy LED Light (LS-NCP55WV2) is a high-performance, energy-efficient lighting solution designed for commercial and industrial applications. With its robust construction and versatile mounting options, this LED canopy light is ideal for illuminating indoor parking lots, canopies, and other areas requiring reliable, long-lasting lighting.
Key Features
– Traditional square design with modern LED technology
– IP65 rated for protection against dust and water
– Corrosion and rust-proof construction
– High lumen output with 160° beam angle for wide area coverage
– Flexible mounting options: ceiling mount or 3/4″ thread conduit mount
– Long lifespan of 50,000 hours, reducing maintenance costs
– Energy-efficient alternative to traditional metal halide or high-pressure sodium lamps
Certifications and Compliance
– UL Listed
– cUL Listed
– DLC Qualified
Technical Specifications
– Wattage: 55W
– Lumen Output: 7,150 lumens
– Efficacy: 130 lm/W
– Color Temperature: 5000K
– CRI: >72
– Input Voltage: 120-277V AC
– Power Factor: 0.9
– Beam Angle: 160°
– Operating Temperature: -20°C to 45°C
– Junction Temperature: <75°C
– Lamp Efficiency: ≥90%
– Equivalent to 100-150W MH/HPS fixtures
Applications
– Indoor parking lots
– Canopies
– Warehouses
– Industrial facilities
– Commercial buildings
– Loading docks
– Covered walkways
Customization Options
– Color temperature: 5000K (standard)
Warranty
5-year limited warranty
Ordering Information
Use the following format to specify your desired configuration:
LS-NCP55WV2-[CCT]
Example: LS-NCP55WV2-50K
– CCT: 50K (5000K)
Additional Information
– Heavy die-cast aluminum alloy housing with white powder-coated finish
– Clear PC cover for optimal light transmission
– Easy installation with included mounting hardware
– Two installation methods available: direct ceiling mount or conduit mount
– Suitable for wet locations
– Driver box design allows for easy access and maintenance
– Replaces traditional 100-150W metal halide or high-pressure sodium fixtures
