Nebulite-Linear-Strip-Light-LNS

From $165

Product Overview

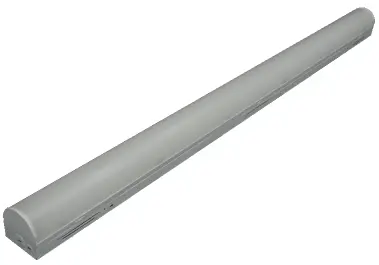

The LNS-DUO LINEAR STRIP G2 is a versatile, selectable LED strip light designed for commercial and industrial applications. Its compact size and adaptable features make it an ideal choice for various lighting needs in size-restricted architectural settings.



Key Features

– Field-selectable output powers (3 options)

– Field-selectable color temperatures (3 options)

– Slim profile for space-restricted applications

– High efficacy up to 154.9 lm/W

– Long lifespan of over 60,000 hours (L70)

– 0-10V dimming capability

– Available in 4ft and 8ft lengths



Certifications and Compliance

– ETL Listed

– DLC Certified

– CE Certified

– RoHS Compliant



Technical Specifications

– Input Voltage: 120-277 VAC

– Color Rendering Index (CRI): 80+

– Color Temperature Options: 3500K, 4000K, 5000K

– Power Factor: >0.95

– Total Harmonic Distortion (THD): <20%

– Housing: Sheet Metal

– Lens: Polycarbonate

– Operating Temperature Range: -20°C to 50°C

– Efficacy Range: 128.4 – 154.9 lm/W (varies by model and settings)

Applications

– Commercial spaces

– Industrial areas

– Retail environments

– Storage and utility areas

– Coves and display cases

– Task and general area lighting

– Educational facilities

– Healthcare facilities



Customization Options

– Wattage Selection:

  – 4ft model: 25W/30W/40W

  – 8ft model: 55W/60W/65W

– Color Temperature Selection: 3500K, 4000K, 5000K

– Lens Type: Frosted (standard)

– Mounting Options: Surface mount, suspension

– Control Options: Various sensor and control accessories available



Warranty

5-year limited warranty



Ordering Information

Model Number Format: LNS-[Length]-[Wattage]-[CCT]-[Lens]-[Options]-G2

Example: LNS-4FT-25-T1-F-G2

– Length: 4FT or 8FT

– Wattage:

  – 25 (25W/30W/40W selectable) for 4ft

  – 55 (55W/60W/65W selectable) for 8ft

– CCT: T1 (3500K/4000K/5000K selectable)

– Lens: F (Frosted)

– Options: Various control and emergency backup options available (e.g., SW for microwave motion sensor)

– G2: Second Generation



Additional Information

– Lumen Output:

  – 4ft model: 3,575 – 5,931 lumens (varies by wattage and CCT)

  – 8ft model: 7,860 – 9,729 lumens (varies by wattage and CCT)

– Accessories: Wire guards, V-hooks, suspension cable kits, and electrical connector kits available

– Control Options: Compatible with various control systems including stand-alone, local area, and luminaire level lighting controls.
