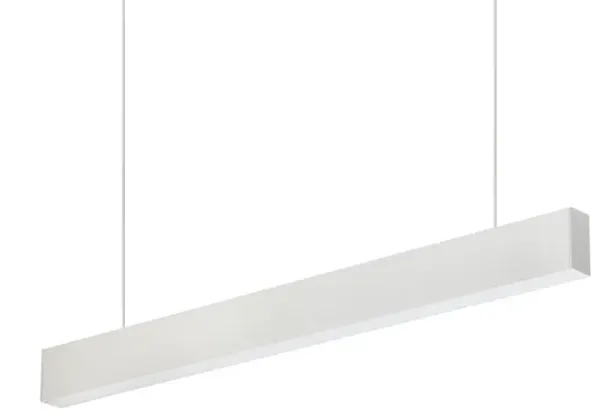

LPL - LED Pendant Fixture

From $150

Product Overview

The NB-LPL LED Linear Pendant Light is a versatile lighting solution suitable for both commercial and residential applications. Its unique up and down lighting design, along with selectable color temperatures, makes it stand out in the market. The LED linear fixture is constructed of extruded aluminum with a snap-in polycarbonate diffuser for glare reduction.



Key Features

– Up and down lighting design

– Field-selectable CCT (3500K / 4000K / 5000K)

– Six shape corners for versatile installation options

– Extruded aluminum housing

– Snap-in polycarbonate diffuser for glare reduction

– 0-10V Dimming capability

– 12 Volt AUX

– 90 Minutes Emergency Backup option



Certifications and Compliance

– DLC Listed

– ETL Certified

– RoHS Compliant

– CE Certified

– California Title 20 Compliant



Technical Specifications

– Input Voltage: 100-277V

– Input Frequency: 50/60 Hz

– Rated Wattage: 50W (4FT model)

– Efficacy: 115 lm/W

– Color Rendering Index (CRI): >80

– Color Temperature Options: 3500K, 4000K, 5000K (selectable)

– Rated Life (L70): 50,000 hours

– IP Rating: IP20

– Power Factor: >0.9

– Operating Temperature Range: -22°F to 122°F (-30°C to 50°C)

– LED Light Source: SMD 3030

– Dimensions (4FT model): 45.87″ x 1.97″ x 3.94″ (L x W x H)

Applications

– Office spaces

– Retail environments

– Educational facilities

– Healthcare facilities

– Hospitality settings

– Residential spaces



Customization Options

– Color Temperature: Field-selectable 3500K, 4000K, 5000K

– Finish Colors: White (standard), Black, Silver (custom finishes available)

– Mounting: Suspended mount



Warranty

5-year limited warranty

Ordering Information

Model Number Format: NB-LPL-[Wattage]-[CCT]-[Voltage]-[Optics]-[Finish]

Example: NB-LPL-50W-35-V-T5-BLANK

– Wattage: 50W

– CCT: 35 (3500K), 40 (4000K), 50 (5000K)

– Voltage: V (100-277V)

– Optics: T5

– Finish: BLANK (White), BLK (Black), SIL (Silver)



Additional Information

– Lumen Output: 5750lm (based on 5000K)

– Beam Angle: Not specified in the document

– Not linkable

– Custom finish colors available (contact sales team for turnaround time and pricing)
