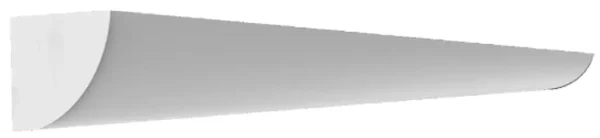

DUO Stairwell LED Curved Fixture

From $200

Product Overview

The LSC DUO Curved Stairwell fixture is a versatile LED lighting solution designed for stairwells and passageways in commercial and industrial applications. Available in 2′ and 4′ lengths, this commercial lighting fixture offers selectable wattage and color temperature settings, providing flexibility and efficiency for various lighting needs.


Key Features

– Selectable wattage and CCT (Color Correlated Temperature) settings

– Curved design for ceiling-to-wall installations

– High-performance components

– Optional concealed motion sensor

– Emergency battery backup available

– 0-10V dimming (0% to 100%)

– Die-cast aluminum and sheet metal housing

– Frosted or clear lens options


Certifications and Compliance

– DLC (DesignLights Consortium) listed

– cULus listed

– RoHS compliant


Technical Specifications

– Input Voltage: 100-277 VAC

– Wattage Options:

  – 2ft: 10W, 14W, 20W, 30W

  – 4ft: 12W, 18W, 25W, 40W

– CCT Options: 3000K, 4000K, 5000K (Switchable)

– CRI: 80+

– Efficacy: Up to 142.7 LPW (lumens per watt)

– L70 Lifetime: 216,000 hours (Calculated), 360,000 hours (Reported)

– Operating Temperature: -25°C to 40°C

– IP Rating: IP20

– Power Cable: 4′ – 18/3 SO cord



– Stairwells and hallways

– Office and meeting spaces

– Educational facilities

– Industrial and distribution centers

– Hospital and healthcare facilities


Customization Options

– Length: 2ft or 4ft

– Wattage: Selectable (see Technical Specifications)

– CCT: Selectable 3000K/4000K/5000K

– Lens: Frosted or Clear

– Control Options: Various sensors and controllers available (LLLC, LALC, SAFC)



Industry-leading 10-year limited warranty


Ordering Information

Order Format Example: LSC-4FT-40-T1F-SL

– Series: LSC

– Length: 2FT or 4FT

– Wattage: 30 (2FT) or 40 (4FT)

– Selectable CCT: T1 (3000K/4000K/5000K)

– Lens: F (Frosted) or C (Clear)

– Options: See product documentation for additional options
